Product Details
＋

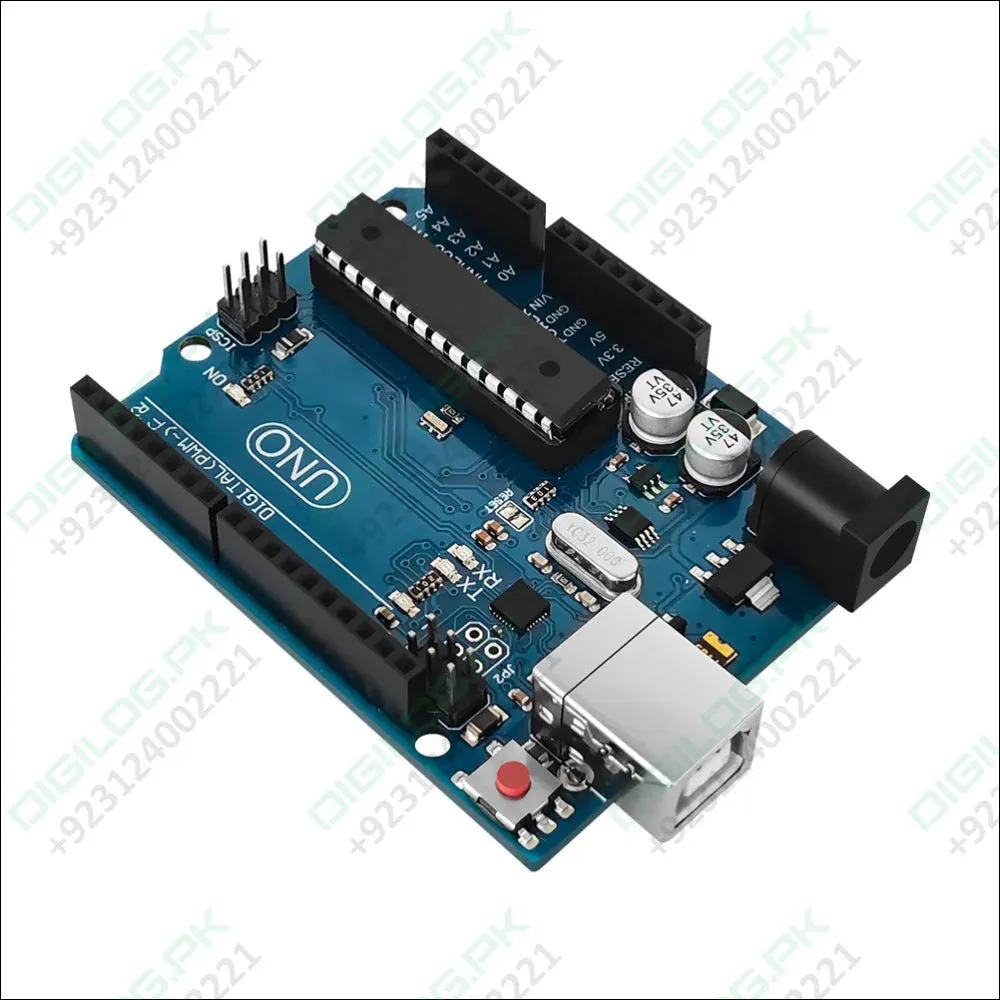

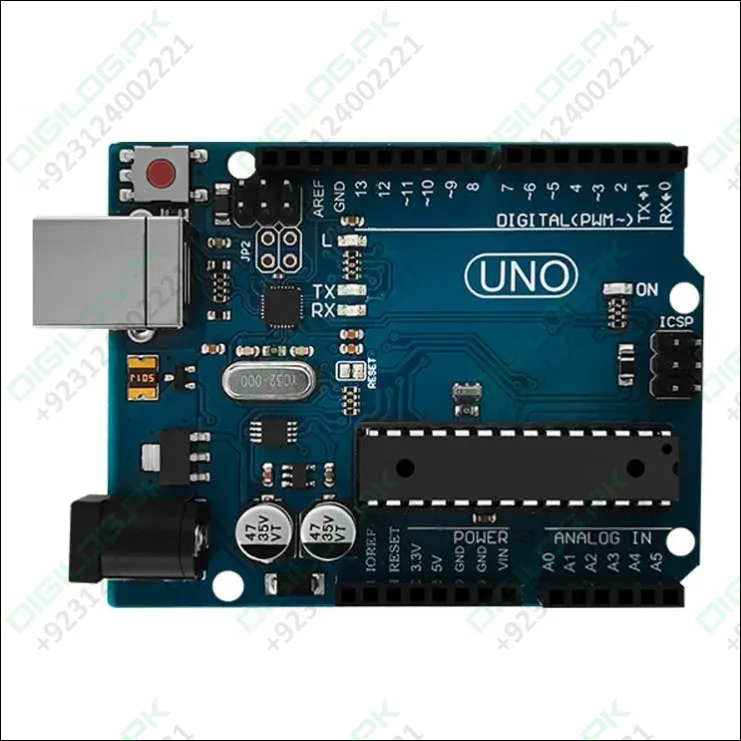

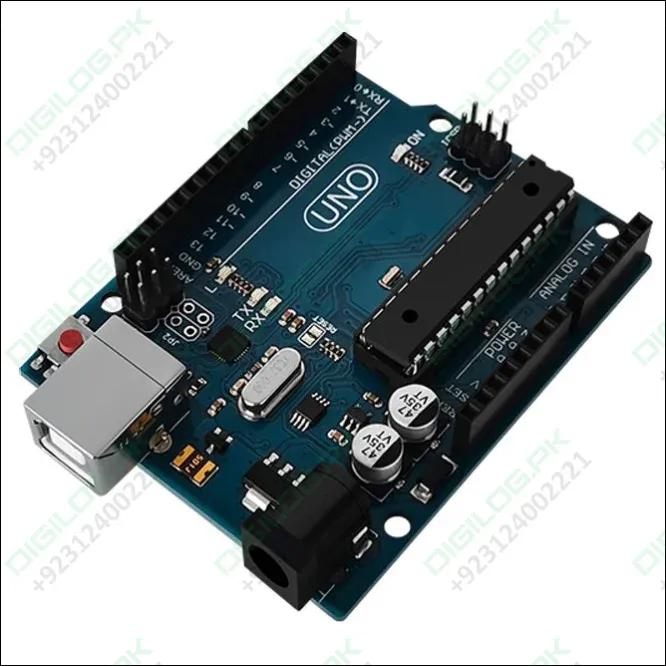

The Arduino Uno R3 with Cable is a microcontroller board based on the ATmega328 (). It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Power Specifications:
- Operating Voltage (VDC): 5
- Input Voltage (Recommended): 7-12V
- Input Voltage (Limit): 6-20V
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- DC Current per I/O Pin (mA): 40
- DC Current for 3.3V Pin (mA): 50
- Clock Speed: 16 MHz
- SRAM: 2 KB
- EEPROM: 1 KB (ATmega328)
- Flash Memory: 32 KB
- On Board LEDs: On/Off, L (PIN 13), TX, RX
- Dimensions (mm): 75 x 54 x 12
- Weight (gm): 28 (without cable), 54 (with cable)
- Shipping Weight: 0.08 kg
- Shipping Dimensions: 9 × 6 × 4 cm
EAGLE FILES:
SCHEMATIC:

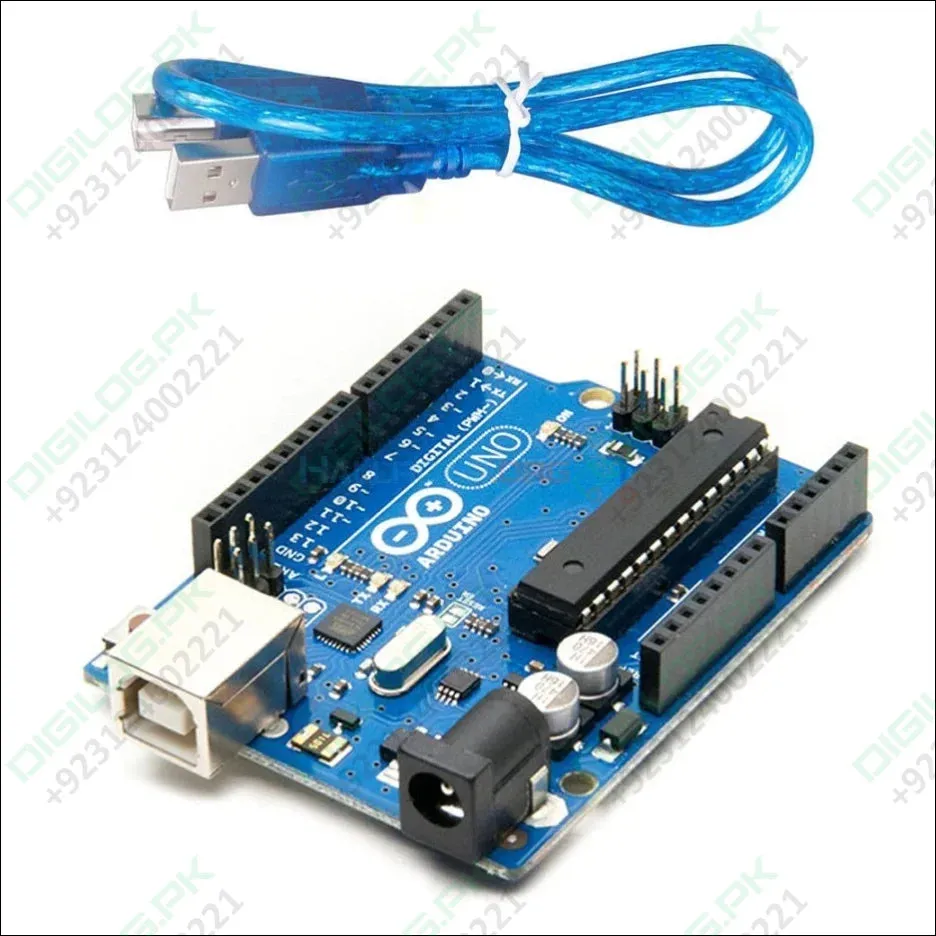

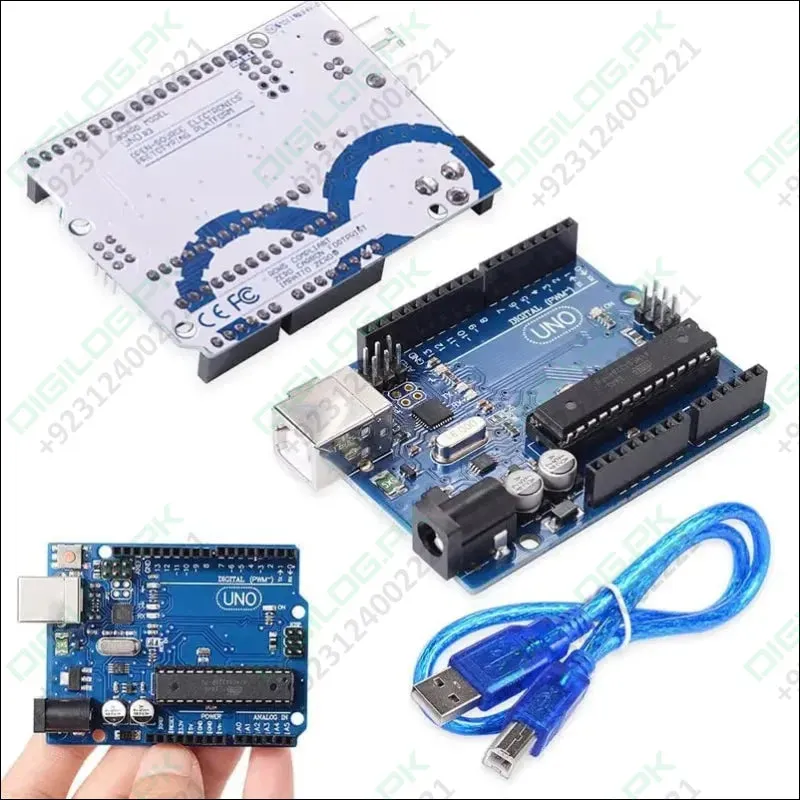

Package Includes :
- 1 x Arduino Uno R3

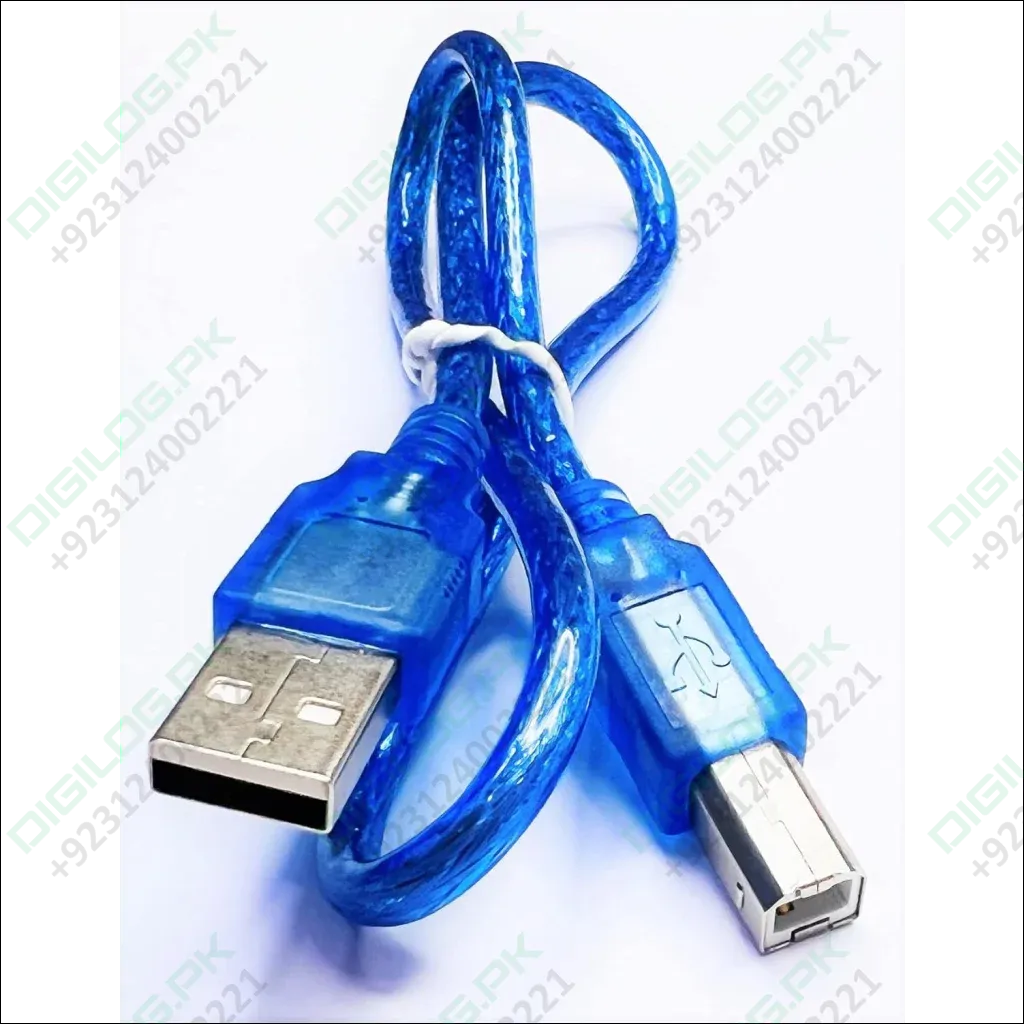

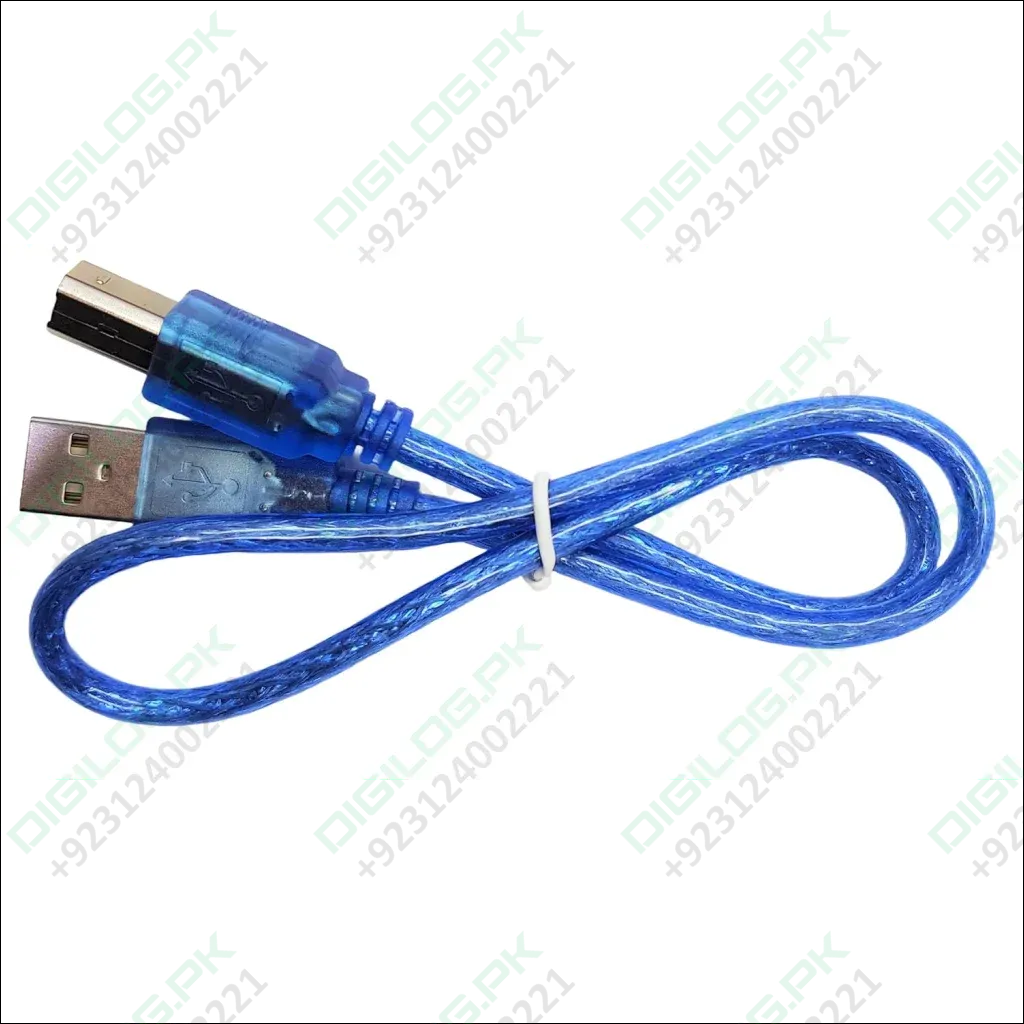

- 1 x USB Cable
