The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature.

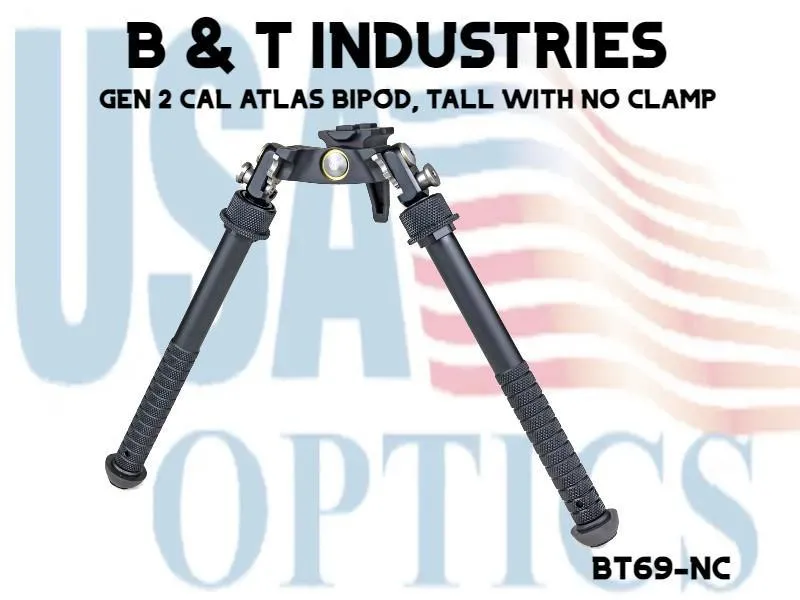

The BT69-NC Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount to include the ADM-170-S, ARMS 17S, TRAMP from Badger Ordnance, LT271 or any ARCA dovetail mount with the same hole pattern. The BT69-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK Adapter.

It is comprised of 6061-T6 aluminum, except the inner legs which are made from 7075-T6 aluminum, Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only. We chose to support a legend in the shooting sports by using the original KMW “Pod-Loc.”

• Height Range - 6 – 12.3” (8.1” at 90°)
• Preloaded Cant - 63 degrees
• Position Button - 0.5″ diameter
• 5 leg positions - 0, 45, 90, 135 & 180°
• Non-Rotating Legs - outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight - 14.4 ounces
• Footprint - 9.25-16.5”
