Product Details
＋
Description

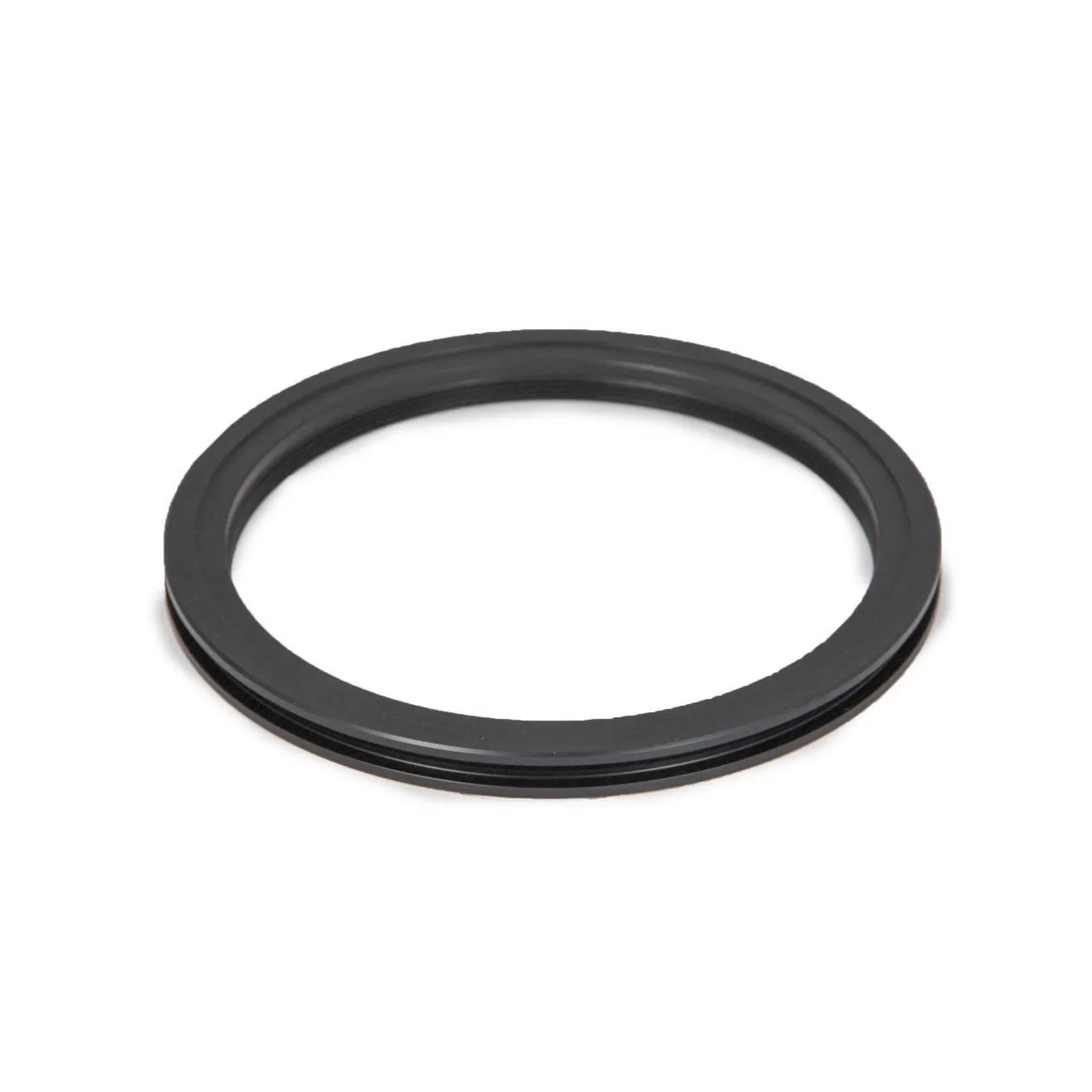

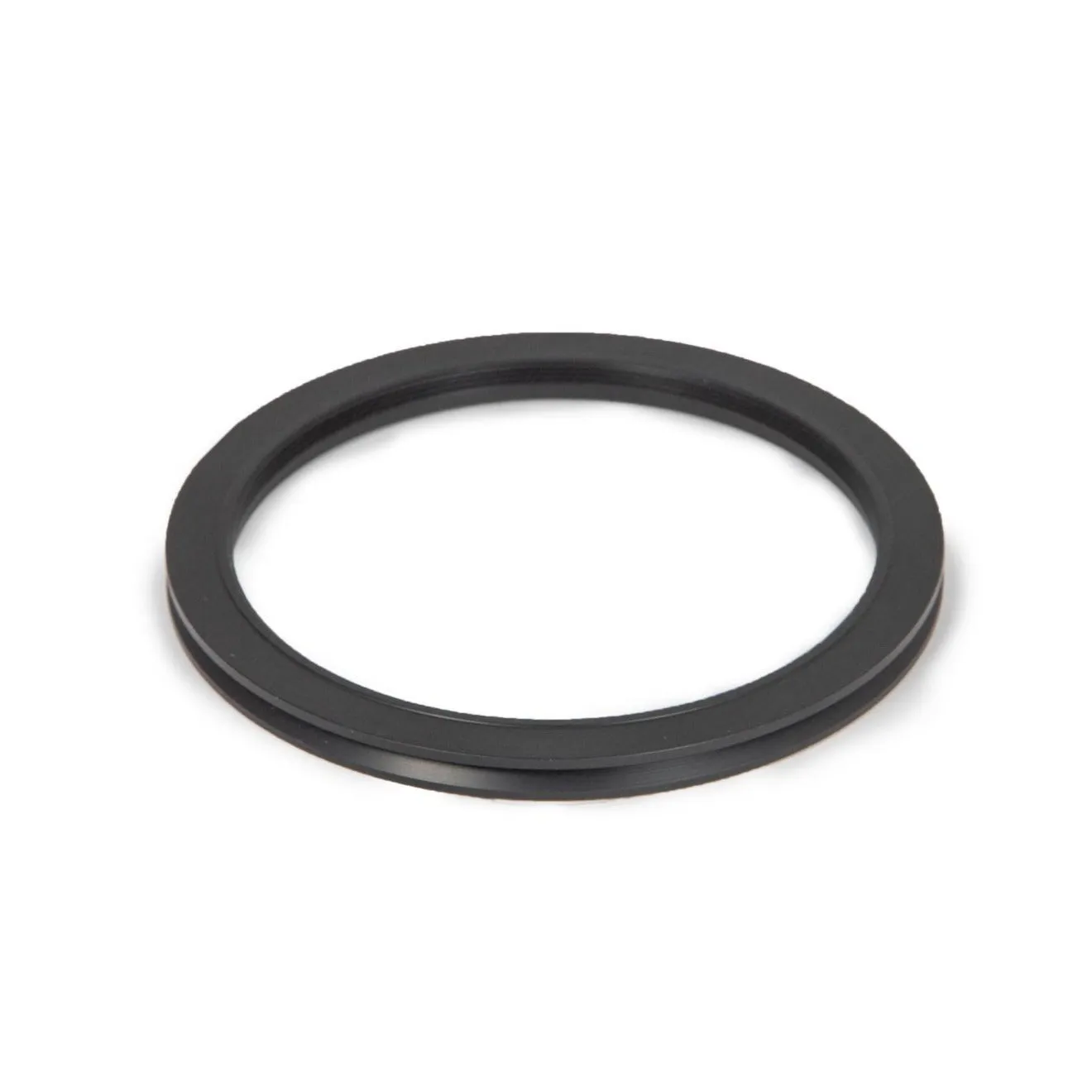

This adapter is used to povide a M100x1 female thread for Alluna Optics at port 1 of the (#2451300)
A variety of adaptations are possible. The IMP85 is delivered without adapters. A variety of telescope-side and camera-side adapters are available from stock. For custom applications, we provide the design for the flange on request.
- Fits to Port 1 of the Instrument Multi Port IMP85 (#2451300) , provides an M100x1 female thread for Alluna Optics on the camera side.
- Designed and manufactured in Germany
- Connection on telescope side: 120 x 7.5 mm dovetail
- Black anodized
- Optical length: 0.5 mm
- Inner and outer diameter: M100x1i / D120
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2451313 |
| EAN CODE | 4047825048400 |
| OPTICAL LENGTH (MM) | 0.5 mm |
| INNER DIAMETER / CLEAR APERTURE (MM) | M100x1i |
| OUTER DIAMETER | D120 |
| INNER CONNECTION (LENS SIDED) | Dovetail ring |
| CAMERA CONNECTION | 120 x 7,5mm Schwalbenschwanz |
| COMPATIBLE BRANDS | Baader Planetarium |
