Product Details
＋
Description

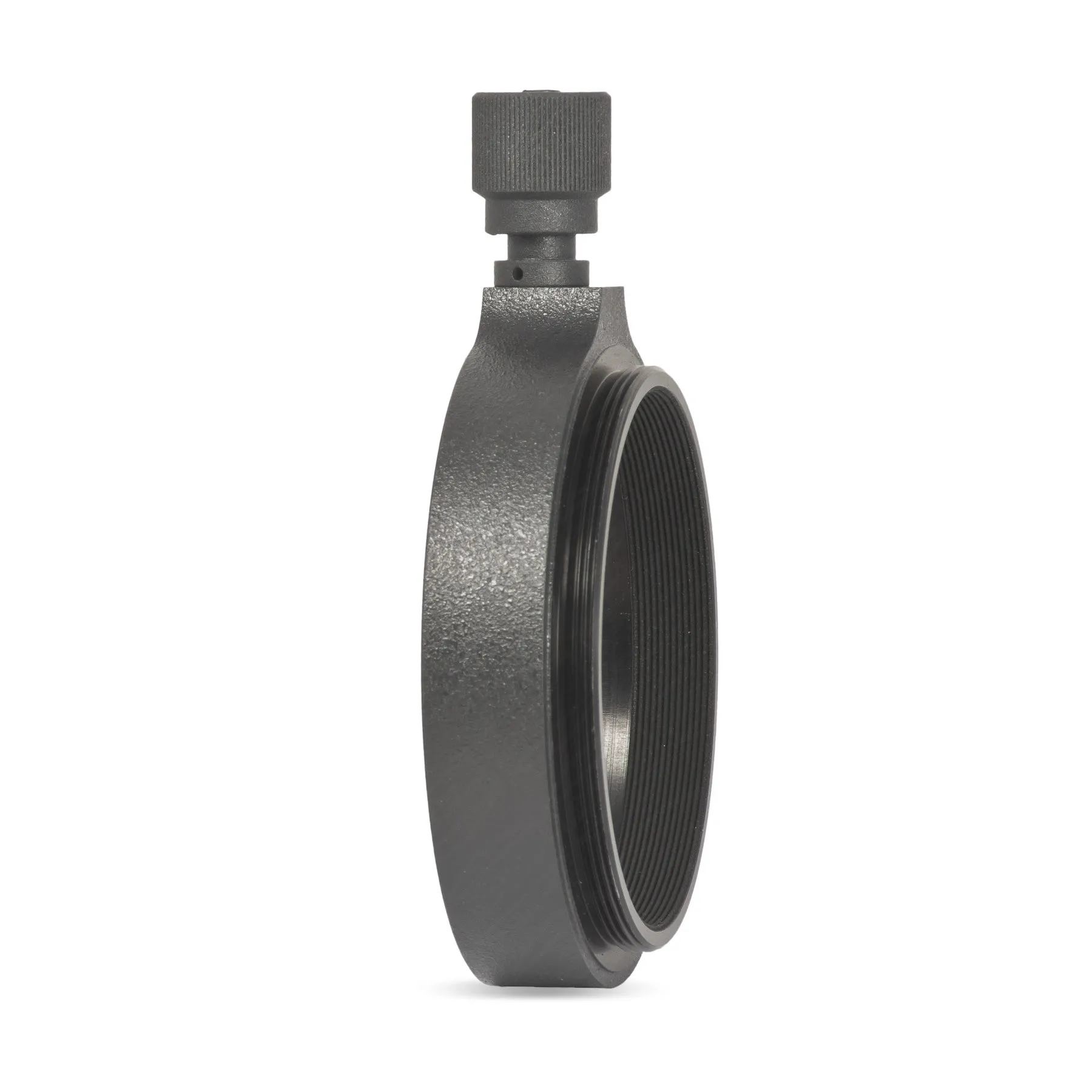

- M68 / S68 Zeiss changer
- Serves as a highly reliable quick coupling and rotational device
- For use with Baader Solar Spectrum H-alpha filters and long distance projection in use with the Baader FFC (Flat Field fluorite Converter)
Specifications
| SKU (#) | 2458180 |
|---|---|
| EAN CODE | 4047825010087 |
| WEIGHT (NETTO) | 0.092 |
| OPTICAL LENGTH (MM) | 15 |
| CLAMPING SYSTEM | Screw clamps |
| USAGE | serves as heavy-duty quick changer and rotator in combination with Baader SolarSpectrum H-alpha filters and with bigger projection distance in combination with the Baader FFC (Fluorit Flatfield Converter) |
| SCREW TYPE | Large M6,5 clamping screw wirh brass pressure plate |
| INNER DIAMETER / CLEAR APERTURE (MM) | 61,5 |
| OUTER DIAMETER | 76 |
| OUTER CONNECTION (LENS SIDED) | Thread, M68 x 1 |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Dovetail ring clamp, S68 |
| ADAPTABLE TO | Carl Zeiss Adapter-System |
| COMPATIBLE BRANDS | Baader Planetarium, Zeiss |
| TYPE OF ADAPTER | Quick Changer |
