SainSmart Leonardo R3 Improved Version Board

The SainSmart Leonardo is a microcontroller board based on the ATmega32u4 . It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

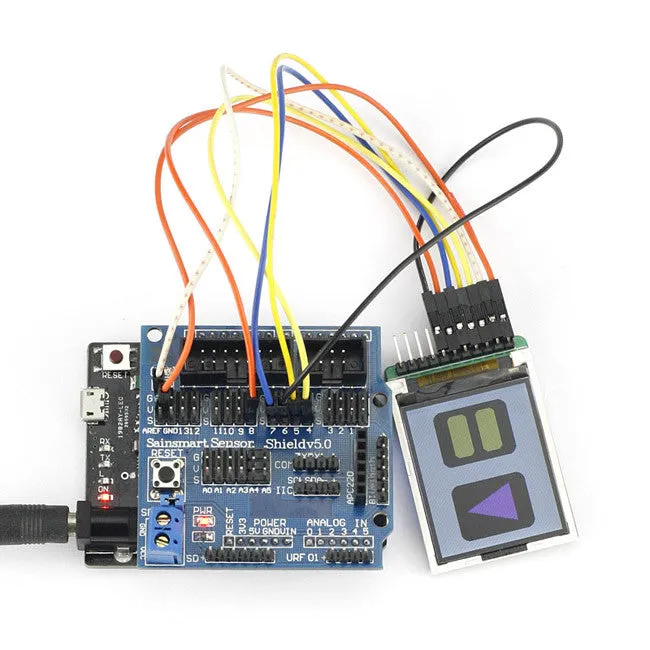

SainSmart SensorShield Module V5:

• Ready to  plug & play.

• It can connect to various modules like sensors, servos, relays, buttons,potentiometers

•  Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.

SainSmart 1.8" Serial TFT LCD Display:

• Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
•  Display Color: 262K colors;
•  Backlight Type: LED
•  Resolution: 128W * 160H Dots
•  Board Size: 5.00 x 3.4cm
•  View Area: 28.03W * 35.04H mm
•  Dot Size: 0.06W * 3 * 0.18H mm
•  Dot Pitch: 0.18W * 0.18H mm
•  Viewing Angle: 6 o'clock
•  SPI Bus interface
•  IC Driver: ST7735R
•  5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly

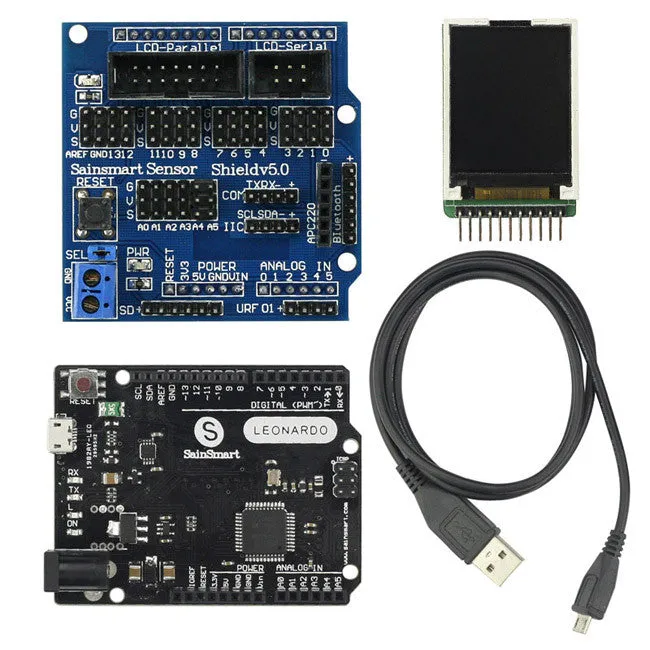

Package List:
1x SainSmart Leonardo R3
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable
