FIREFLYLITE LED RAW EMITTERS

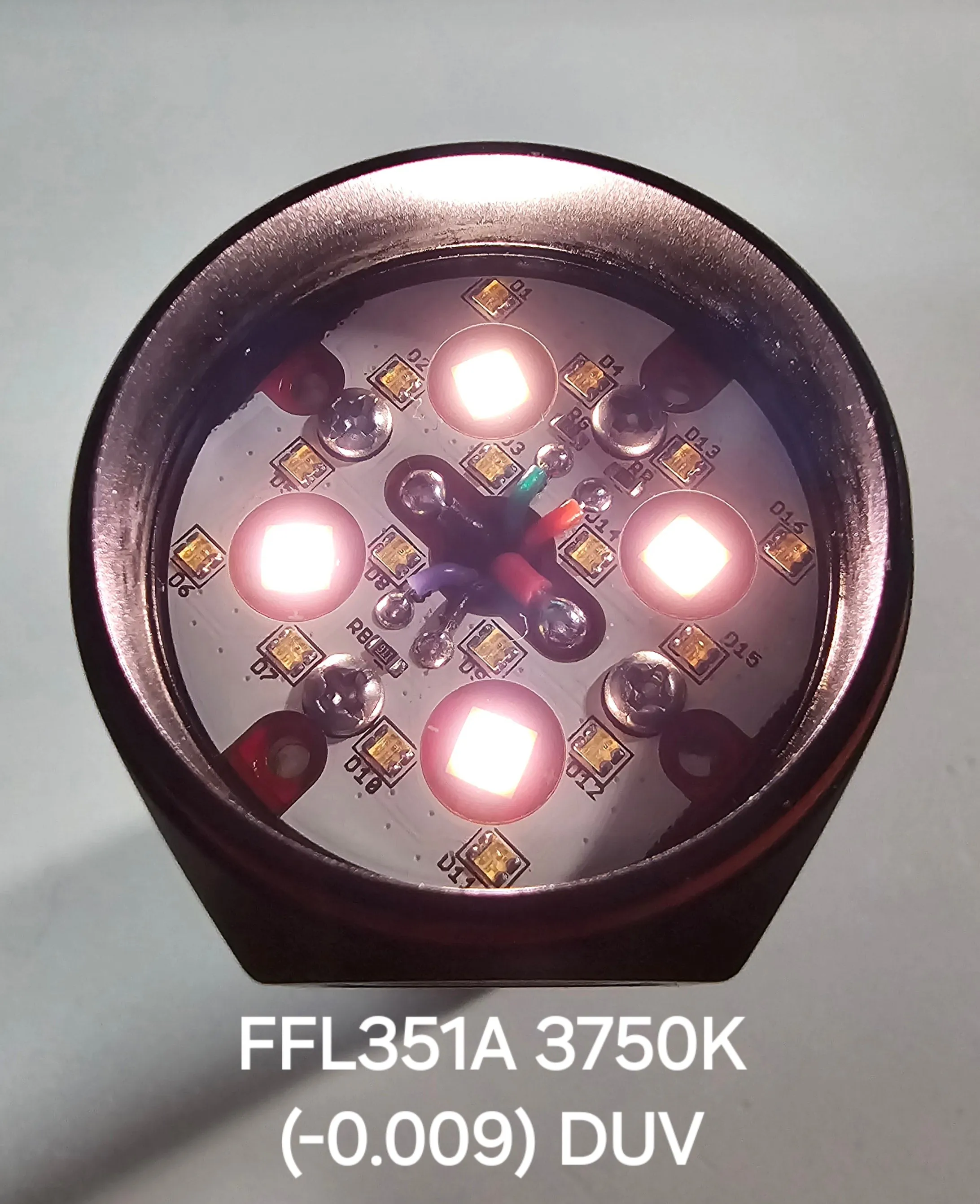

THESE ARE NEW EMITTERS DESIGNED BY JACK @ FIREFLYLITE (FIREFLIES). RELEASED IN LATE APRIL 2024 THESE ARE THE HOTTEST EMITTERS IN THE MARKET. COMPARED TO THE EXTREMELY POPULAR NICHIA 519A EMITTERS THESE FF EMITTERS ARE MORE EFFICENT PRODUCING HIGHER LUMENS WITH LOWER CURRENT! THE 1ST BATCH BINS WAS SUPER ROSY (-0.009 DUV) BUT THE 2ND BATCH BINS WAS MORE NEUTRAL COLOR BUT STILL BELOW BBL. THESE EMITTERS OFFER EXCELLENT COLOR AND HIGH CRI. THESE EMITTERS ARE NOT AVAILABLE IN ALL MY CUSTOM-BUILT FLASHLIGHTS!

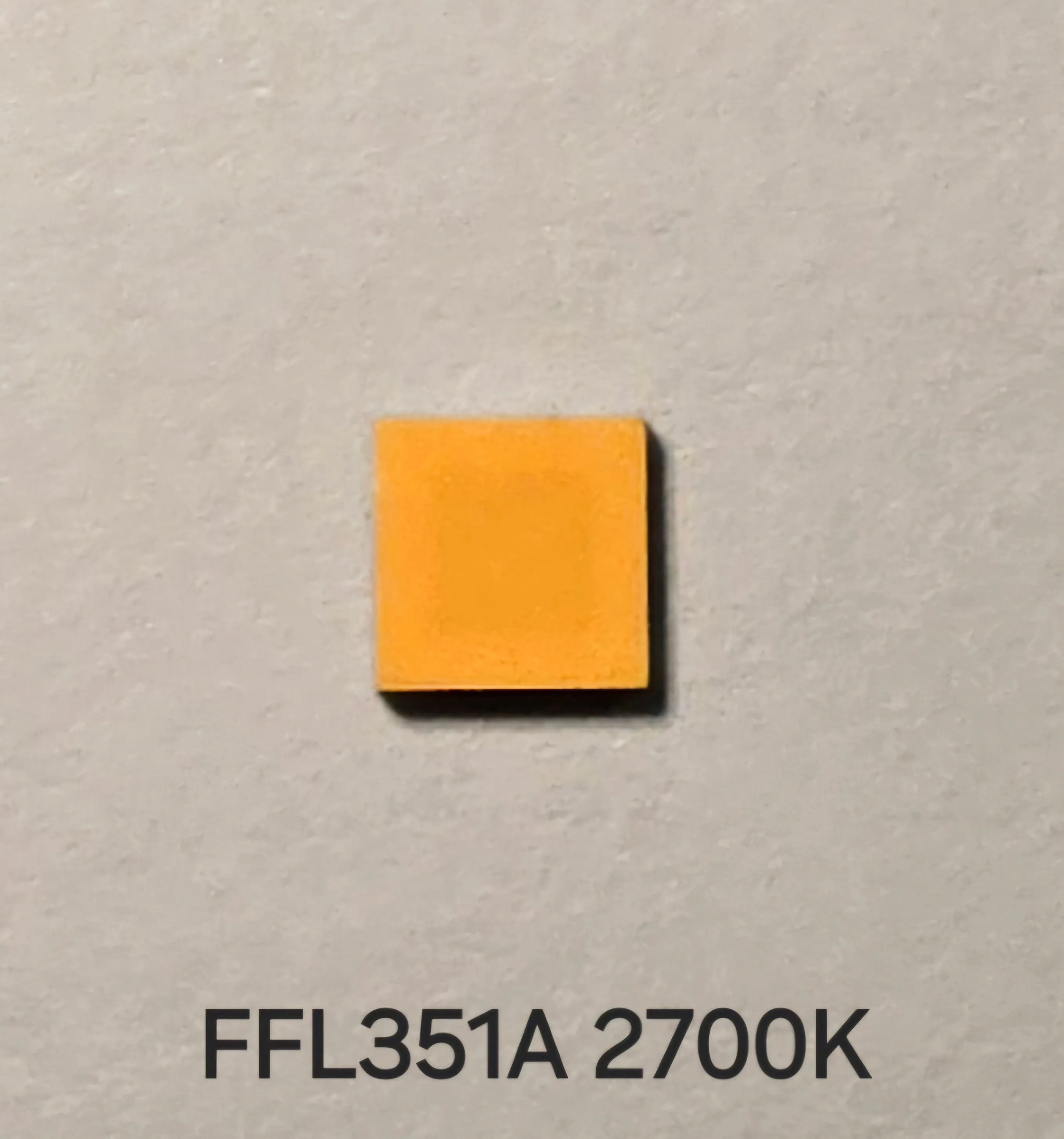

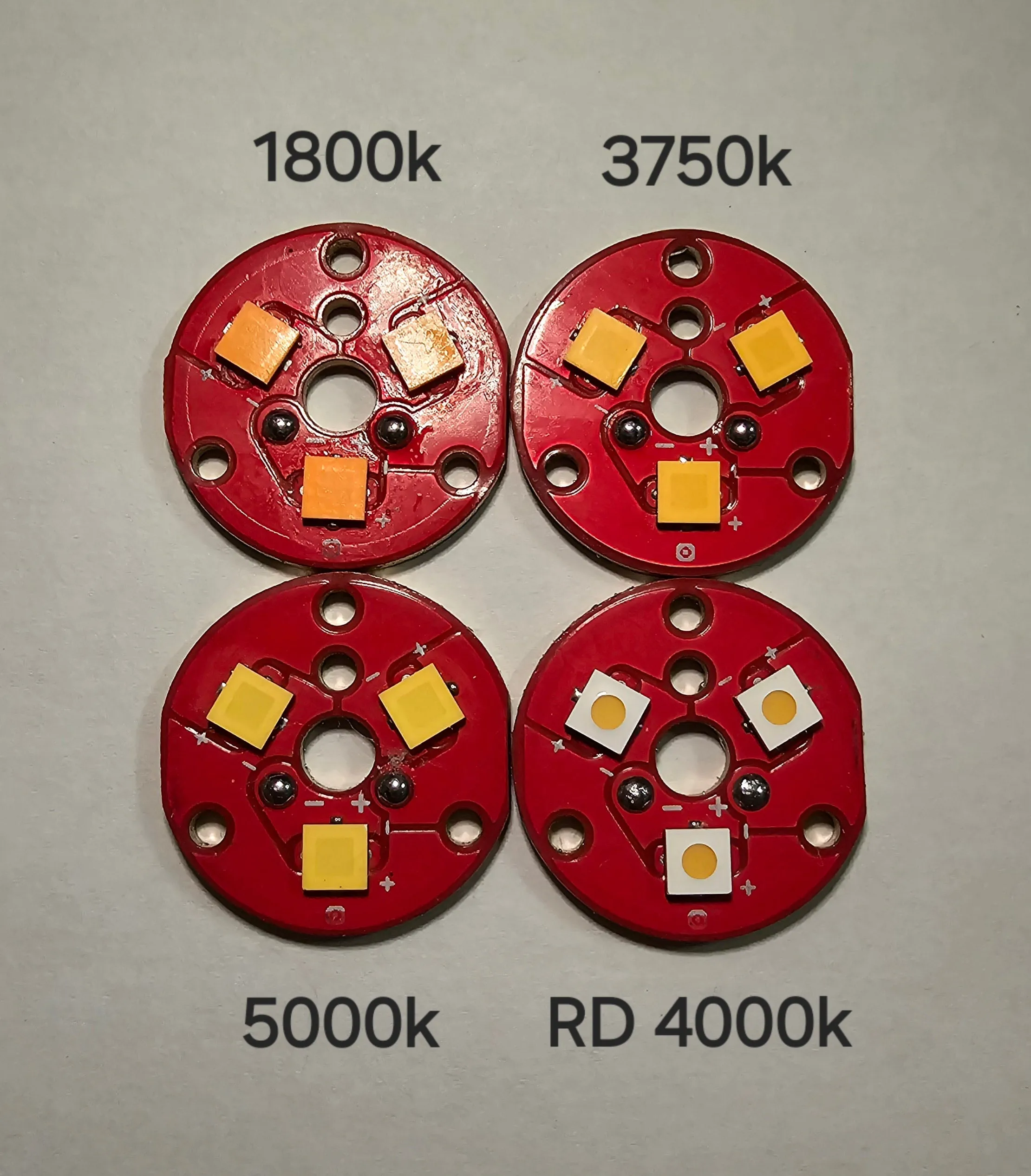

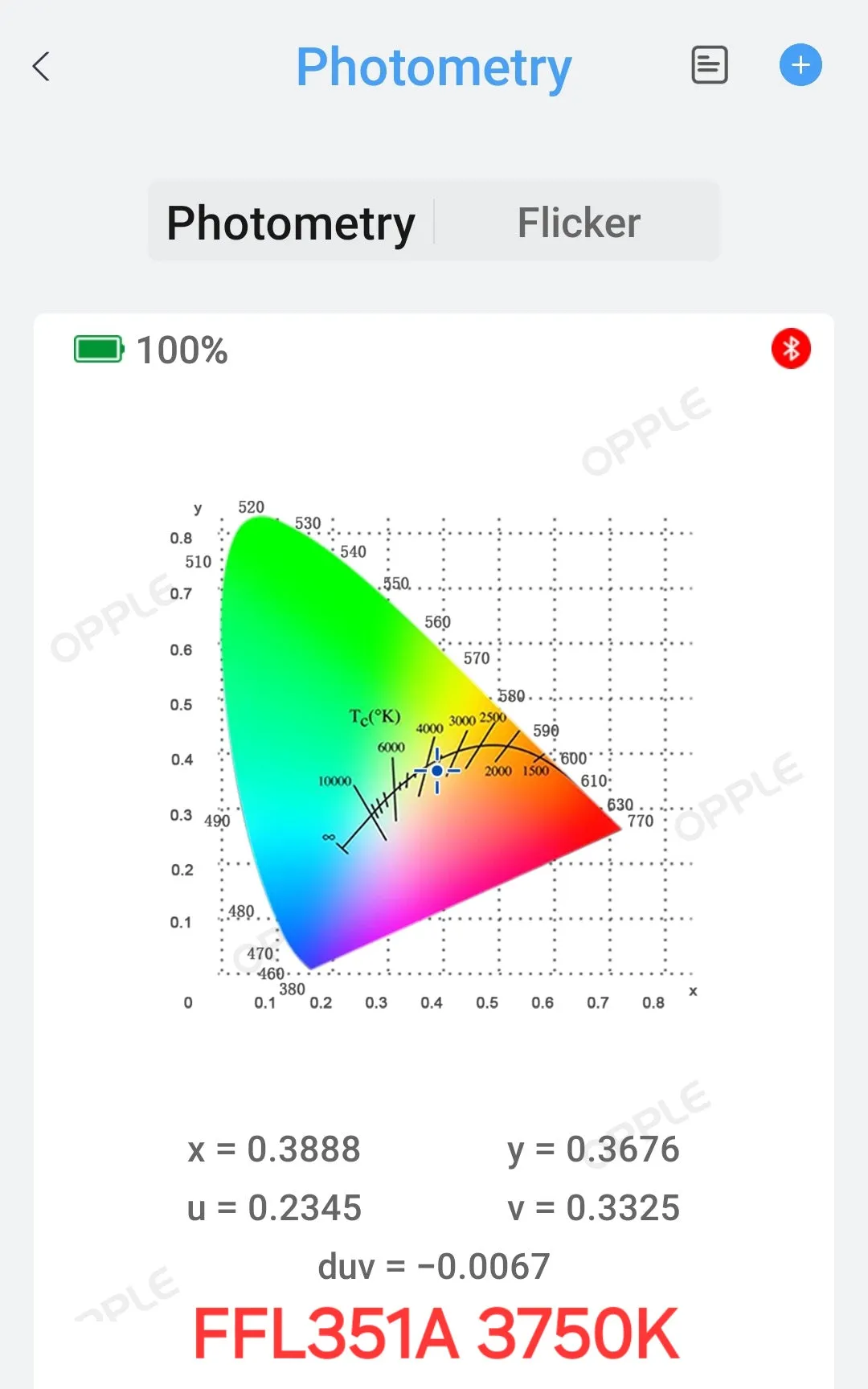

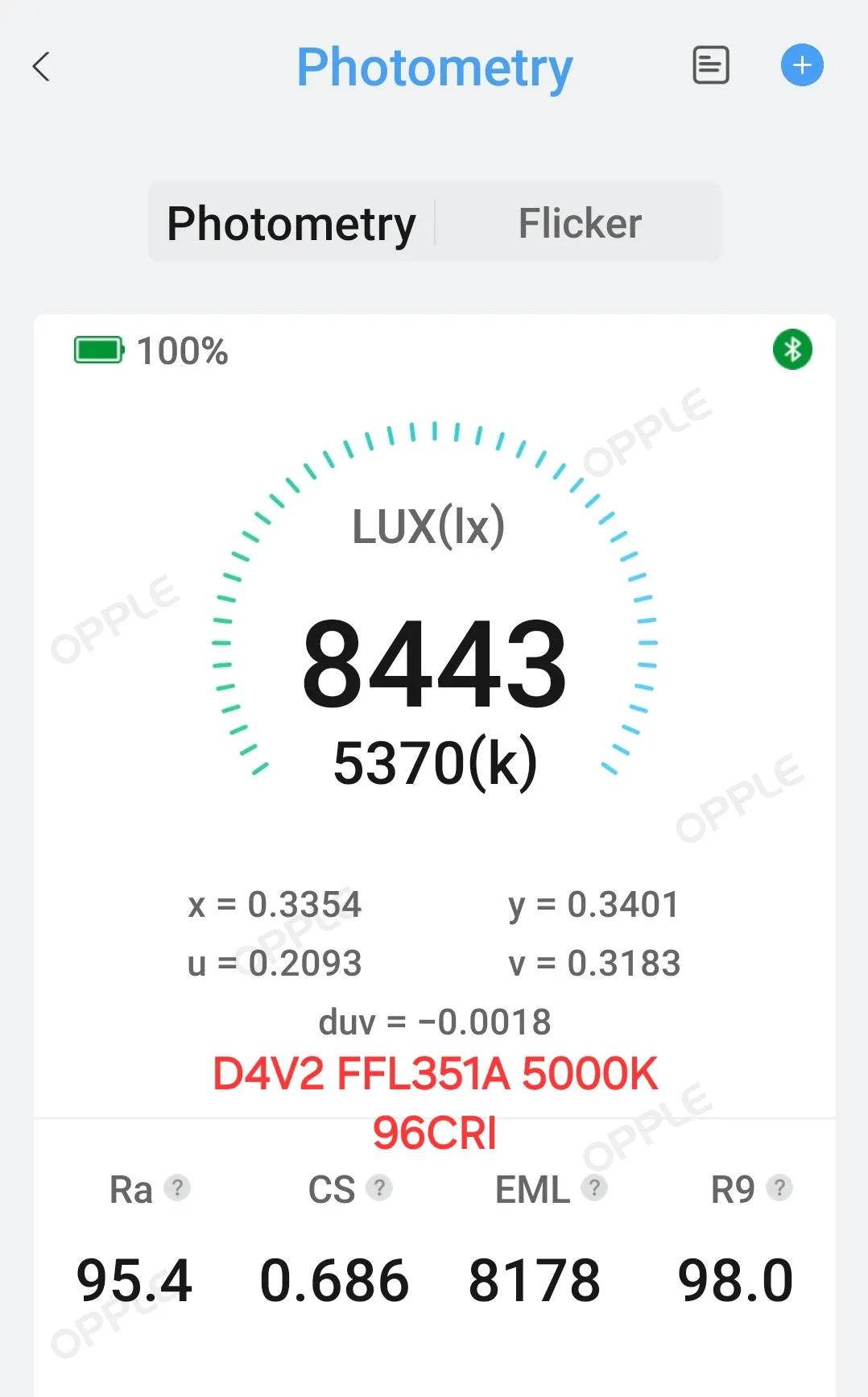

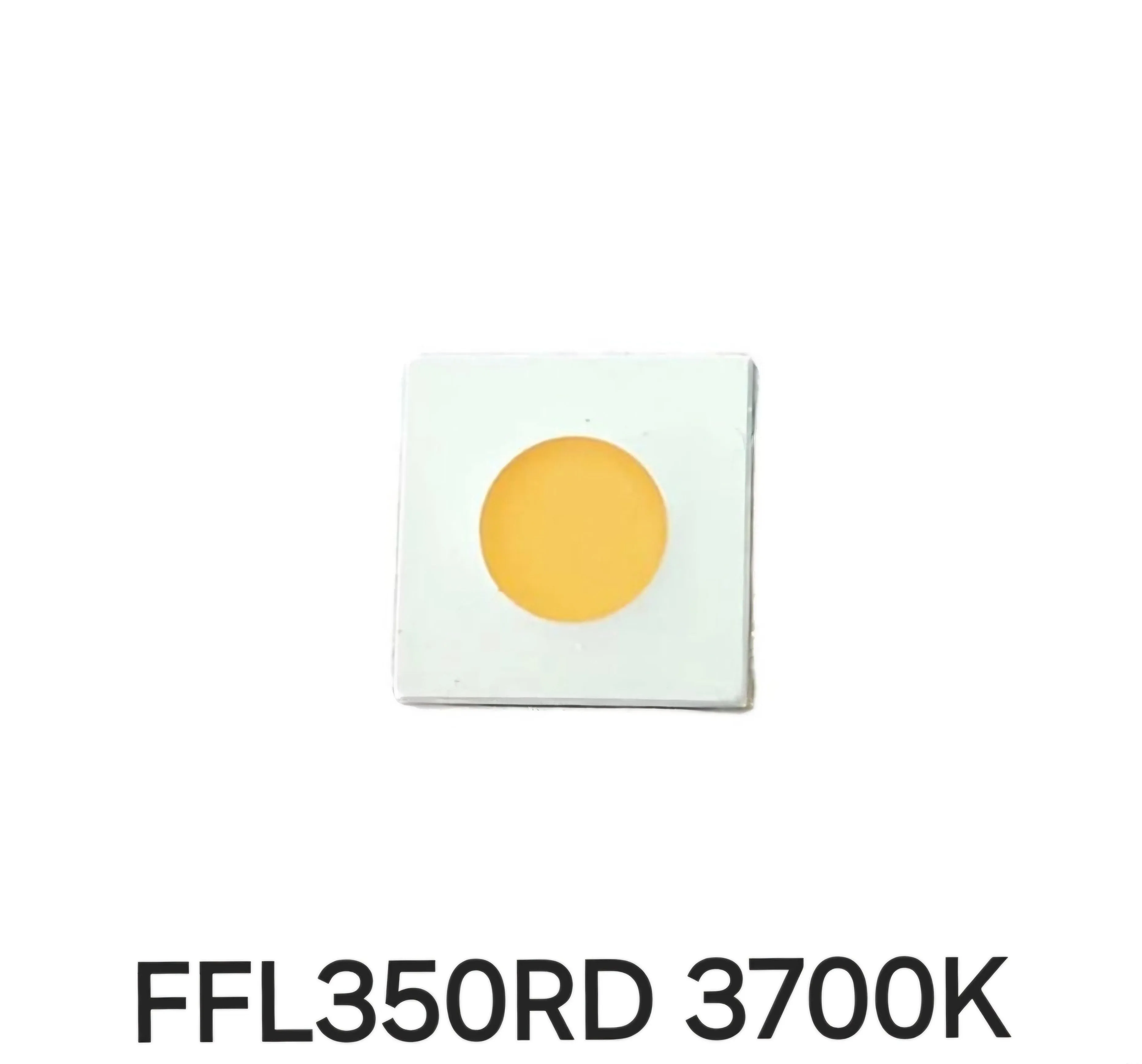

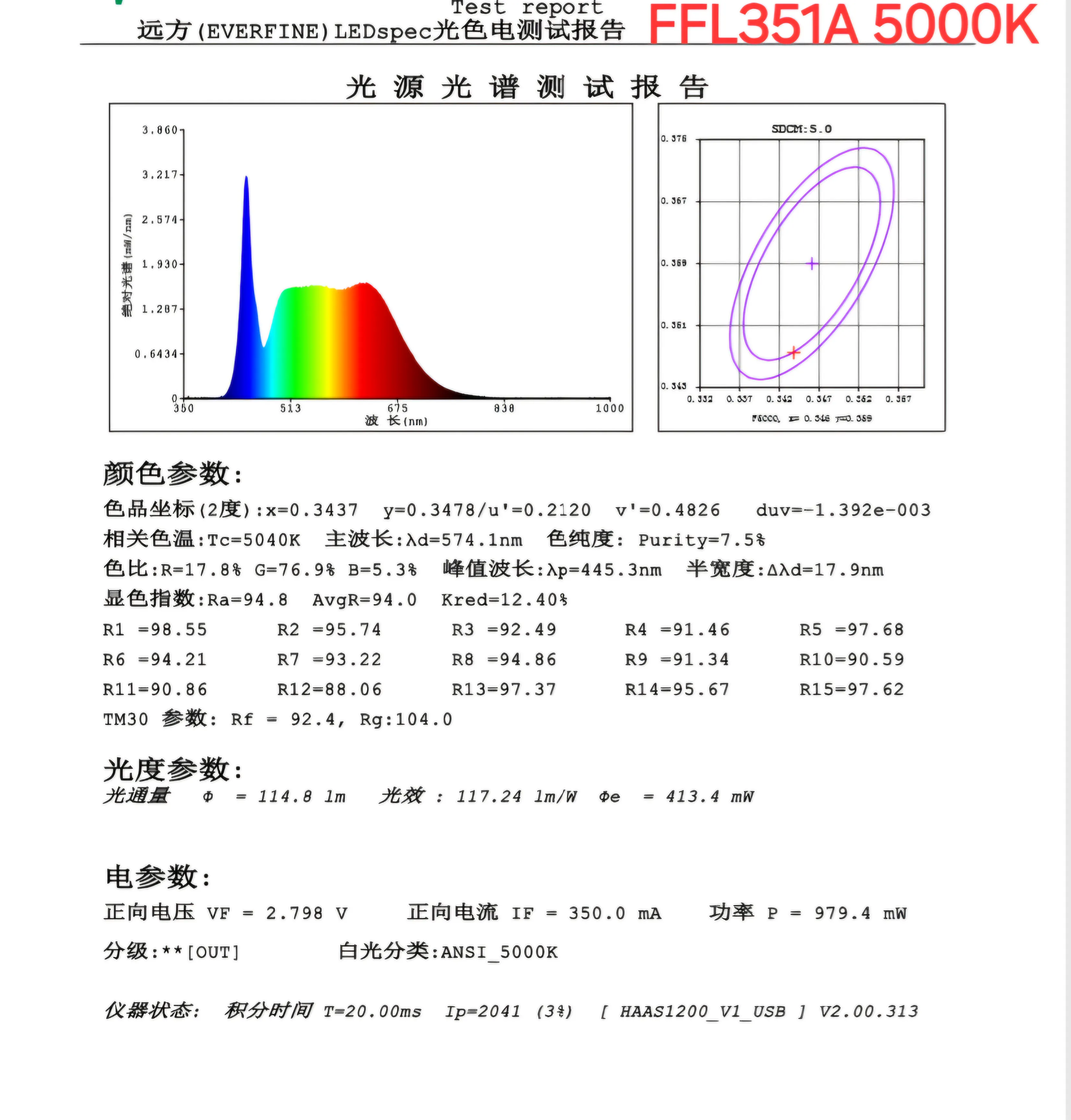

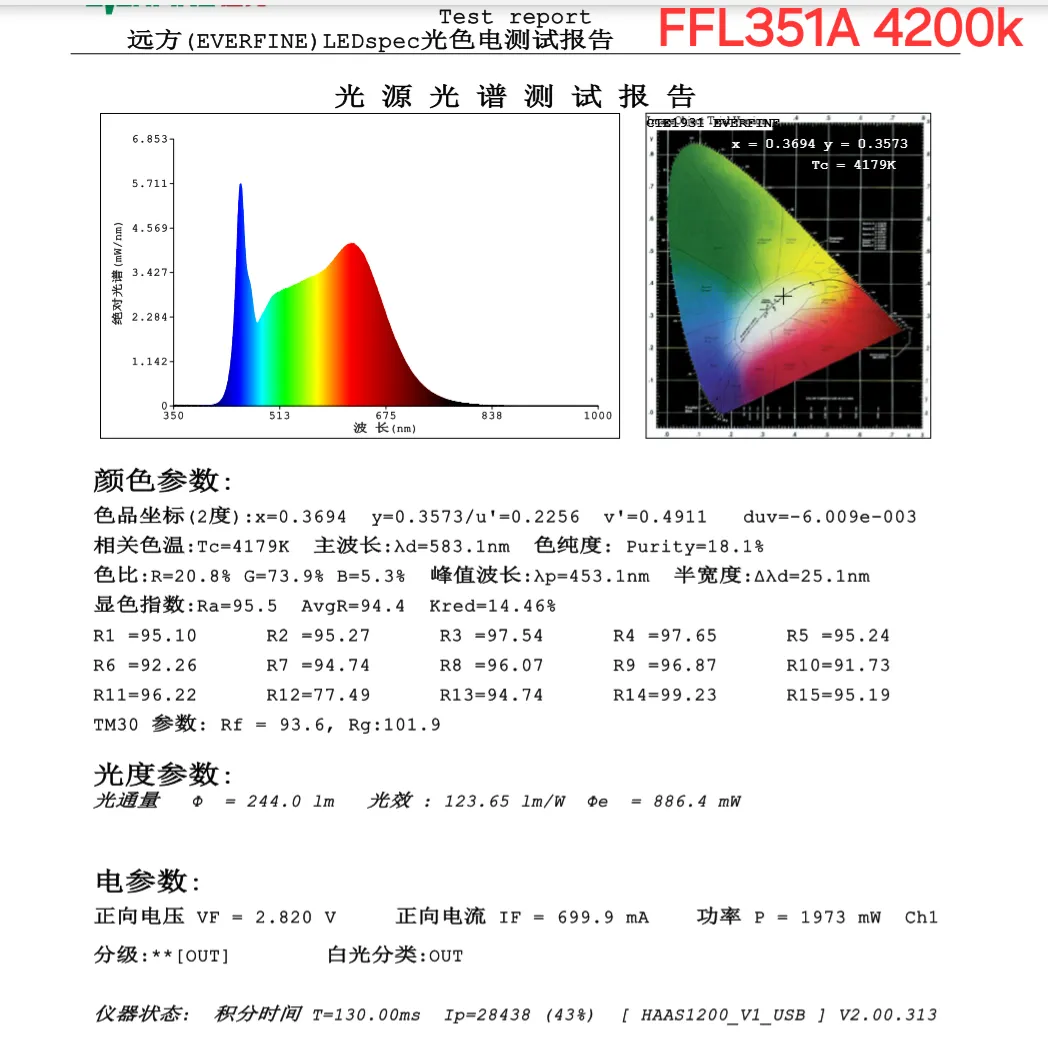

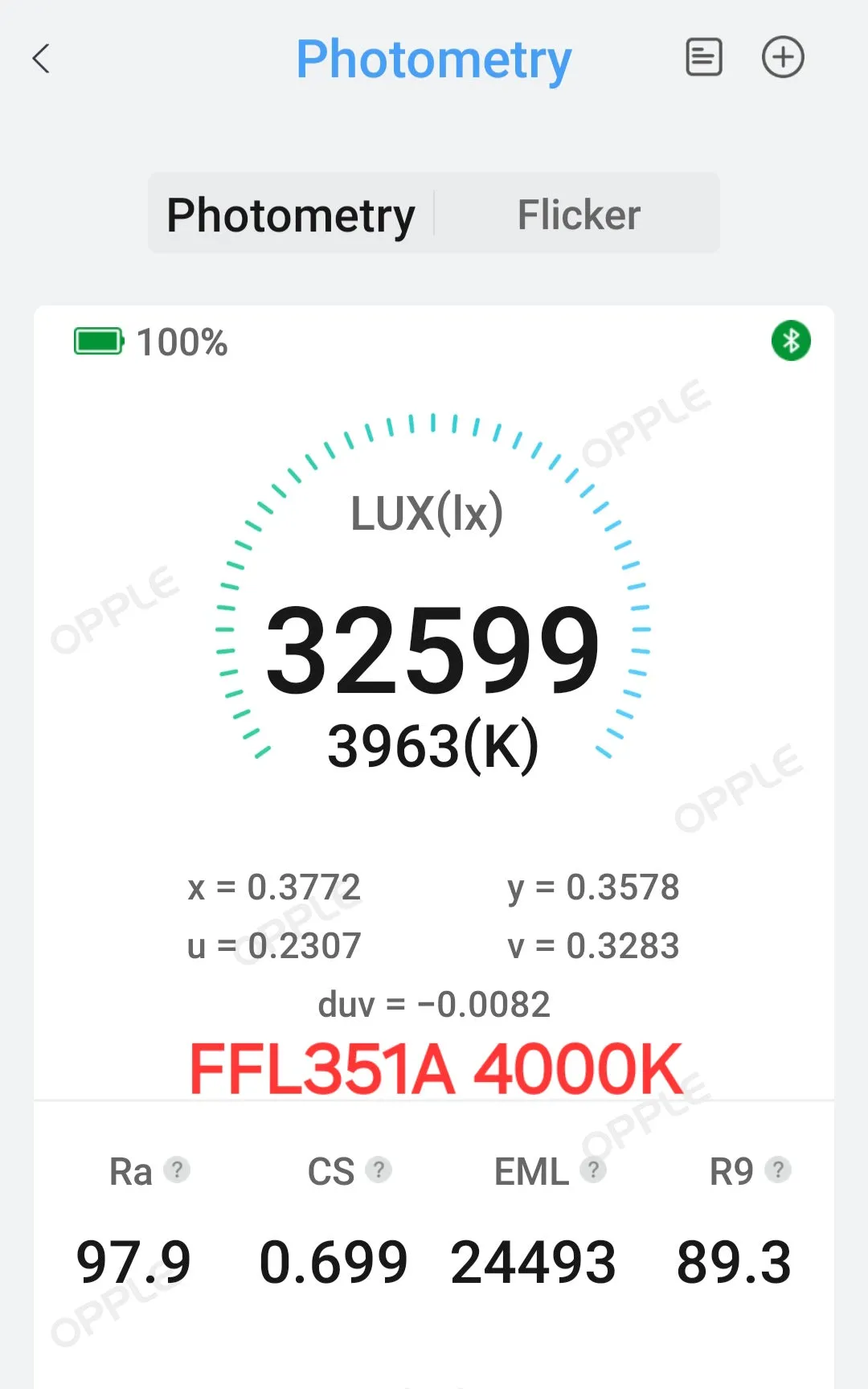

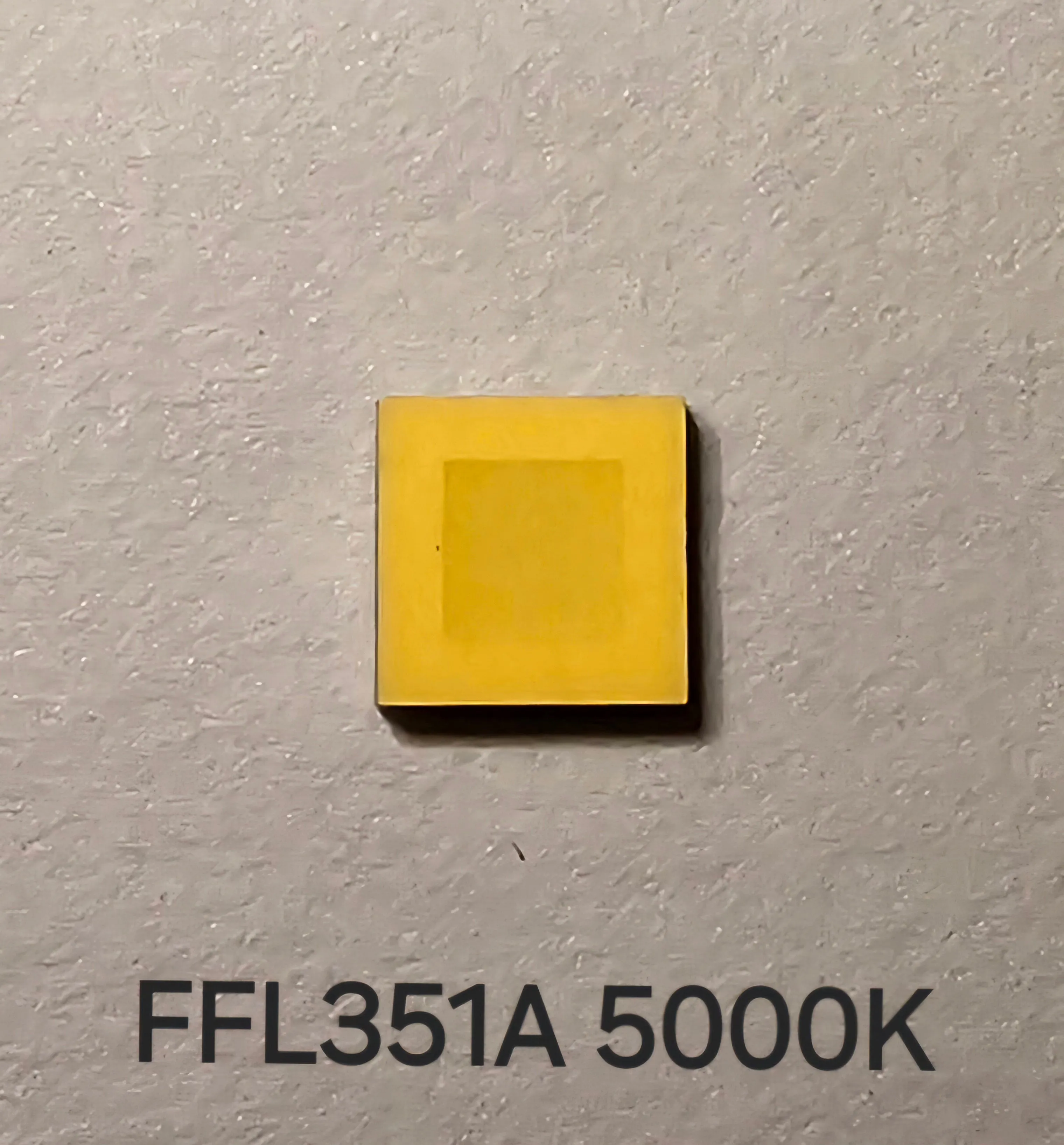

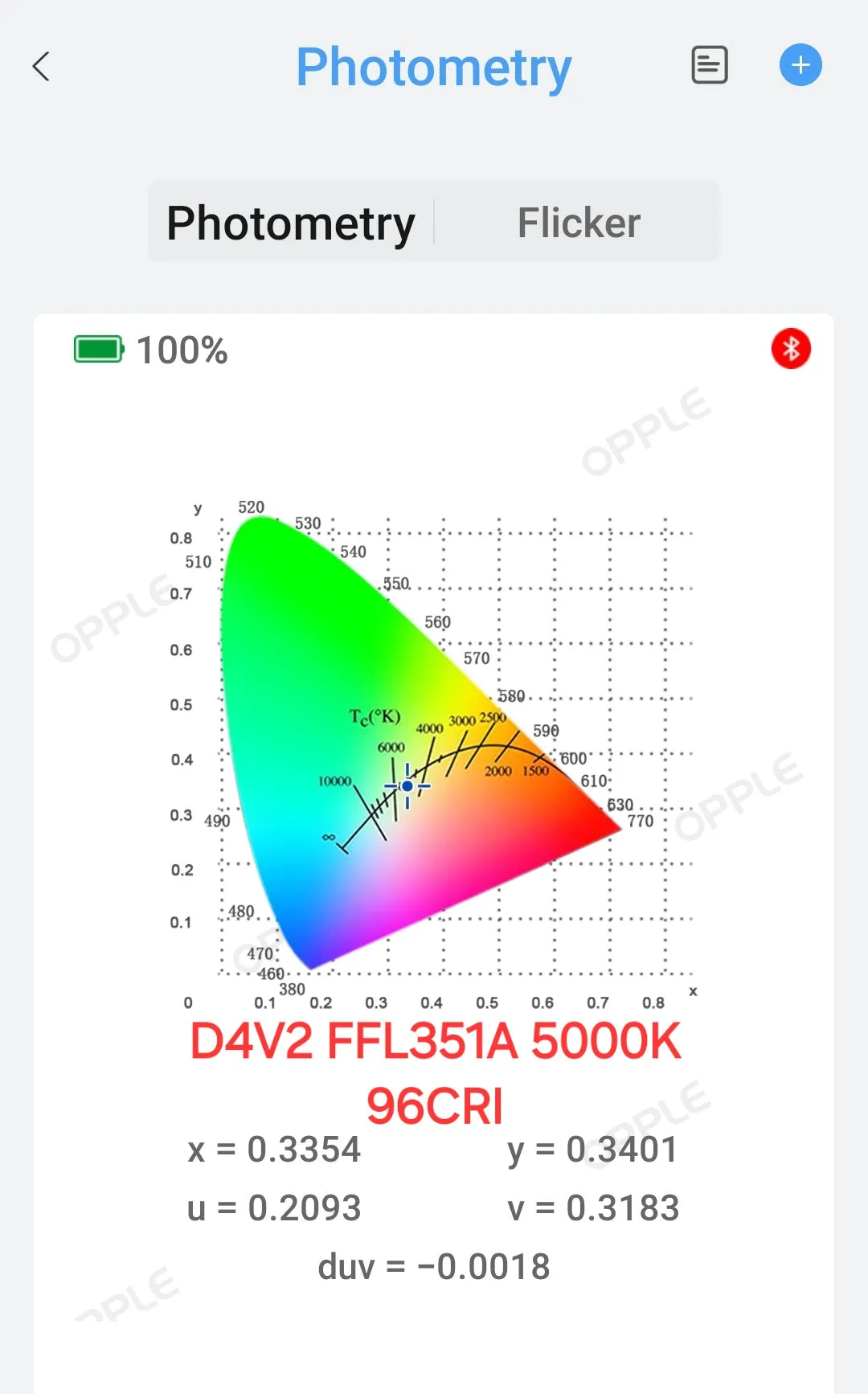

FF350RD/FFL351RD SPECS:

3535SMD

1800K

2700K

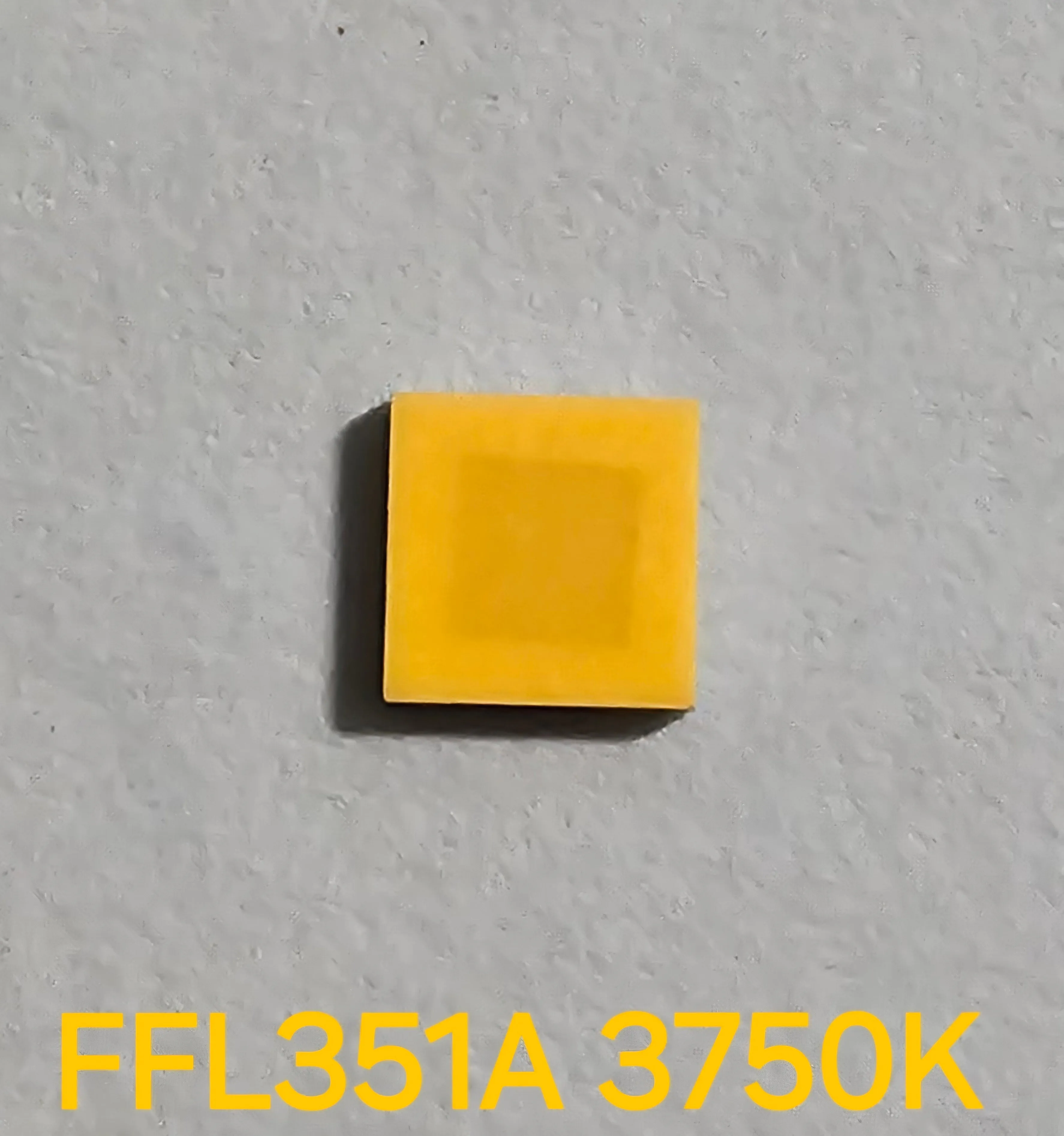

3500K (3700K)

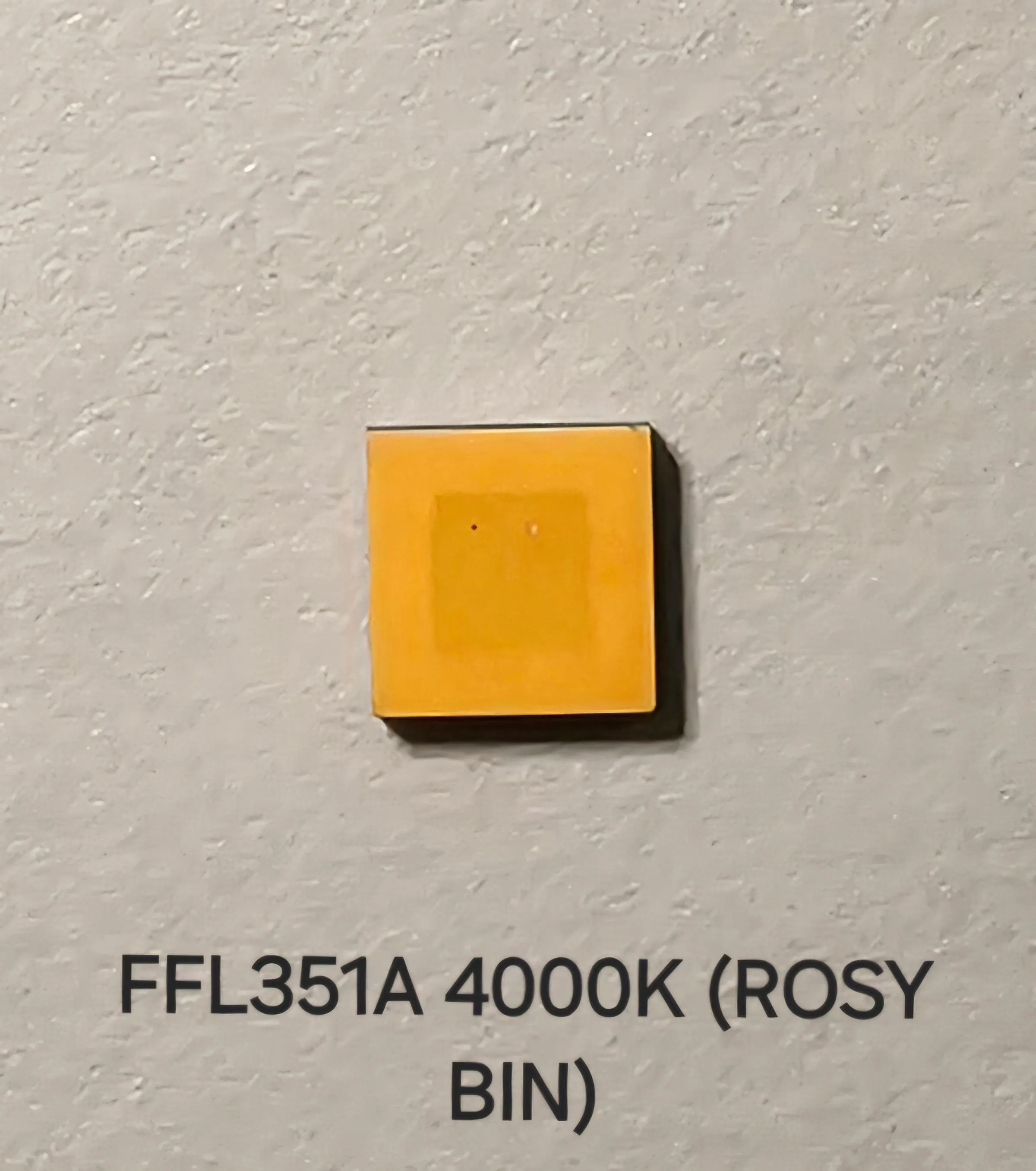

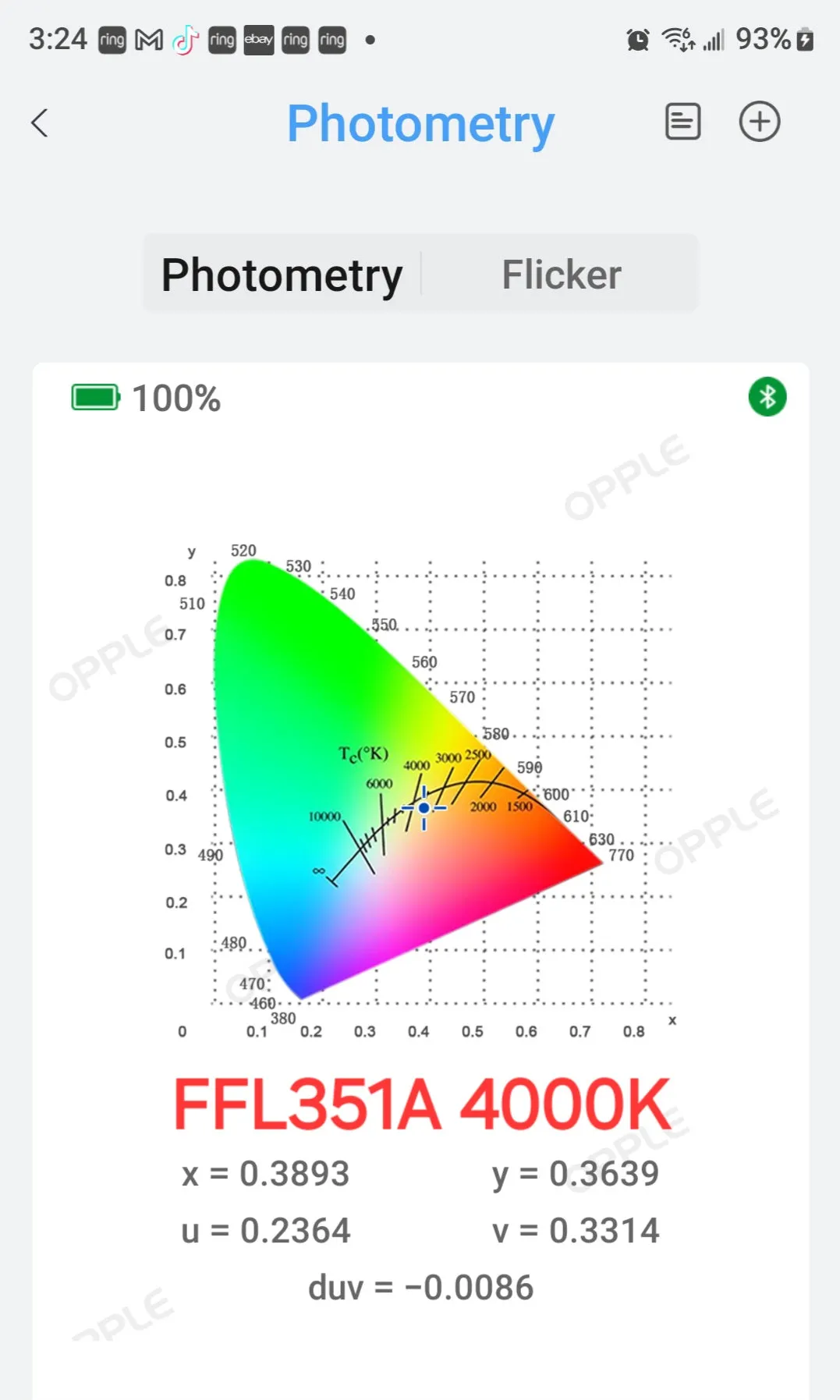

4000K (CUSTOM ROSY BIN)

5000K

4A MAX

6A PEAK

1100LM

95-97CRI

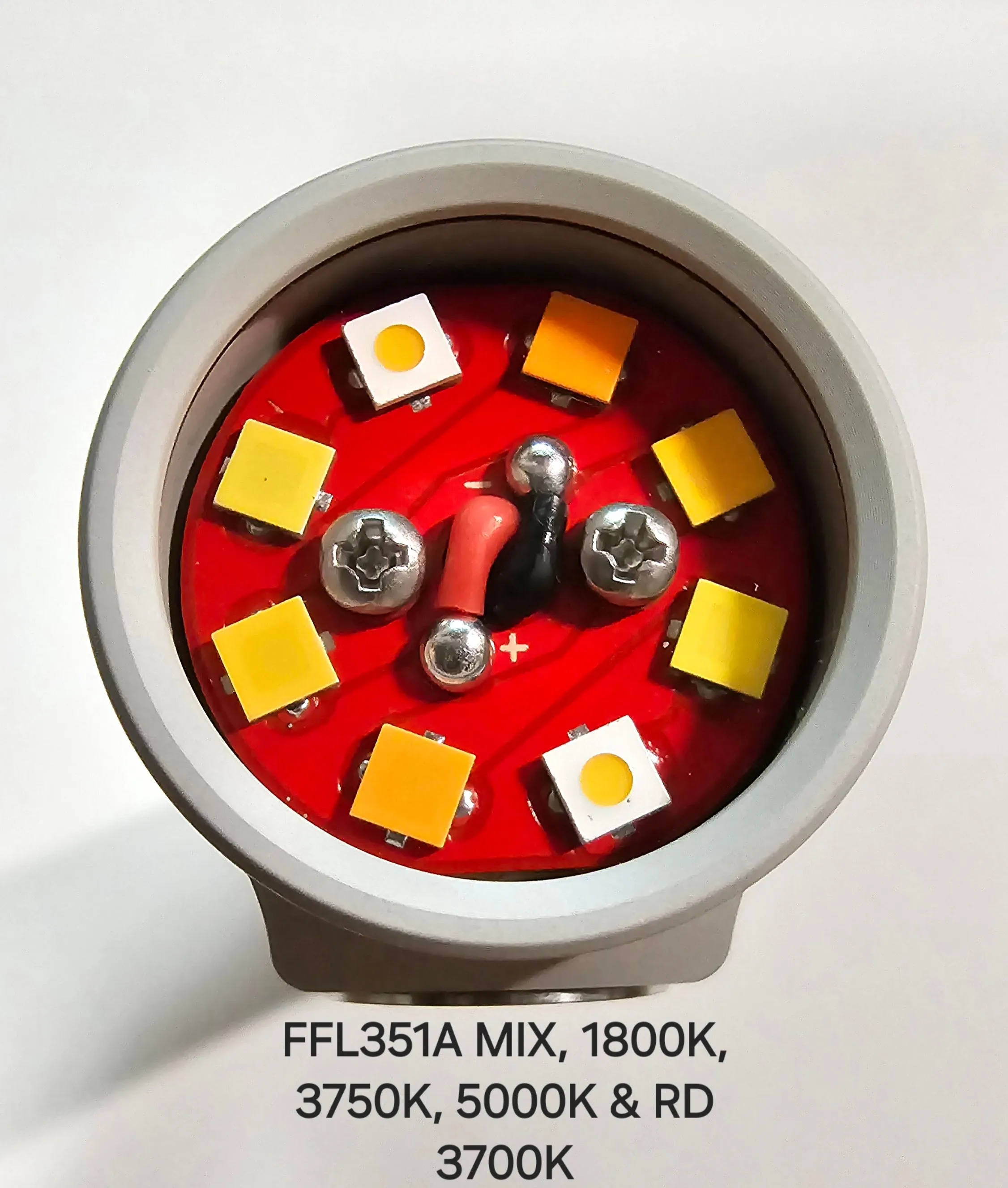

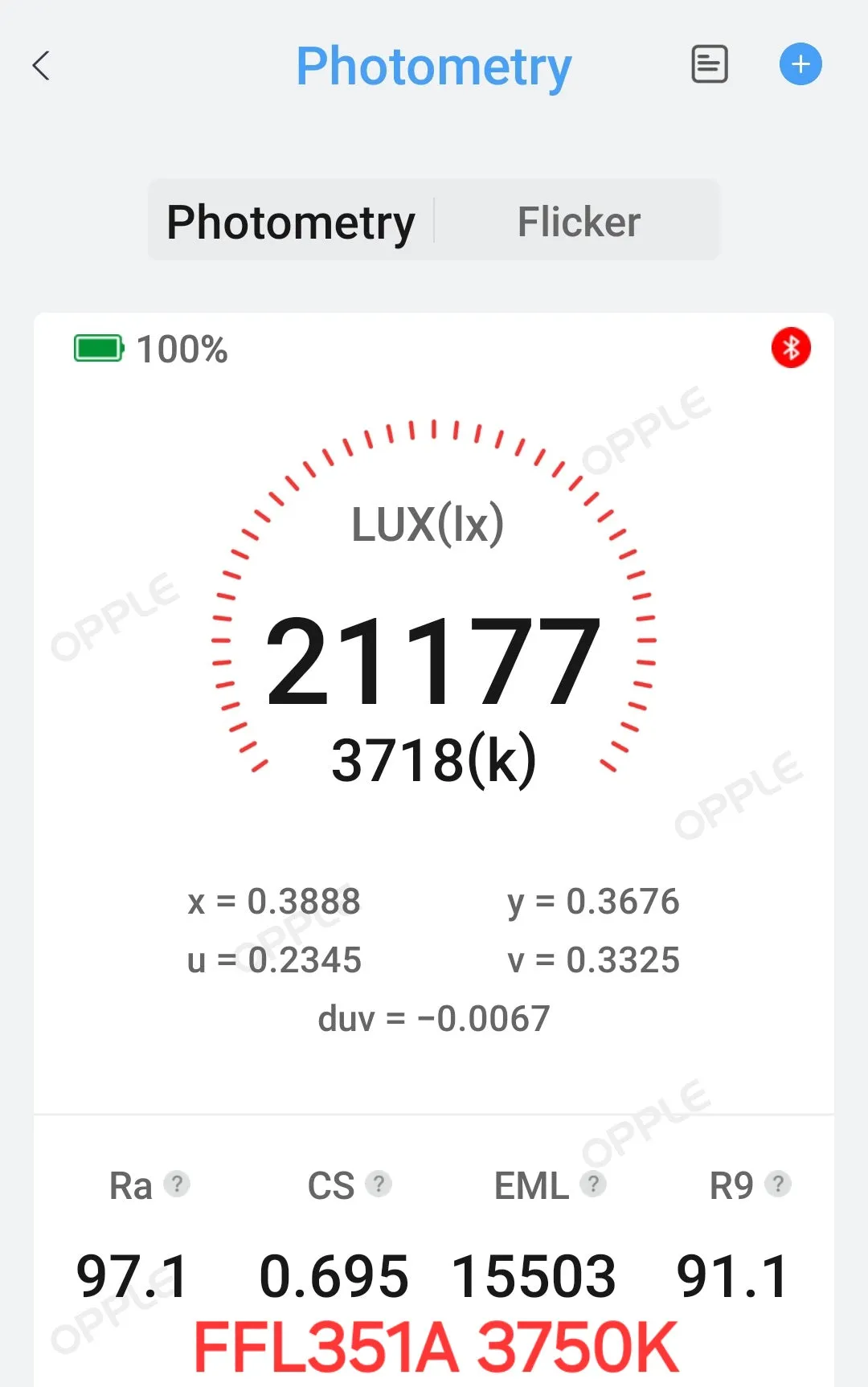

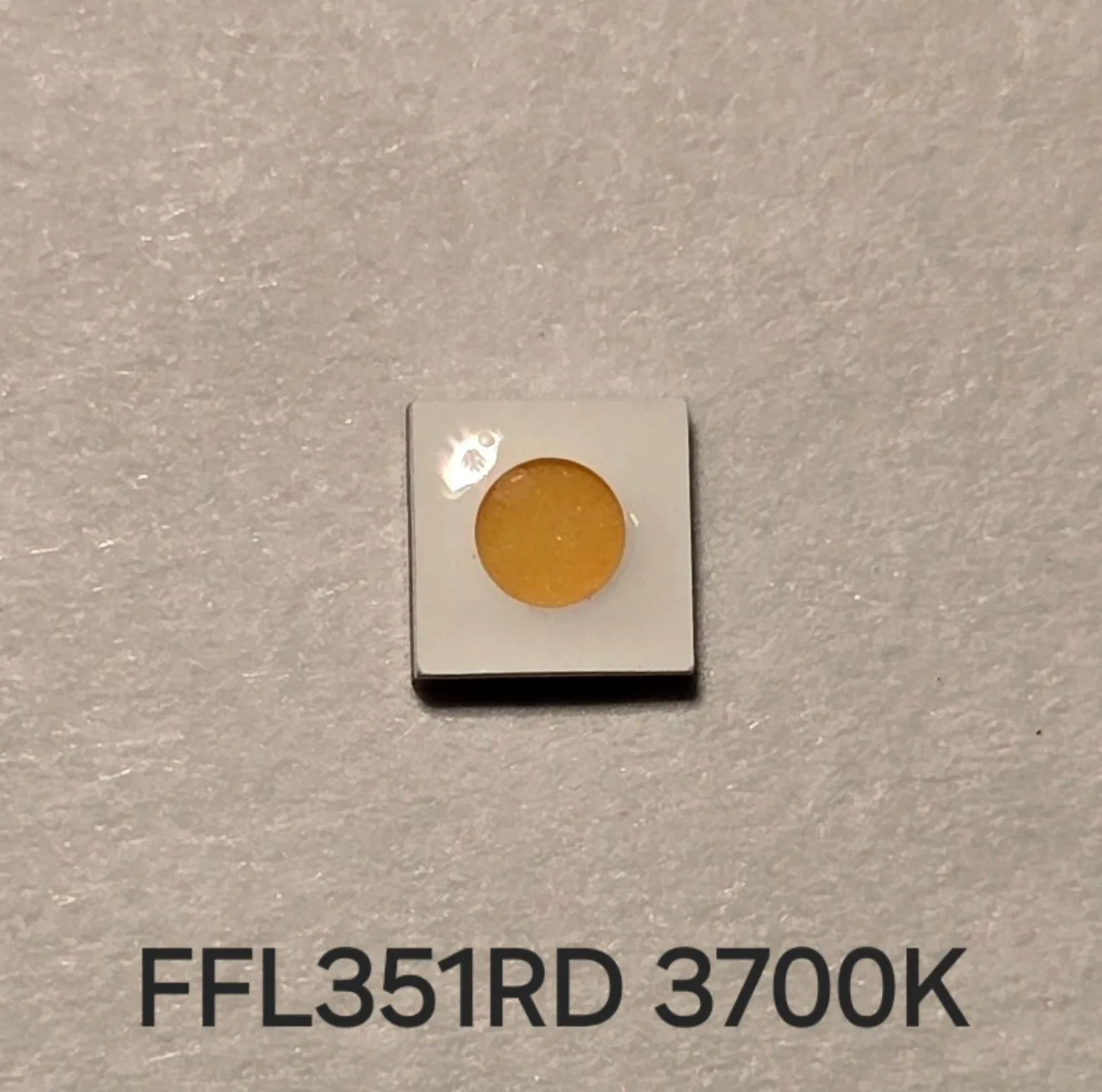

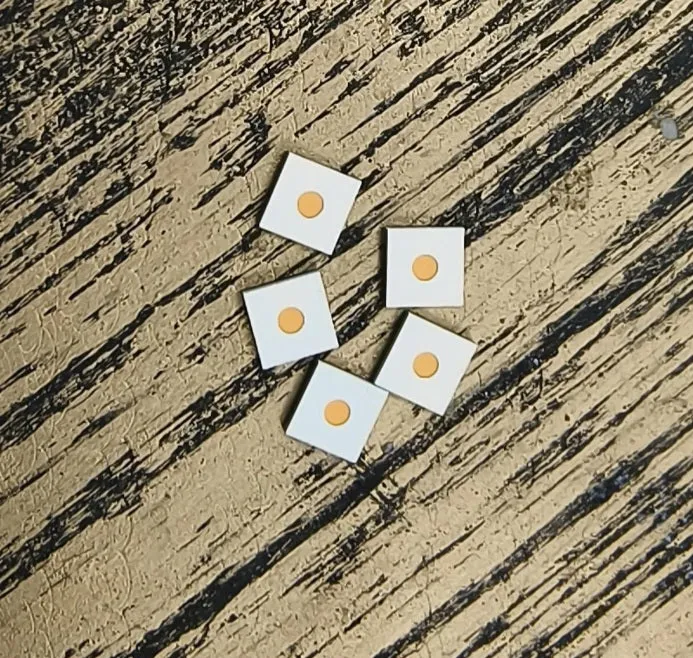

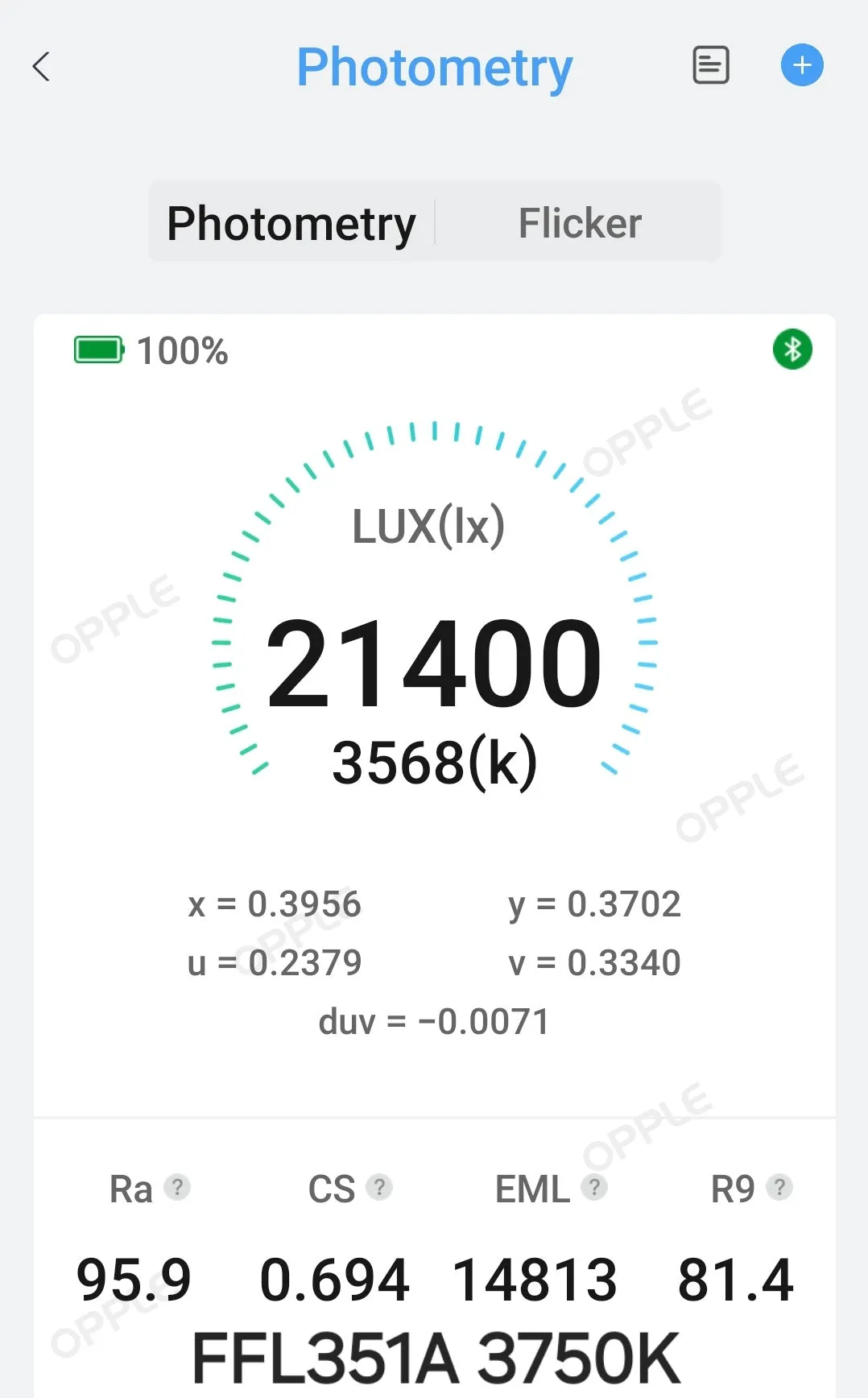

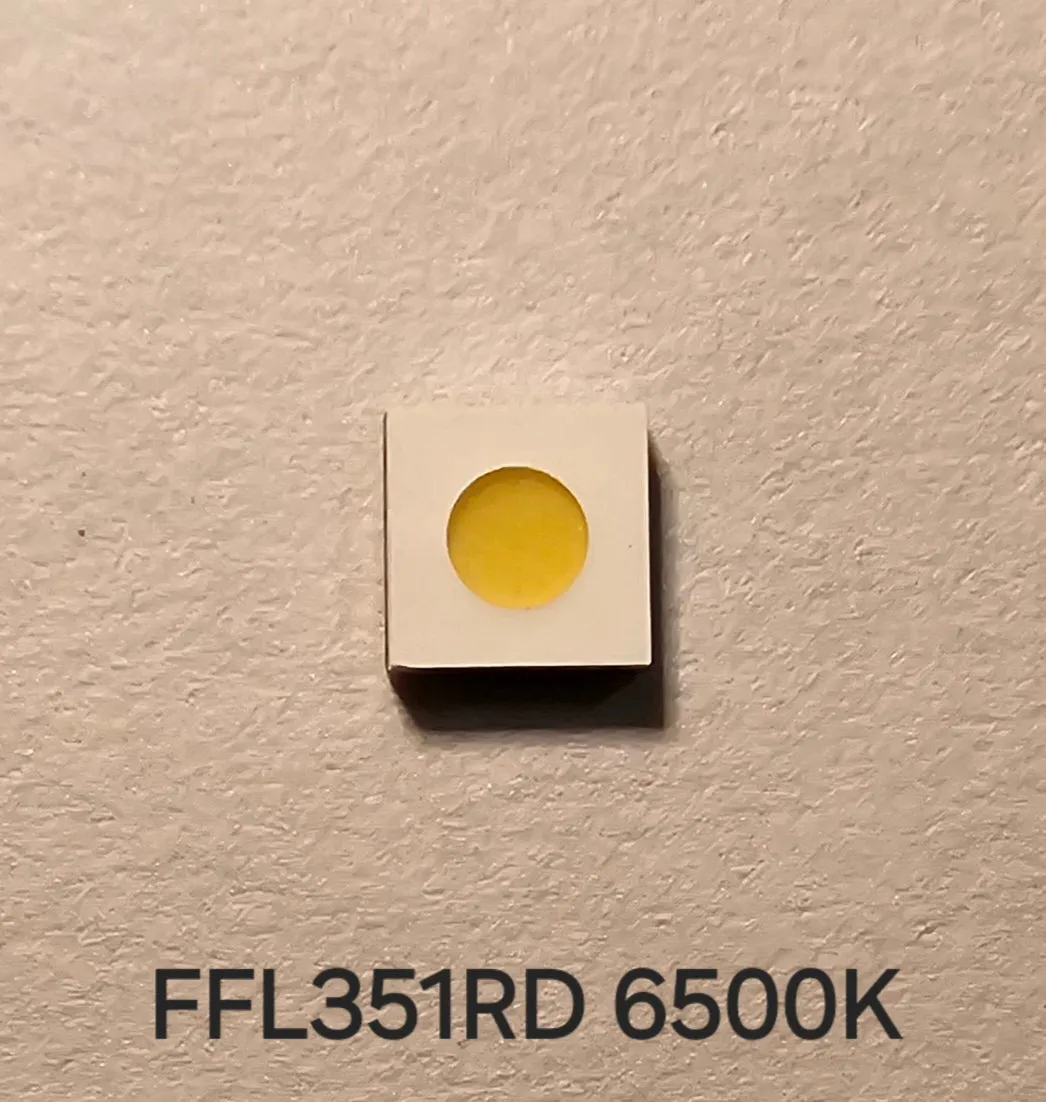

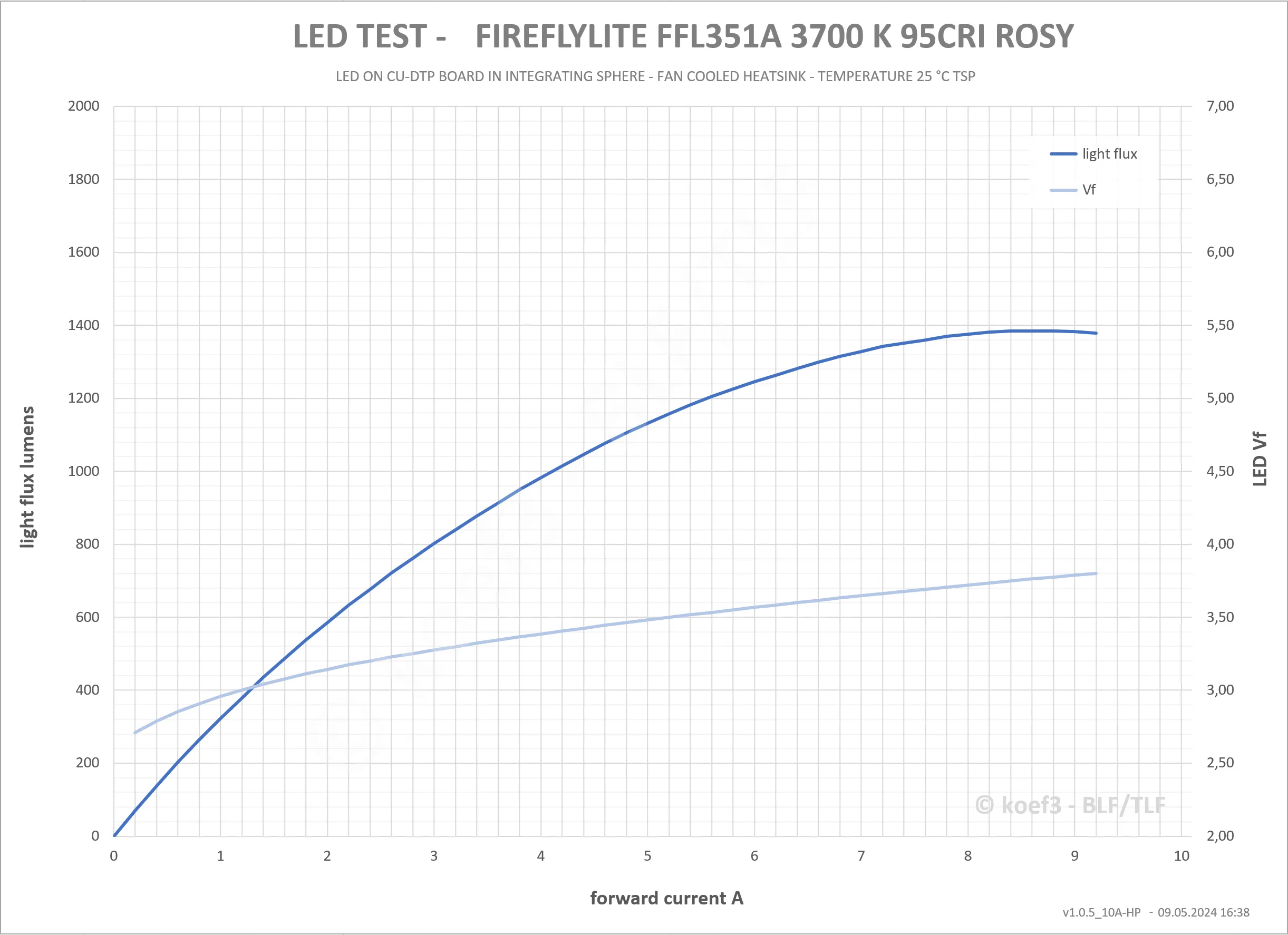

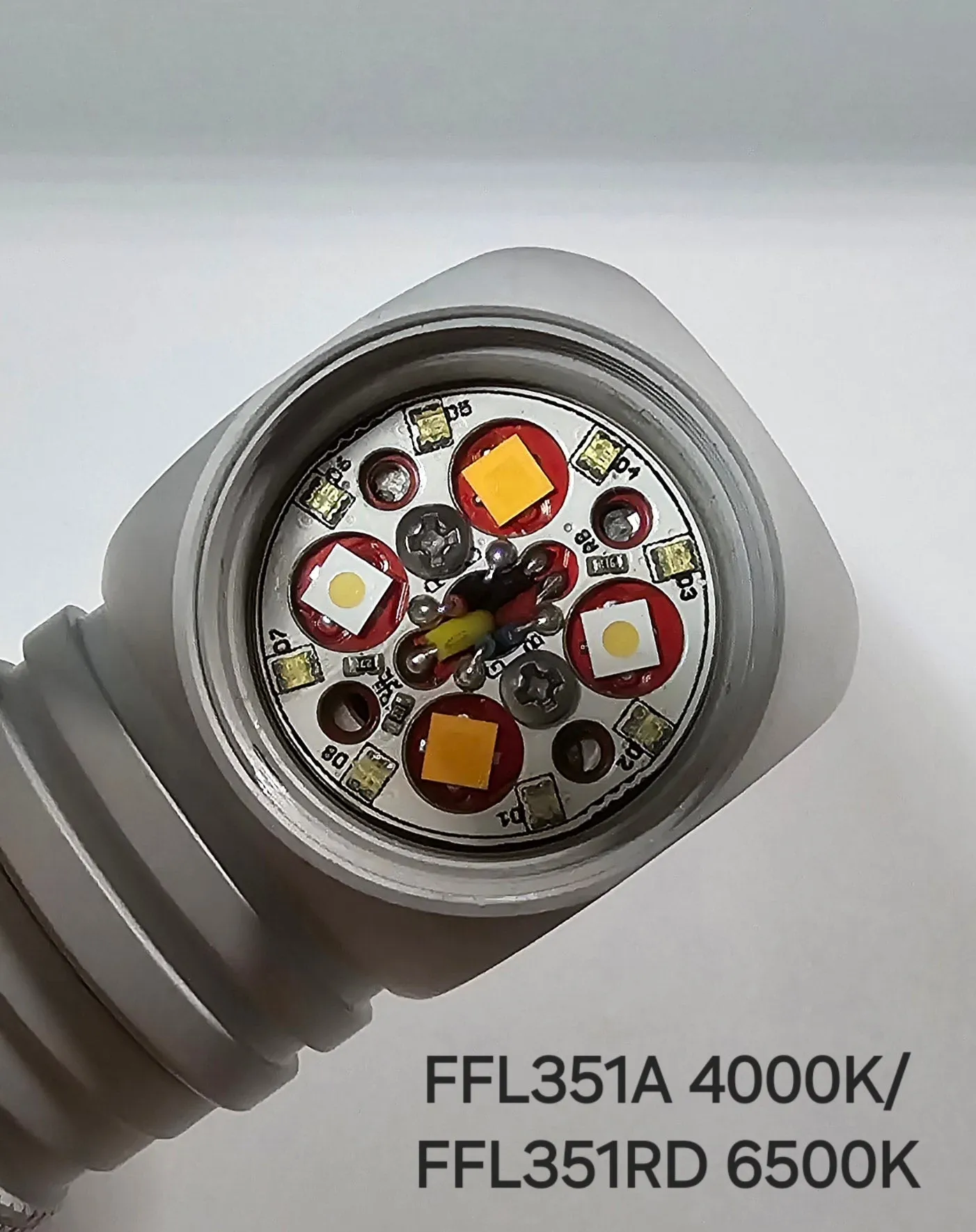

FFL351RD (ROUND DIE):

3535SMD

ROUND DIE

HIGH INTENSITY (INCREASED THROW)

WORKS BEST WITH SPOT OPTICS

900-1000LM

95-96CRI

4A MAX

6A PEAK (GOOD THERMO COOLING)

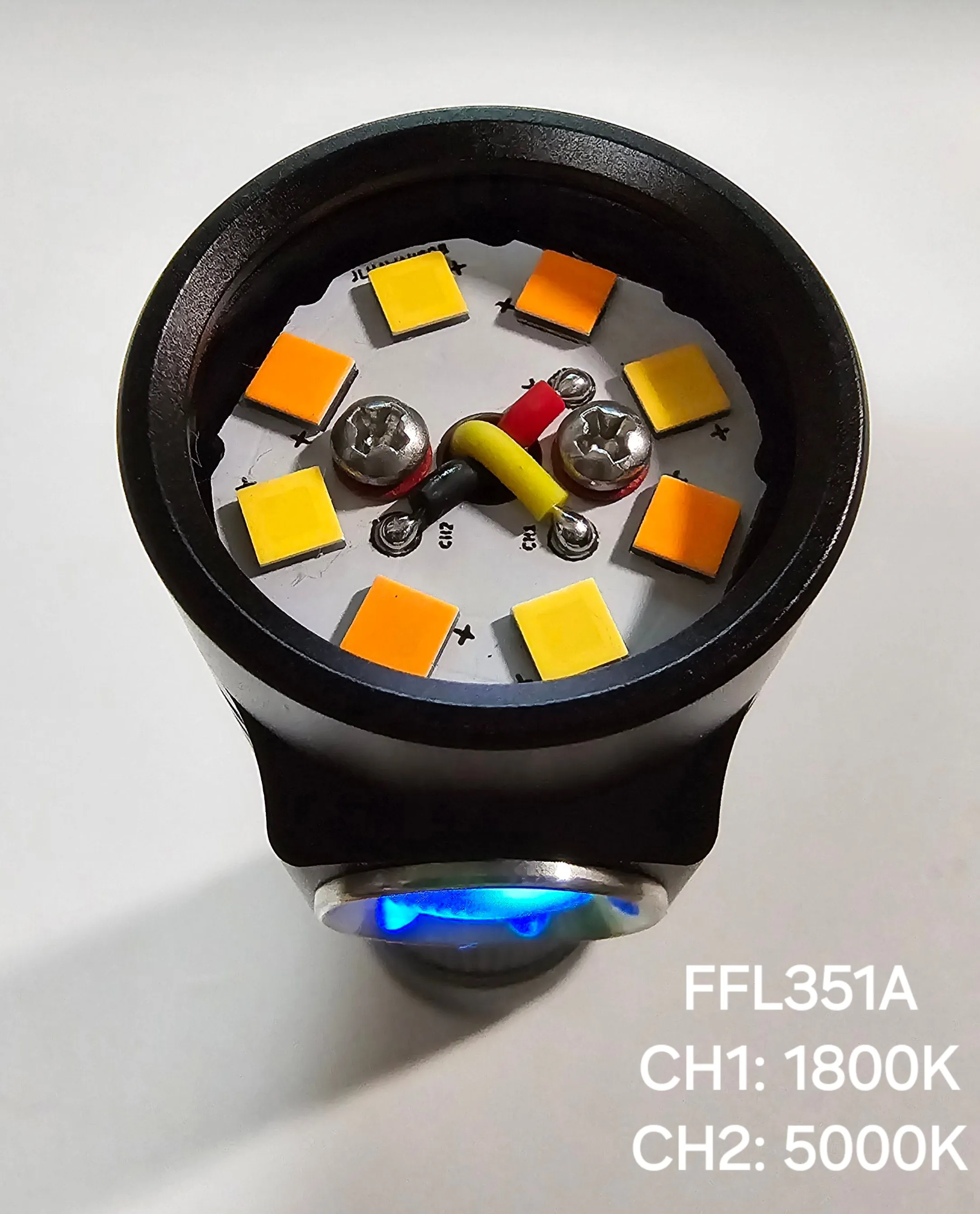

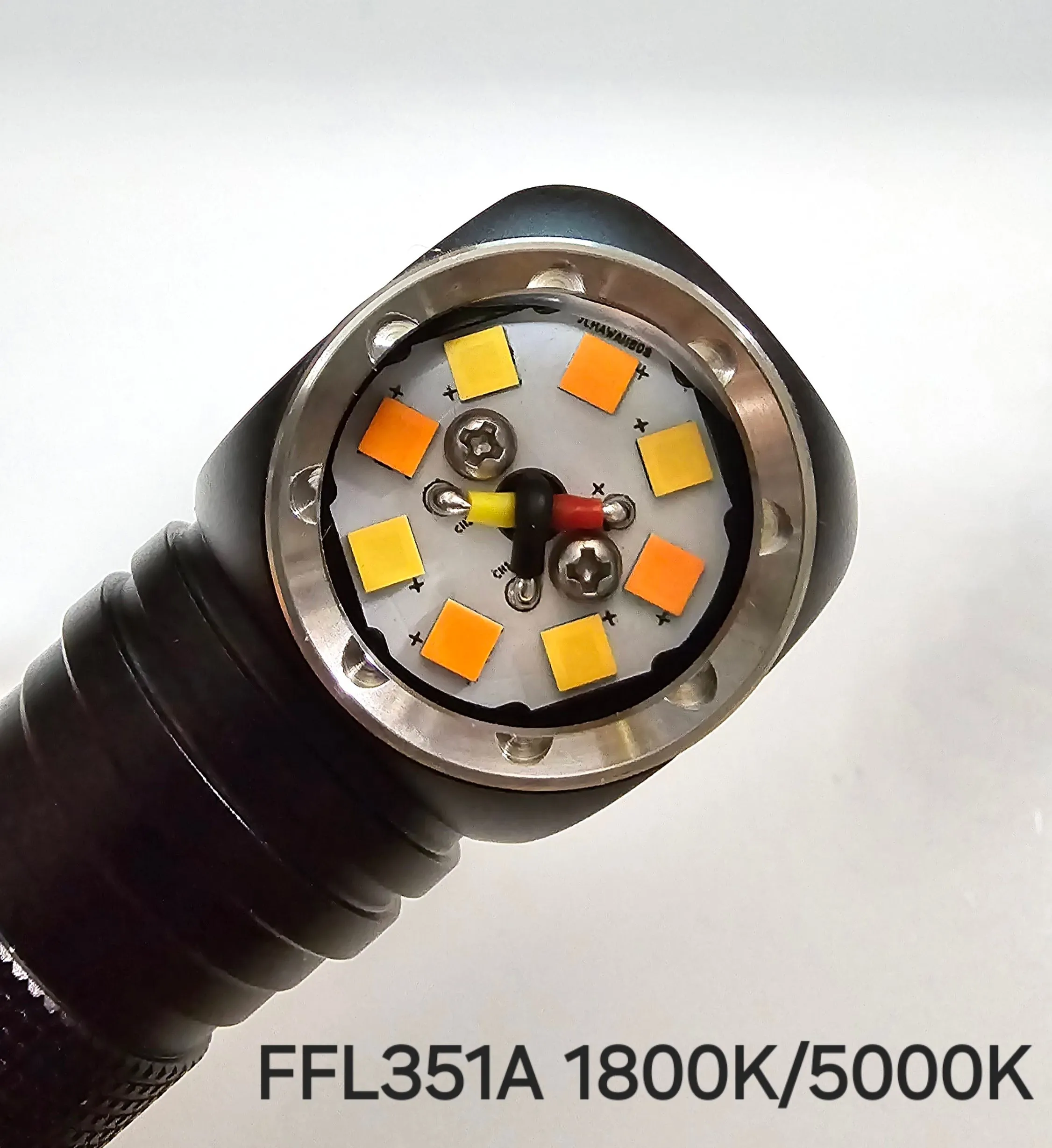

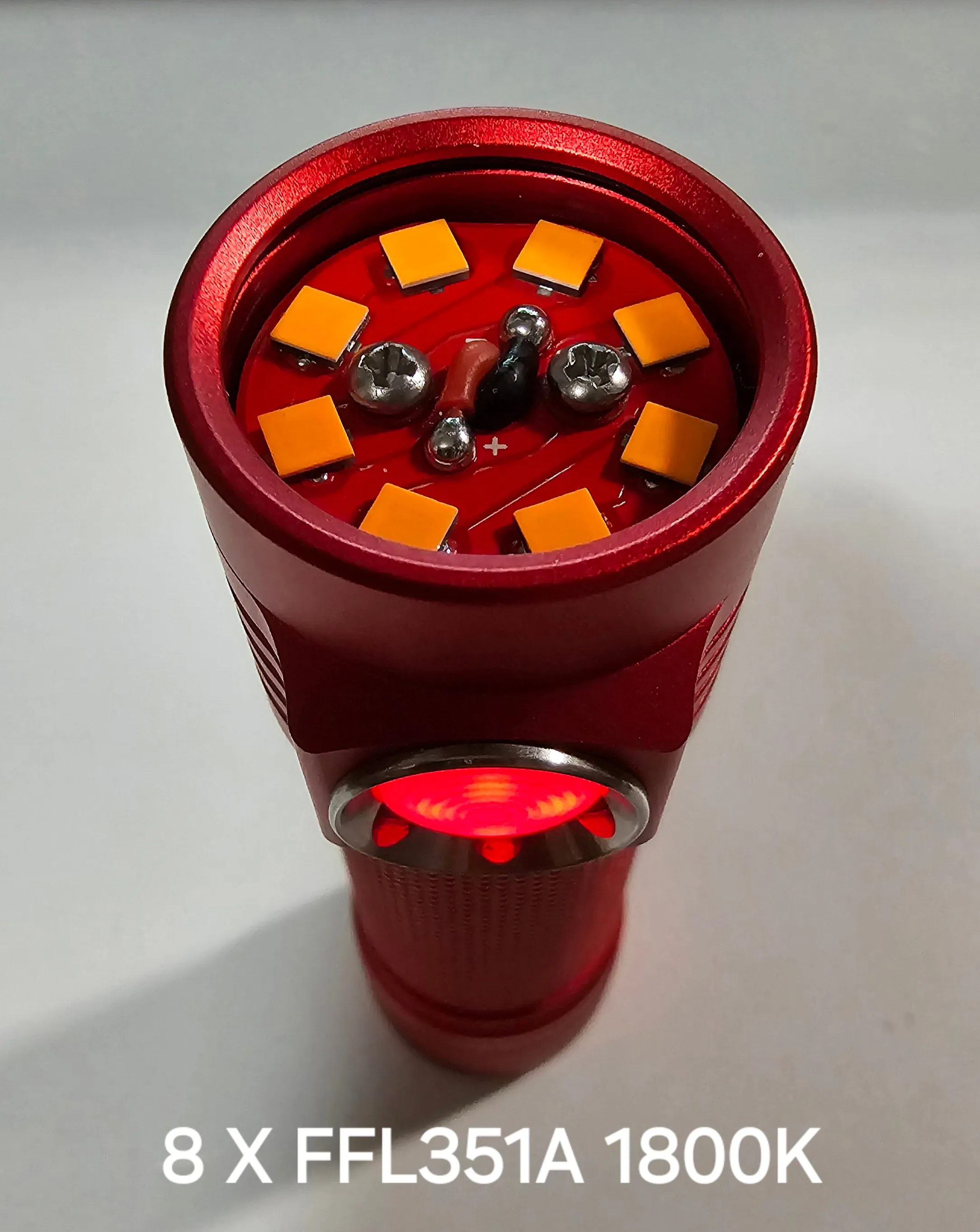

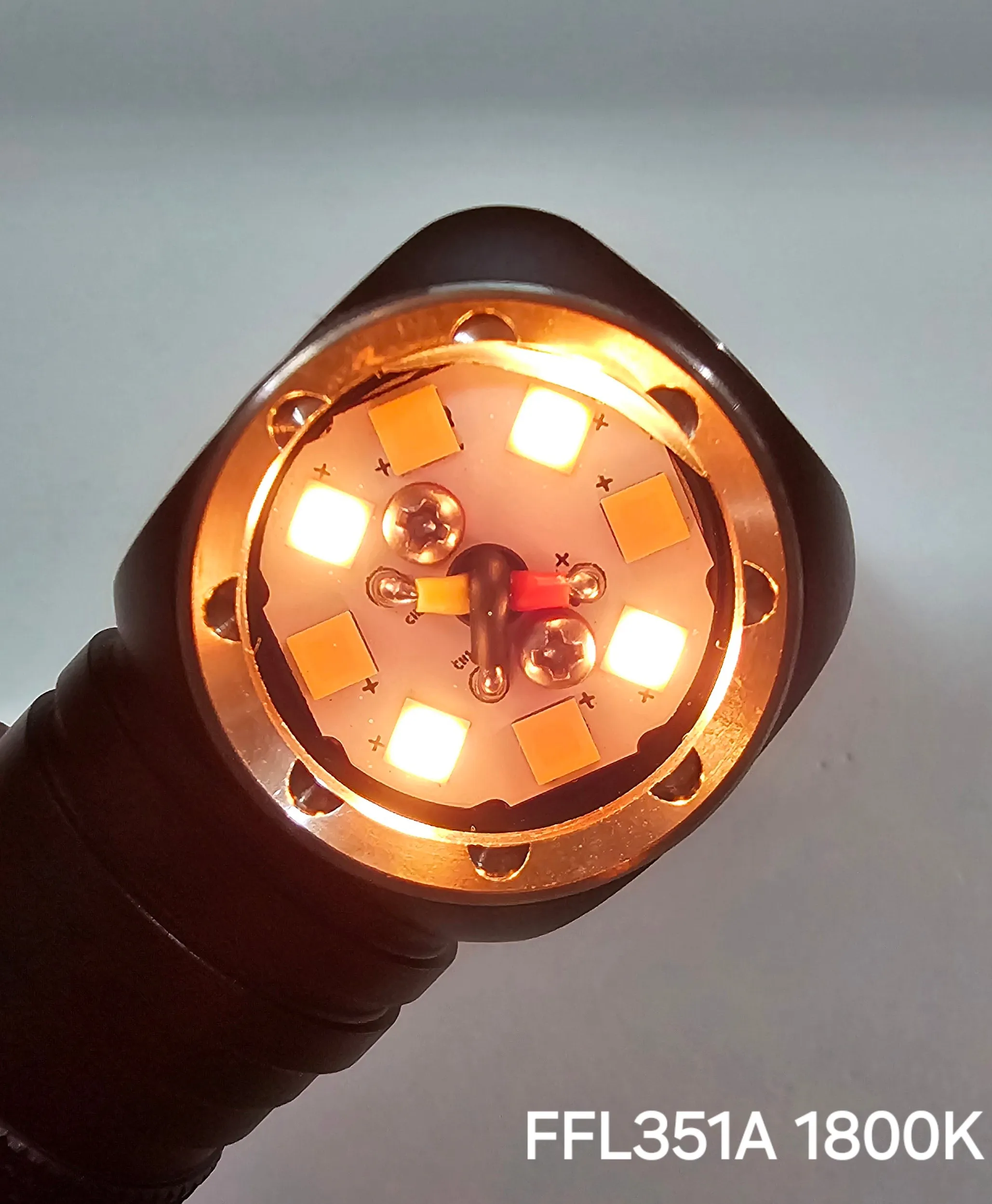

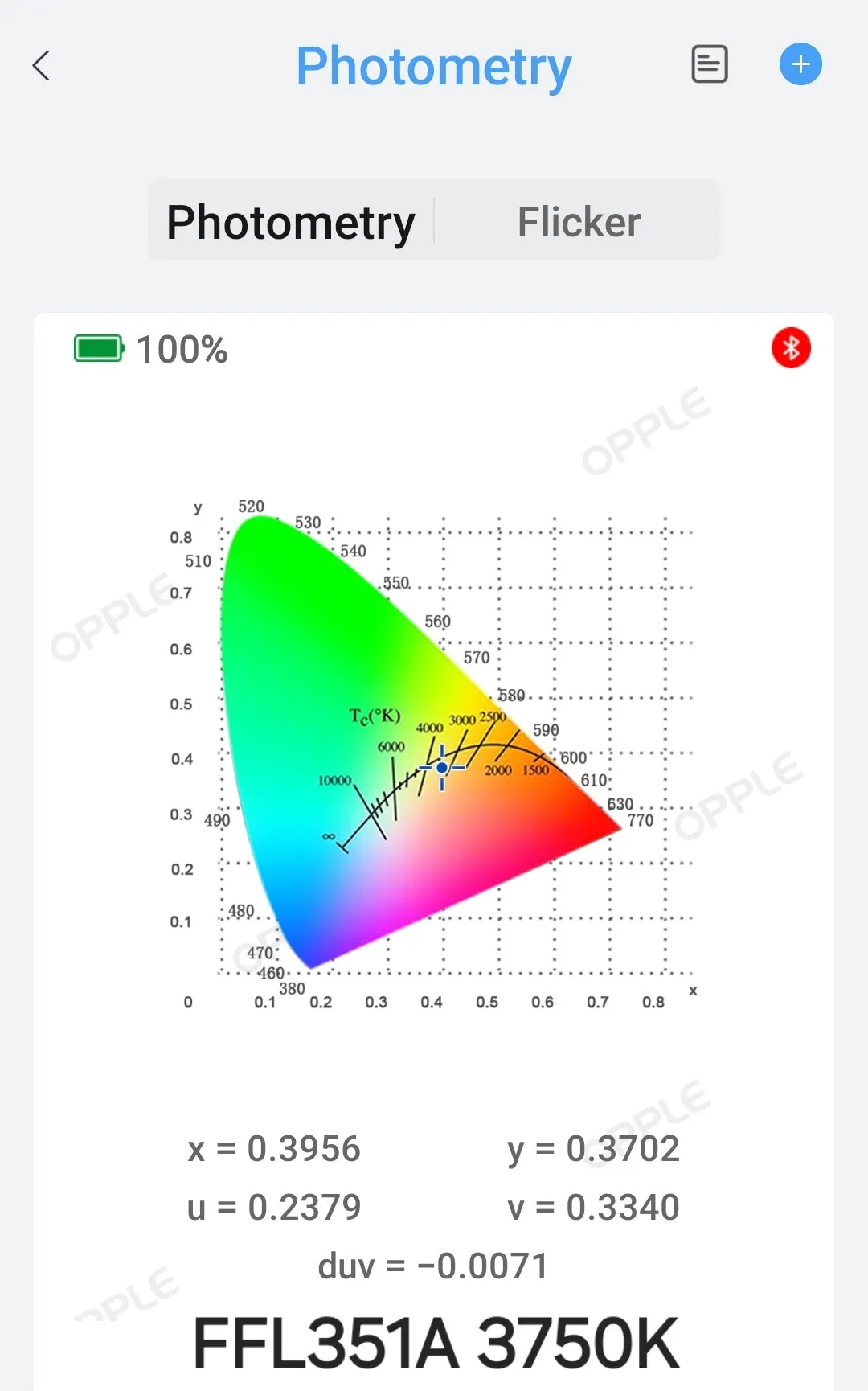

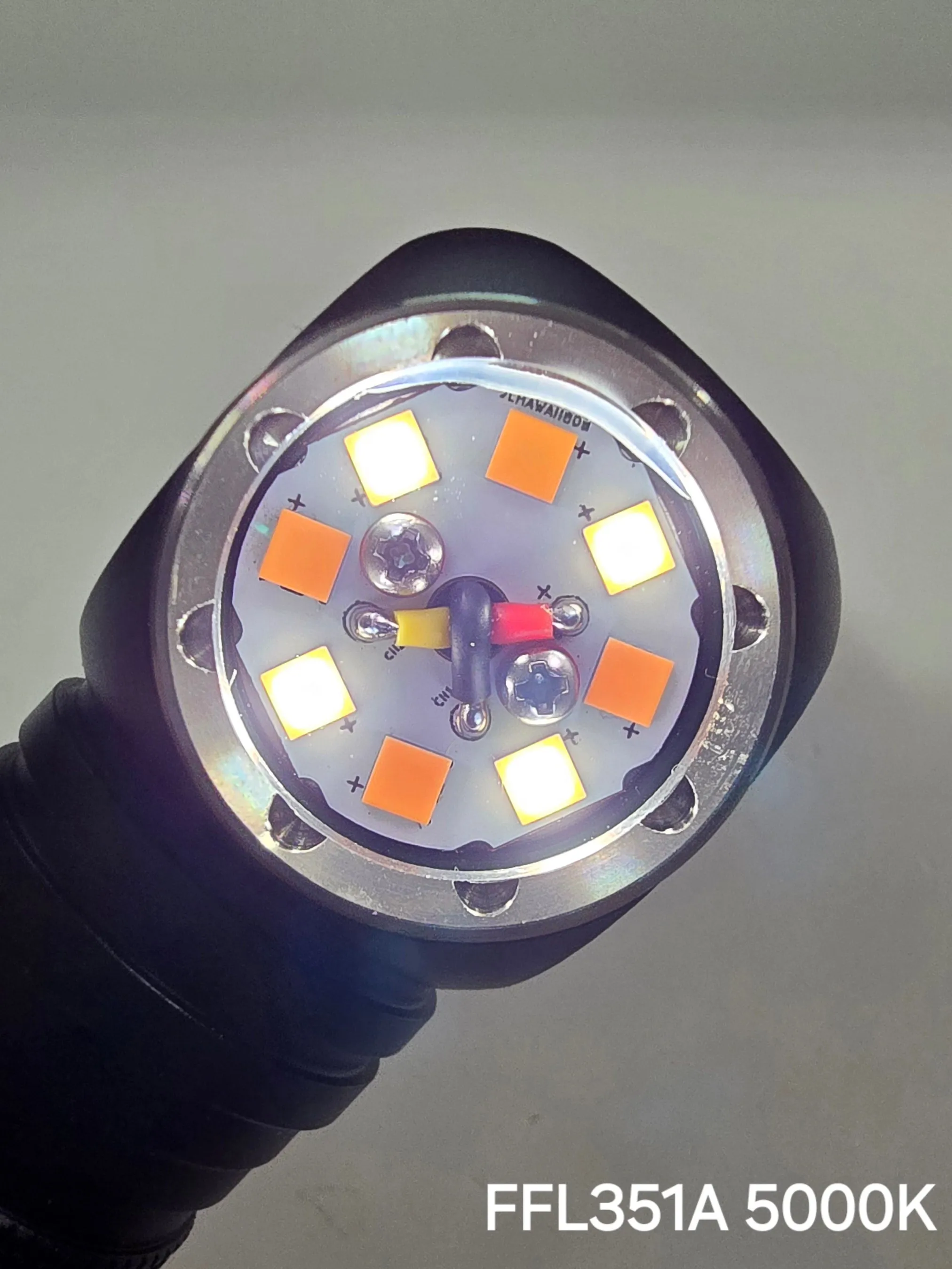

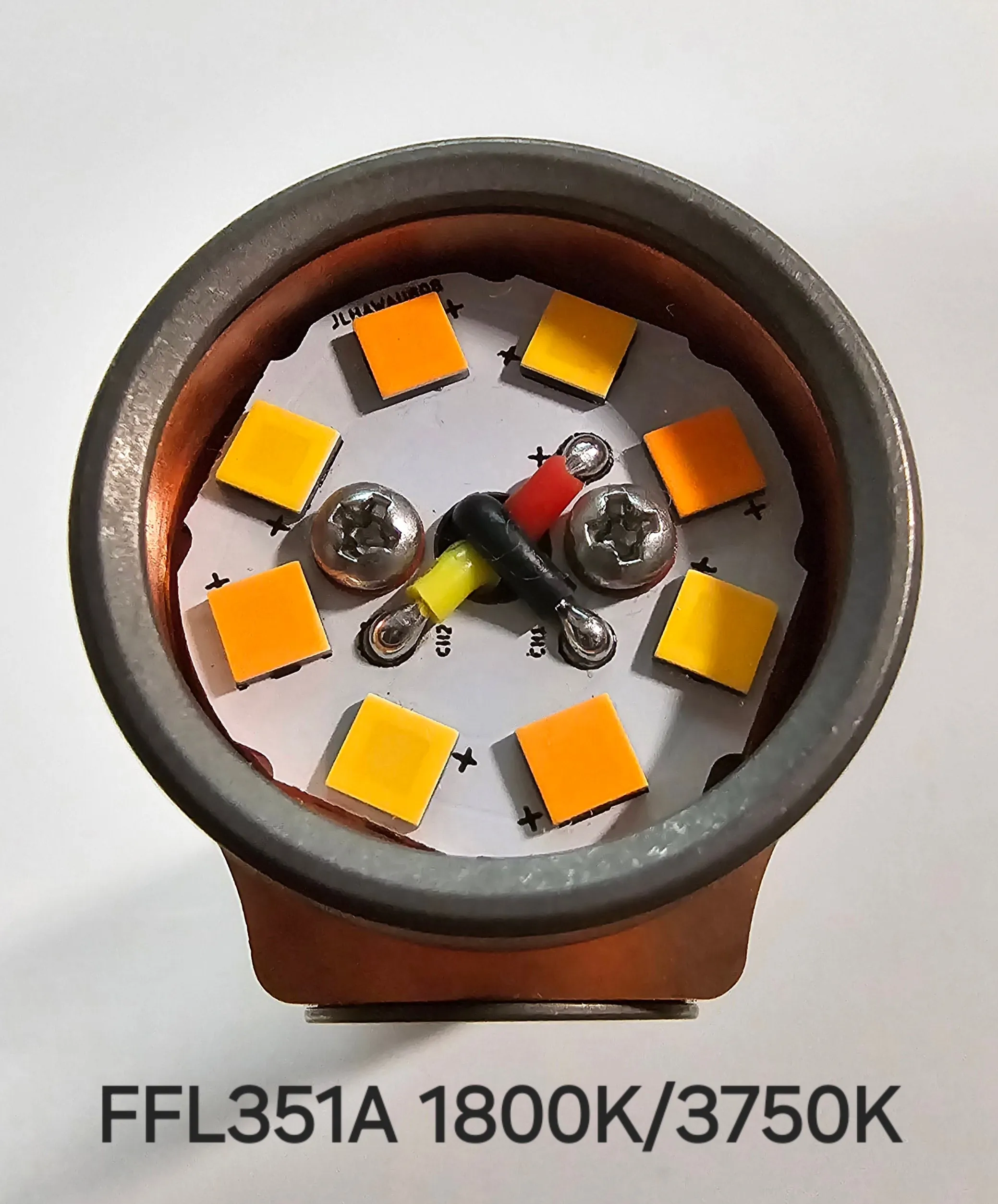

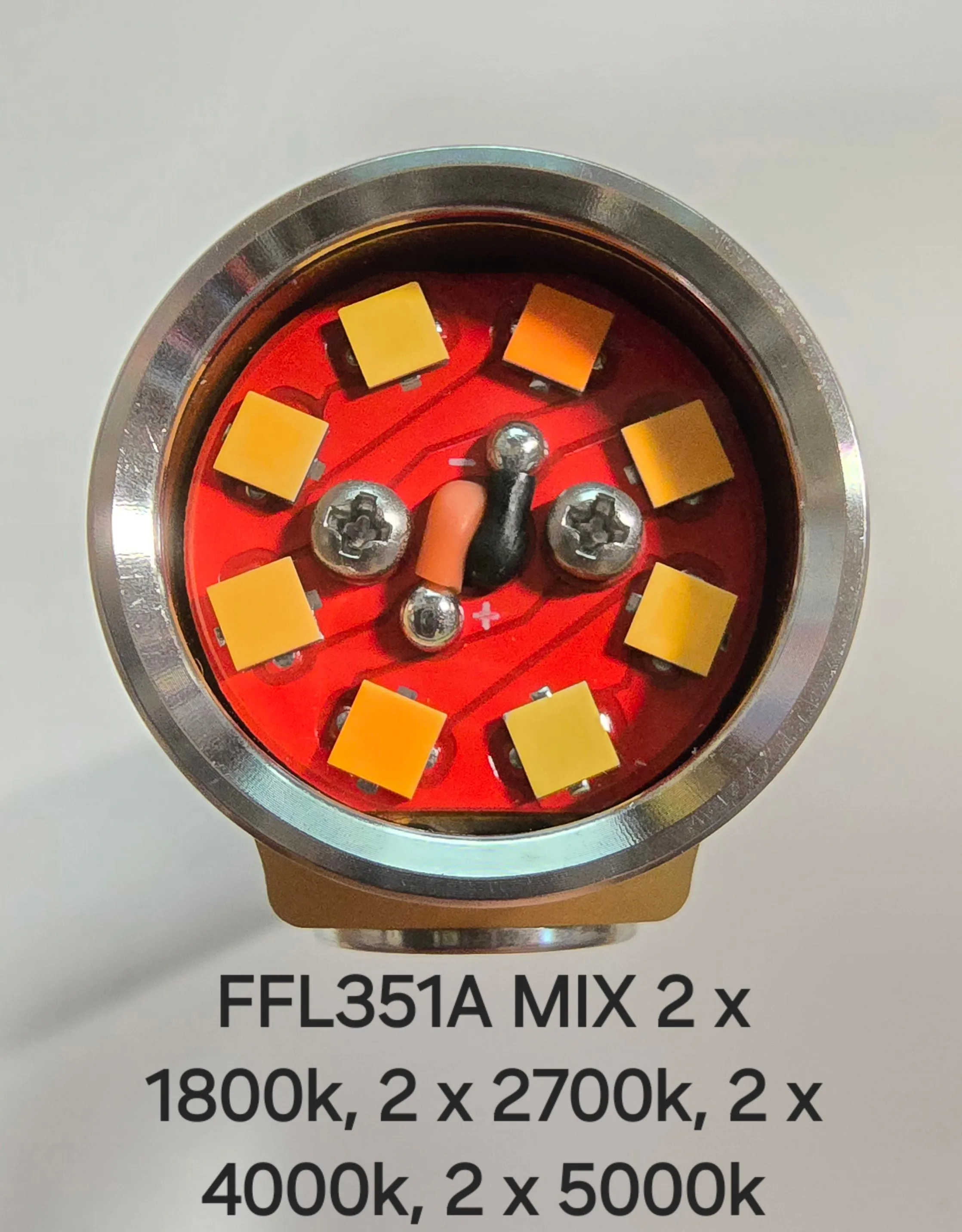

FFL351A 1800K SPECS:

80LM @ .35A

230LM @ 1A

4A MAX

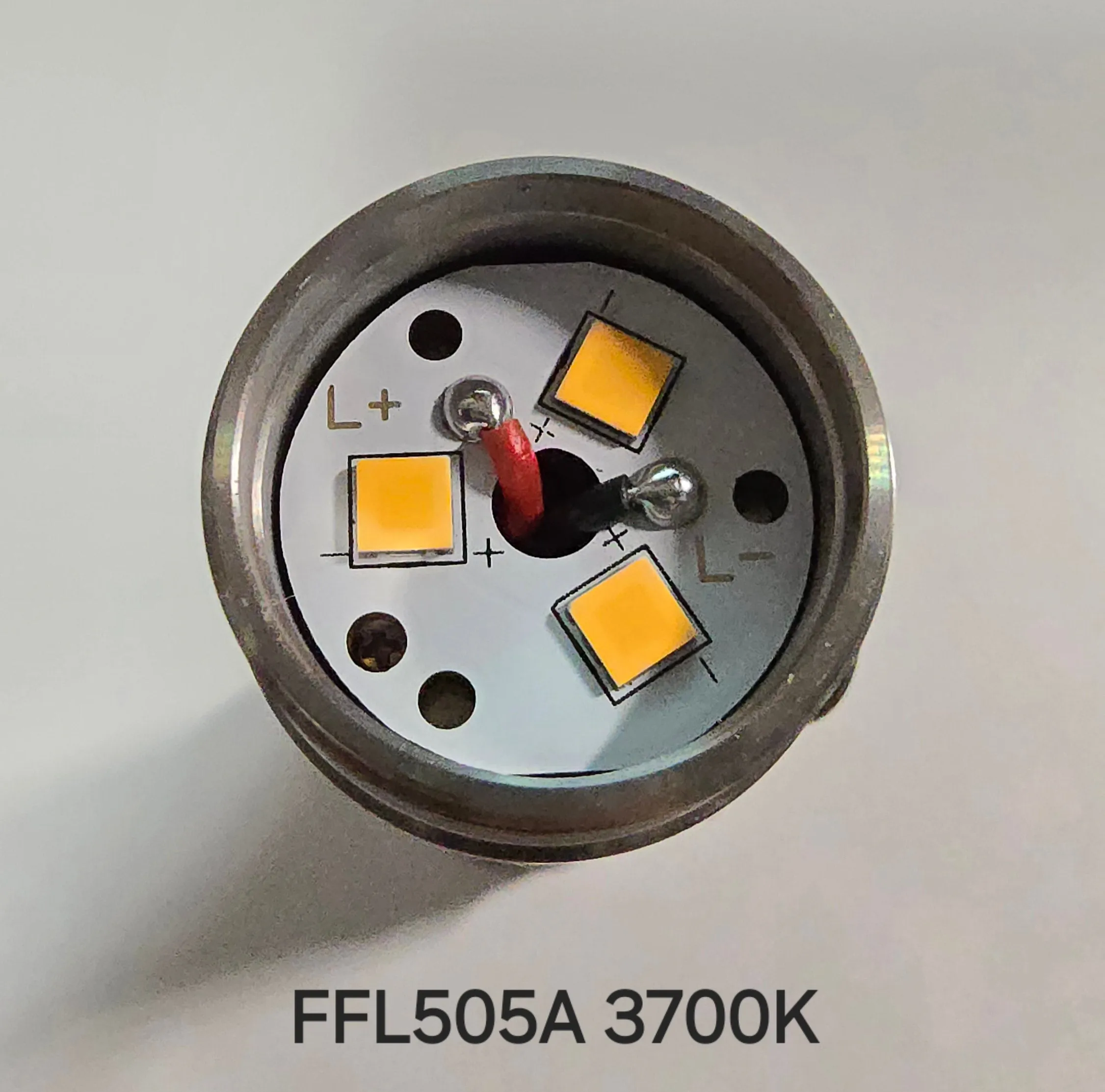

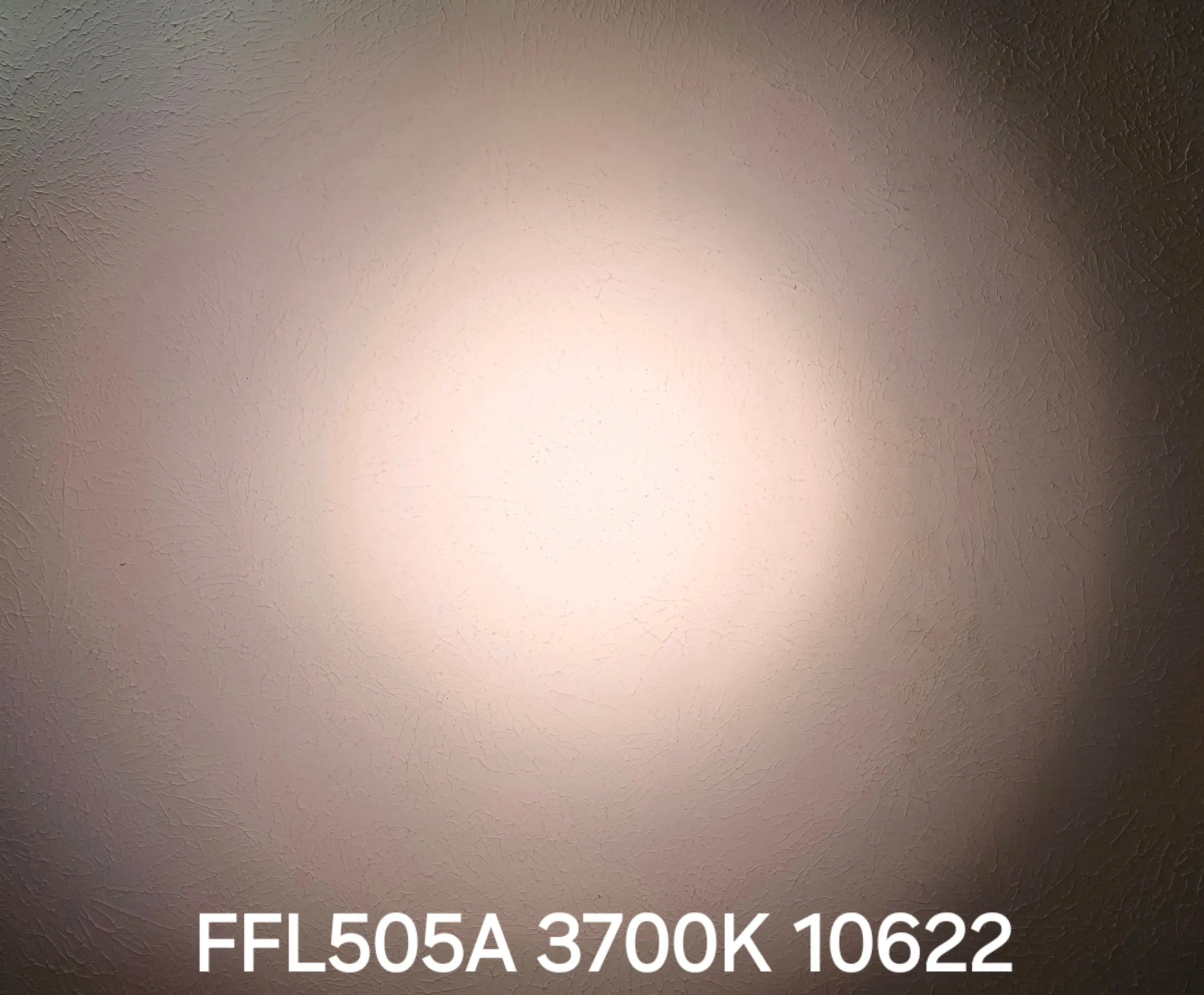

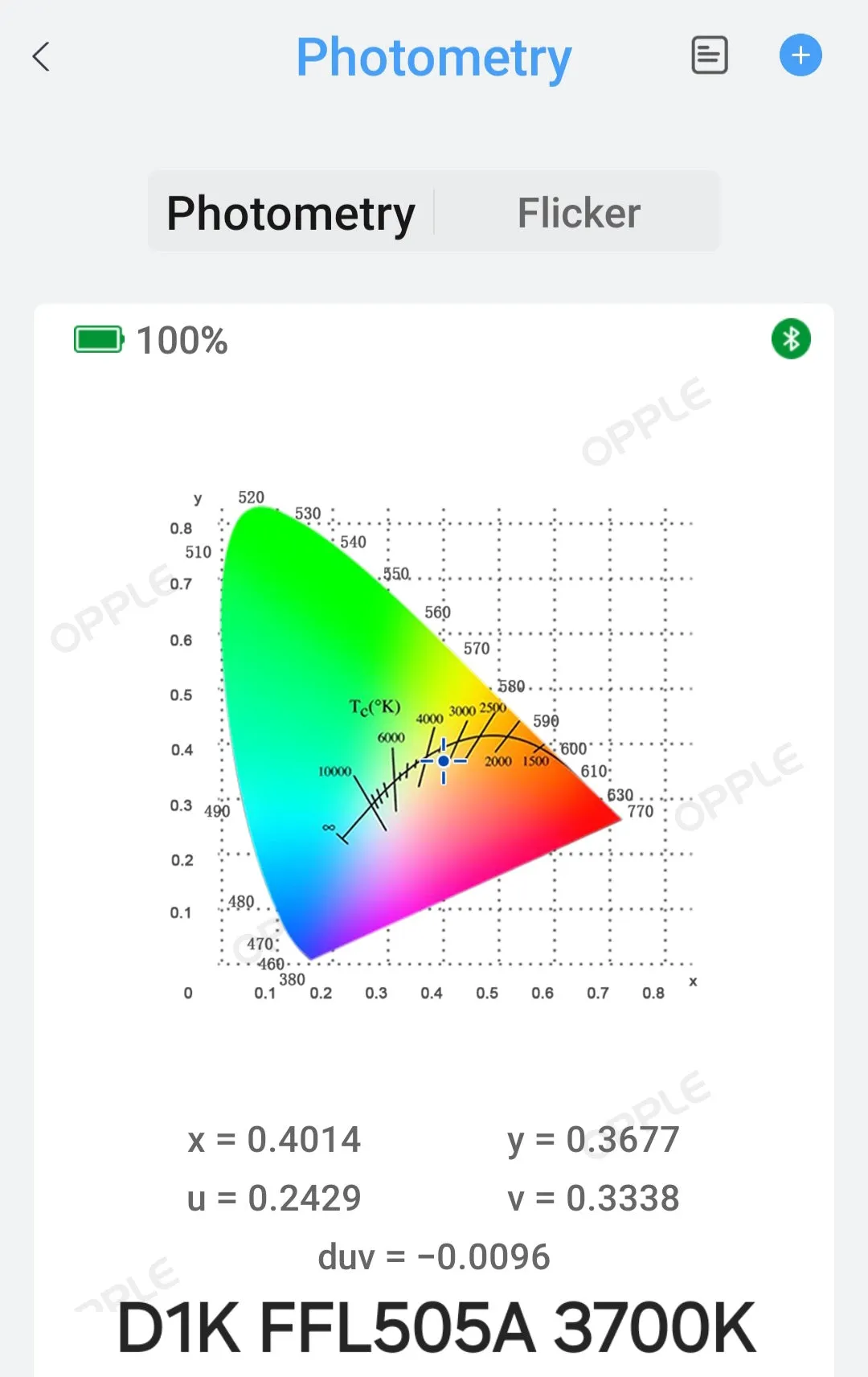

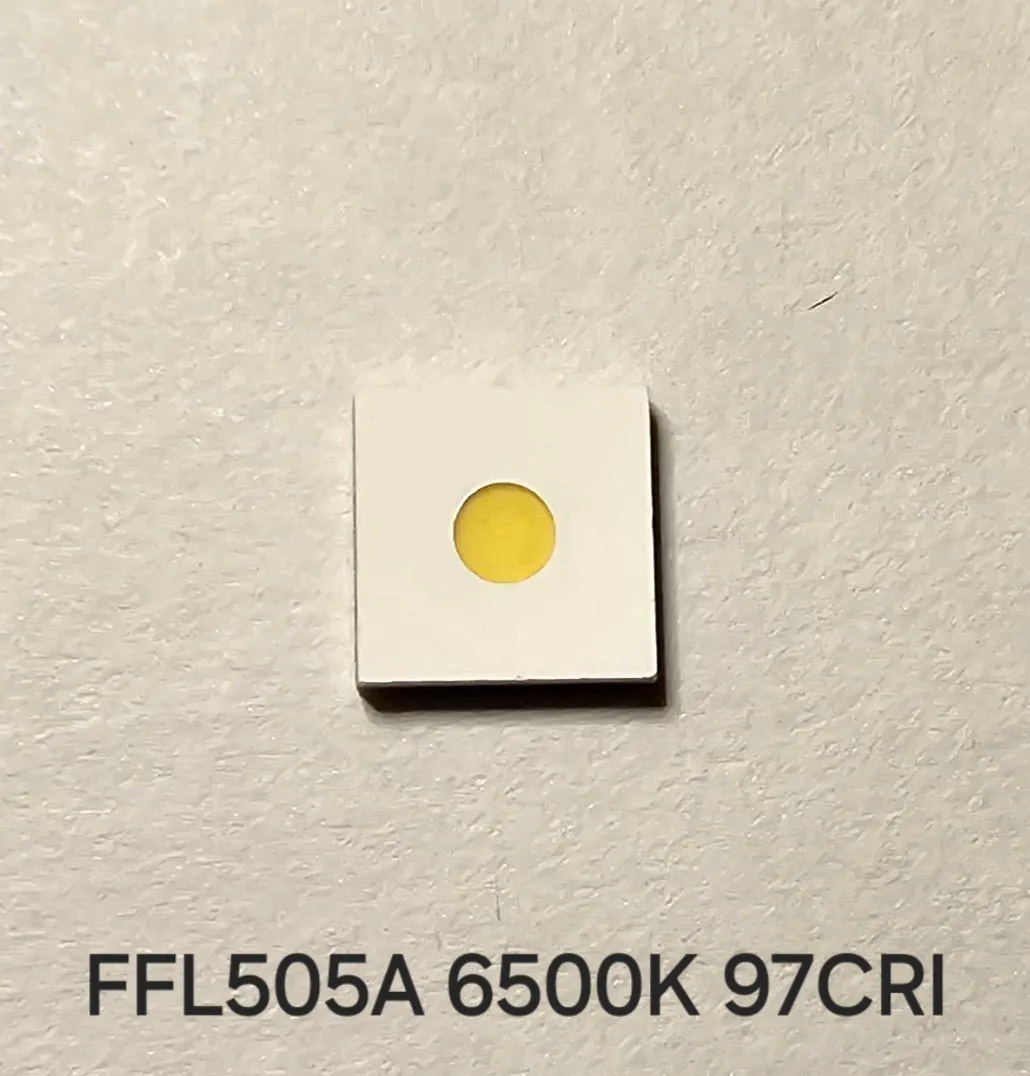

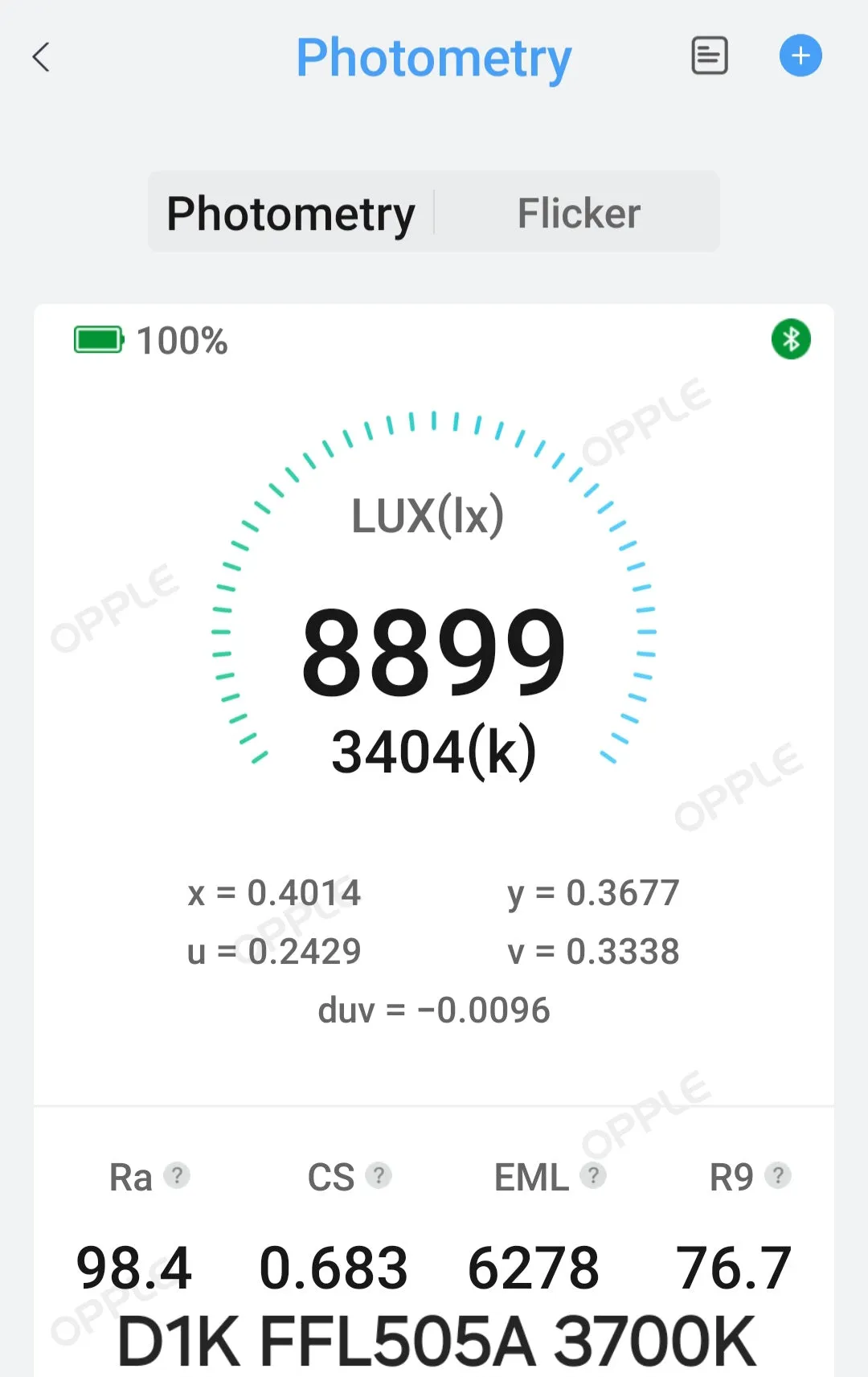

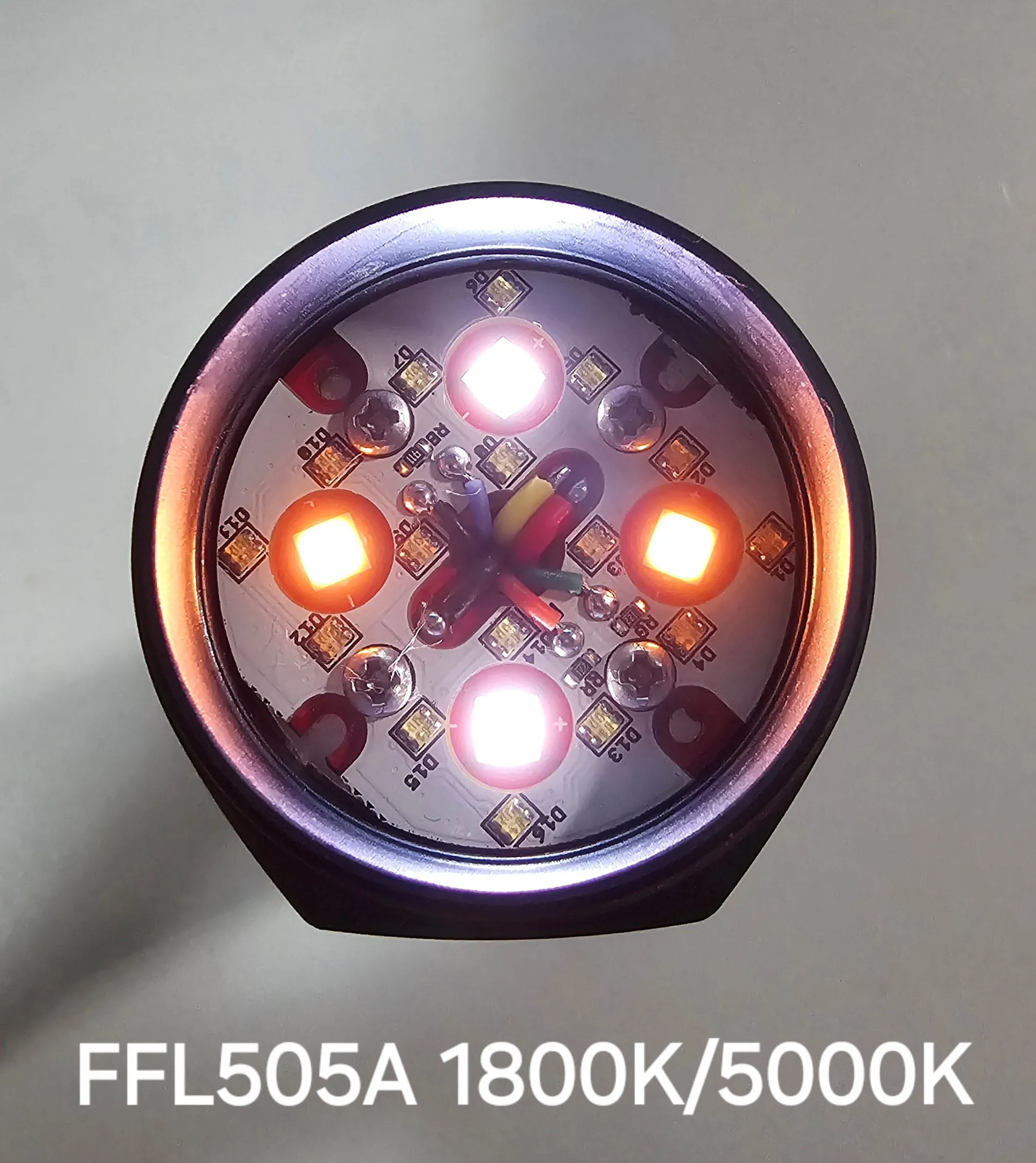

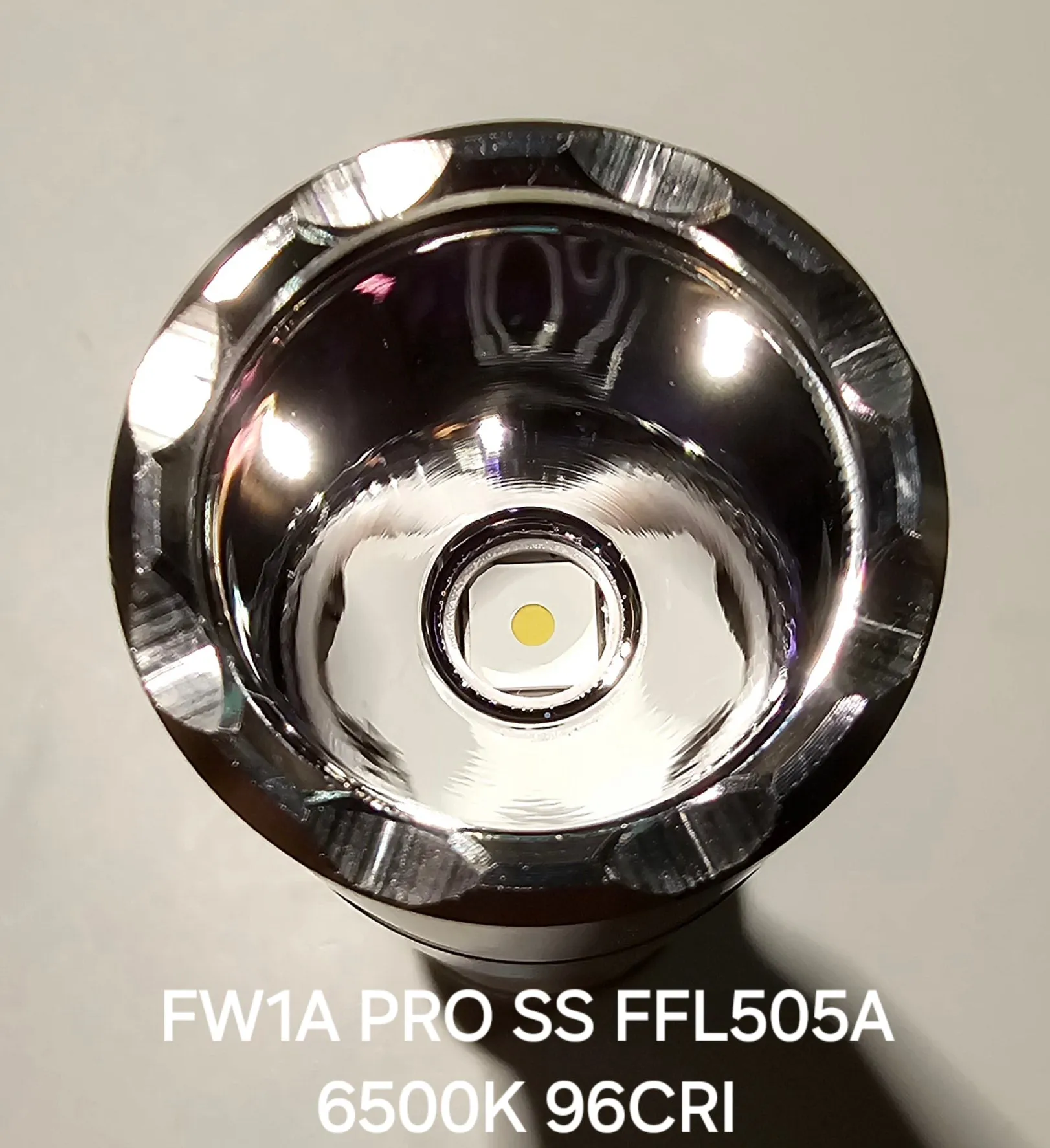

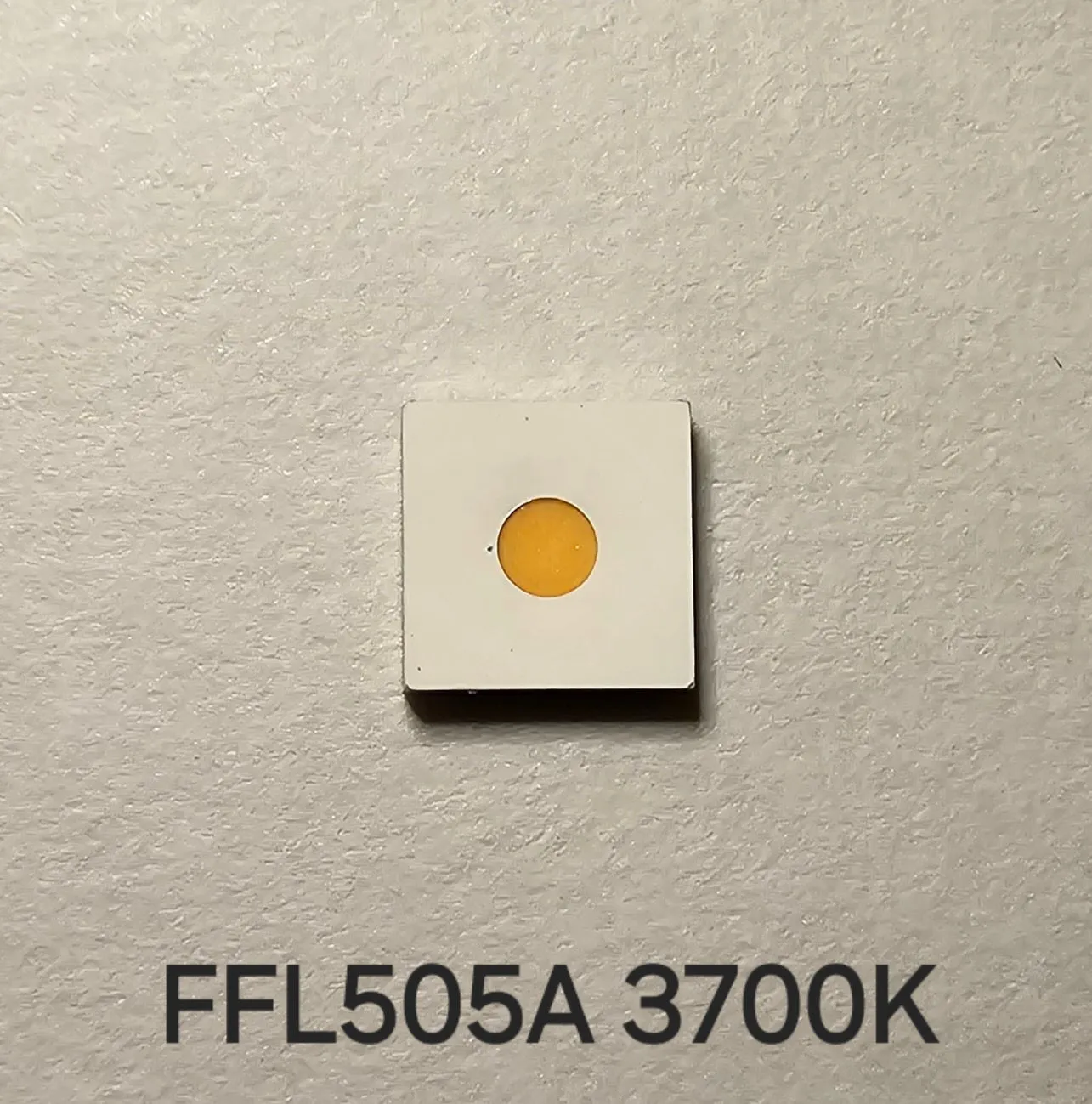

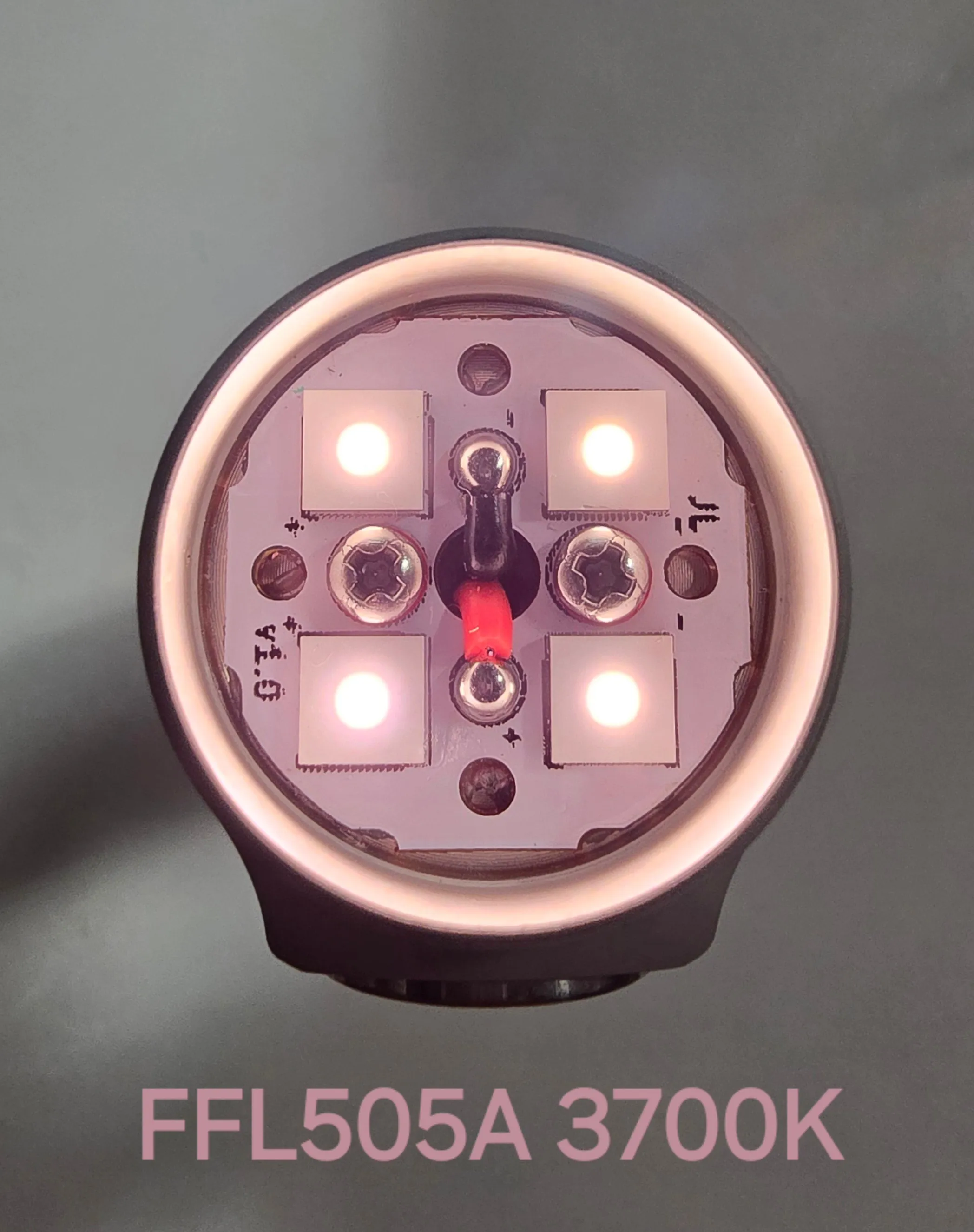

FFL505A SPECS:

5050SMD

3700K

6500K

8A MAX

1000LM

95-97CRI

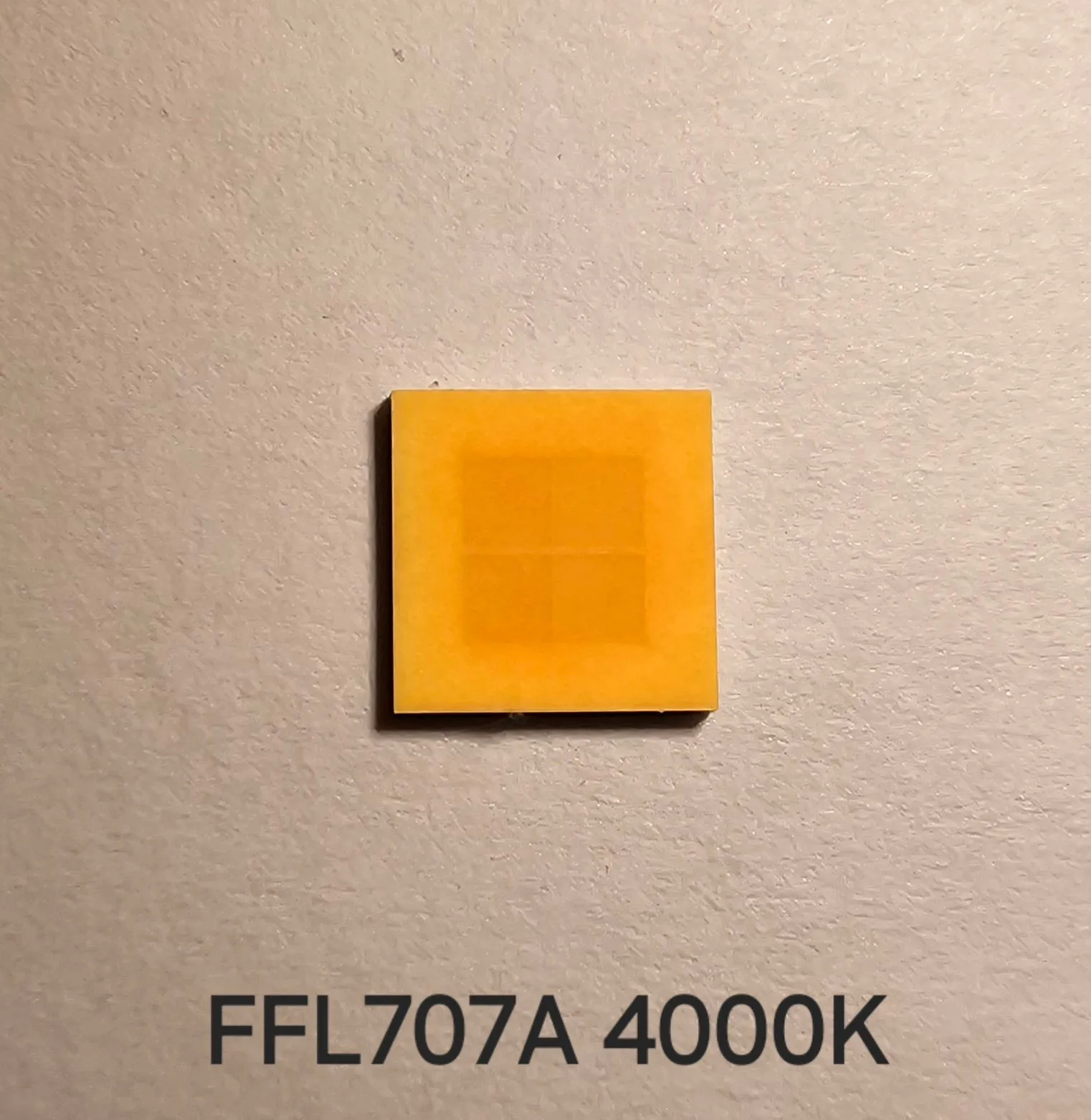

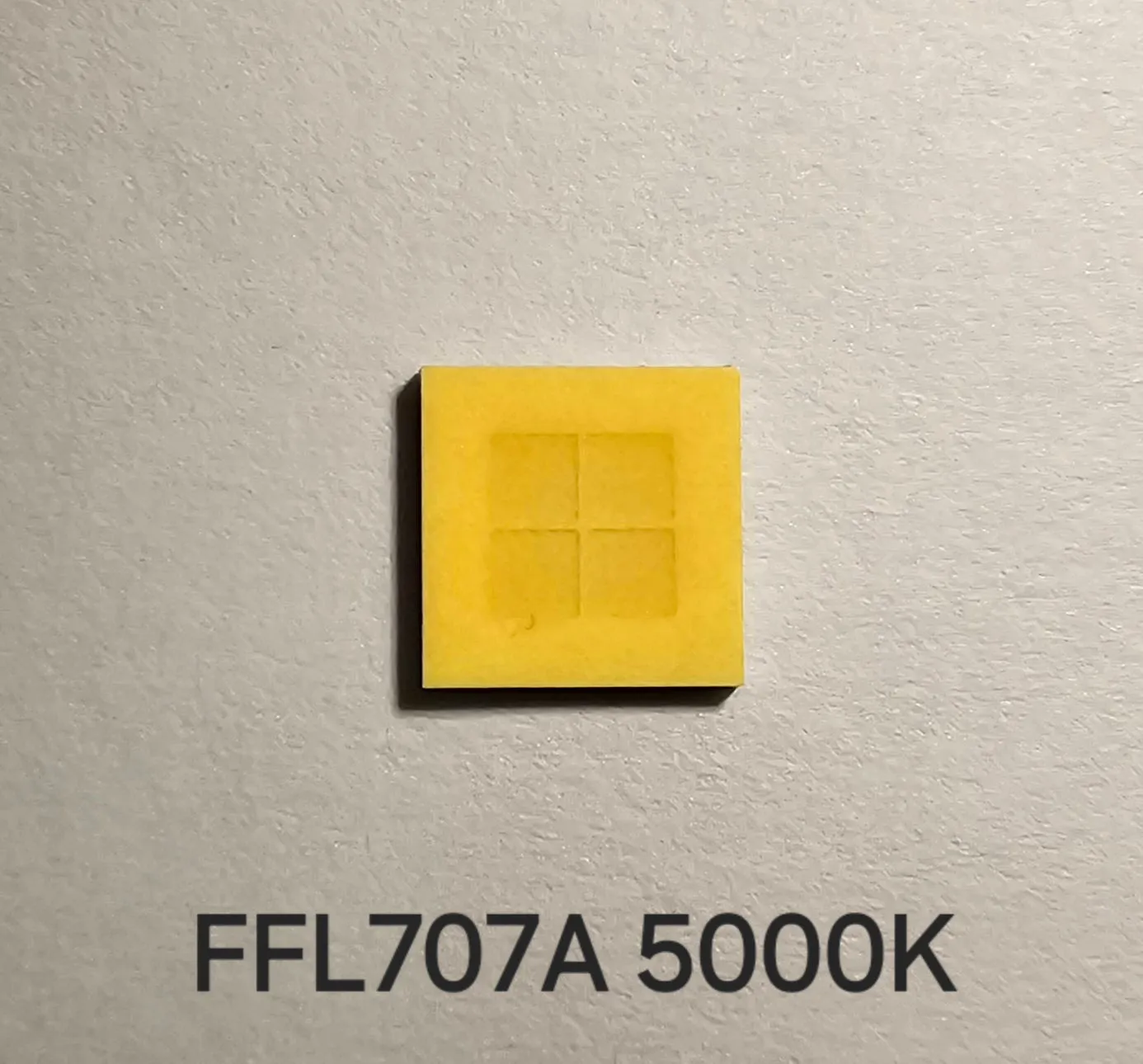

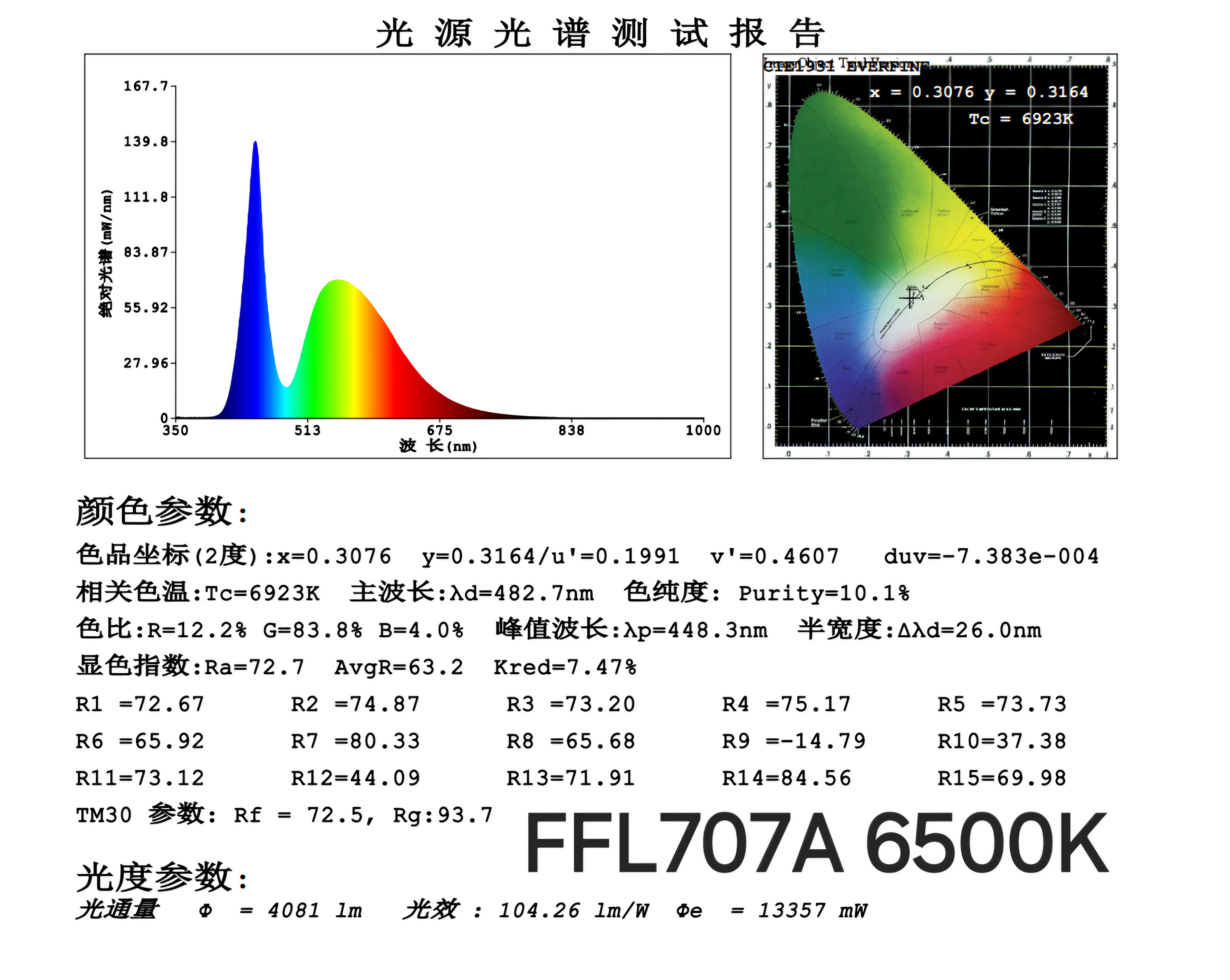

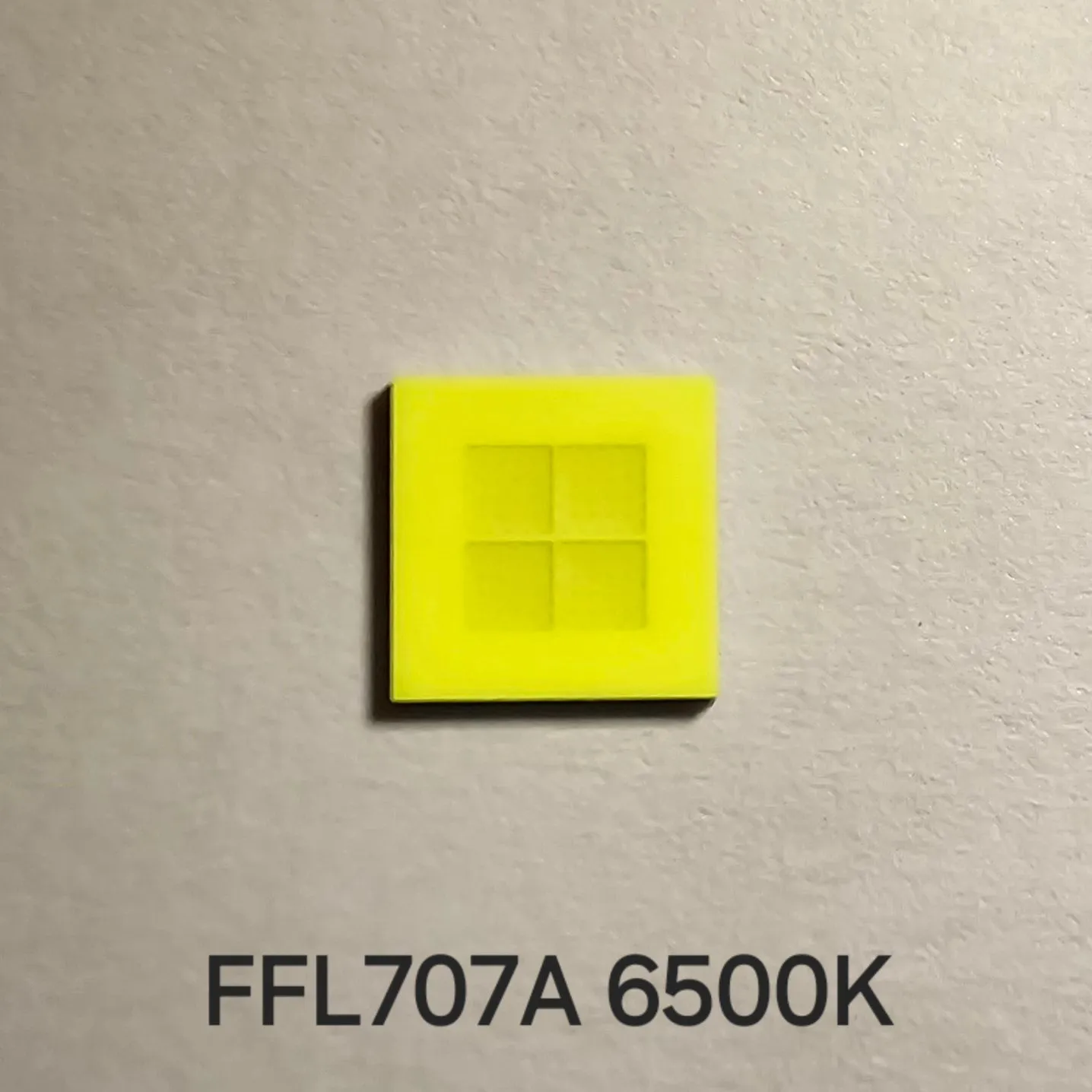

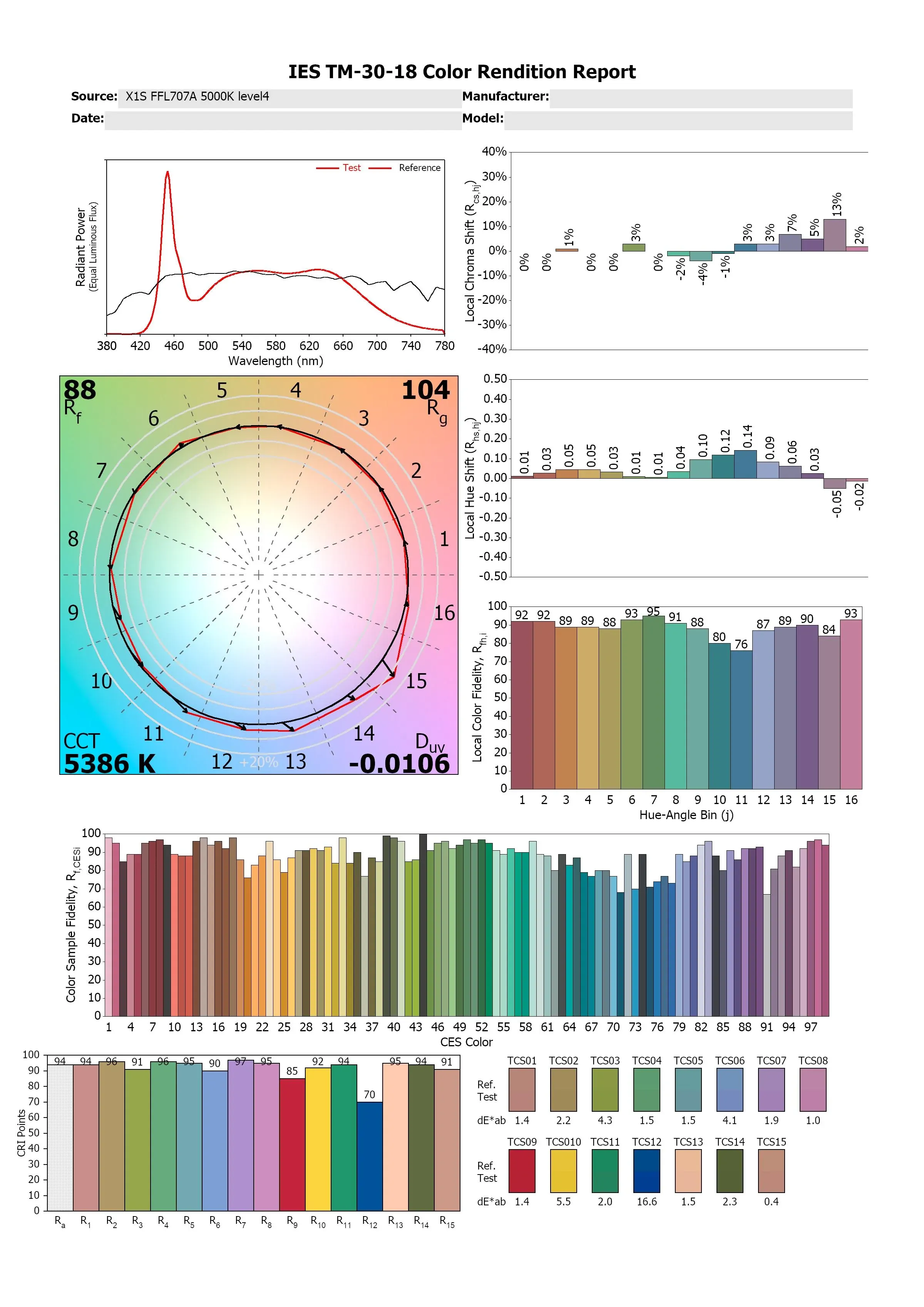

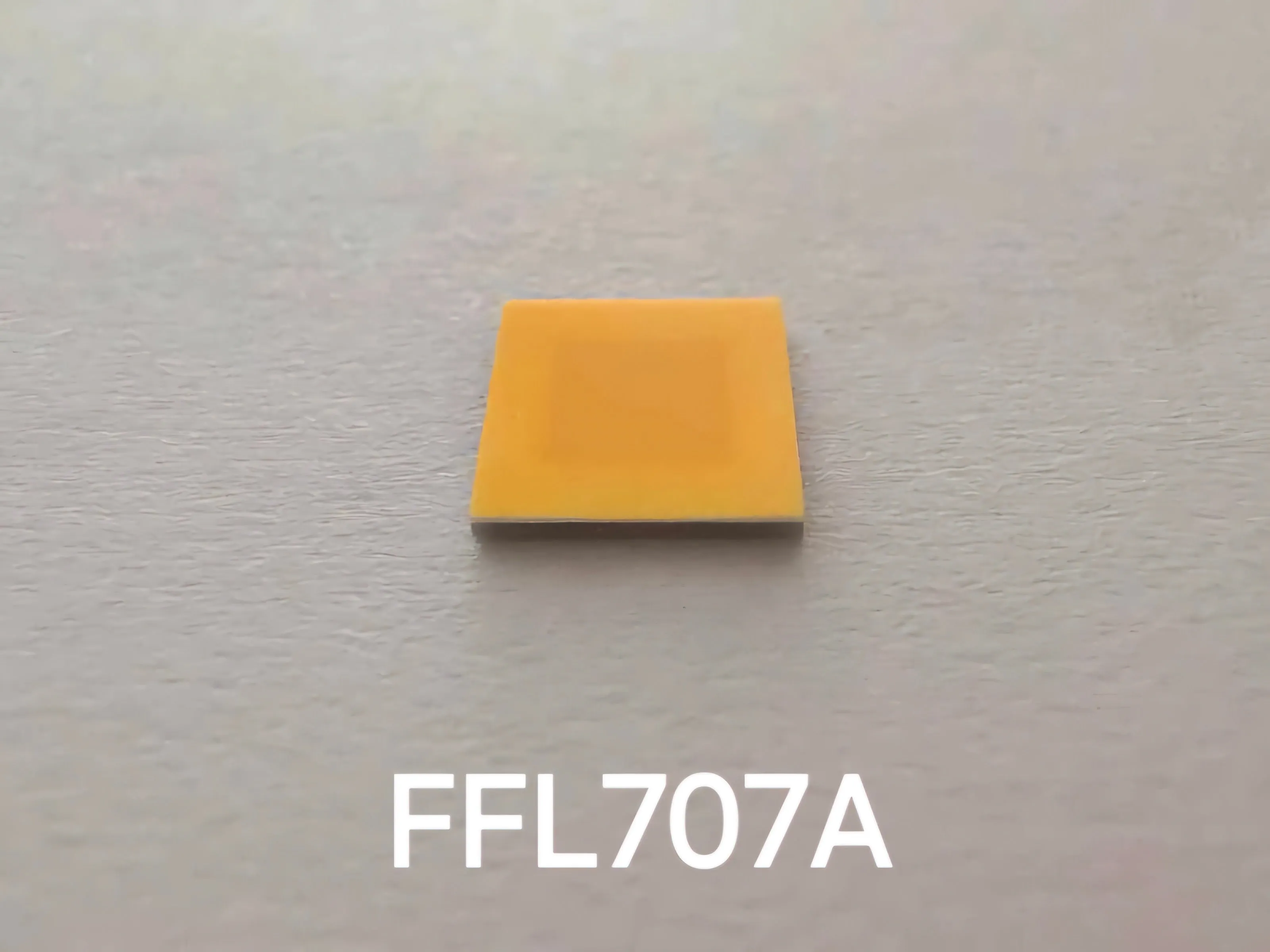

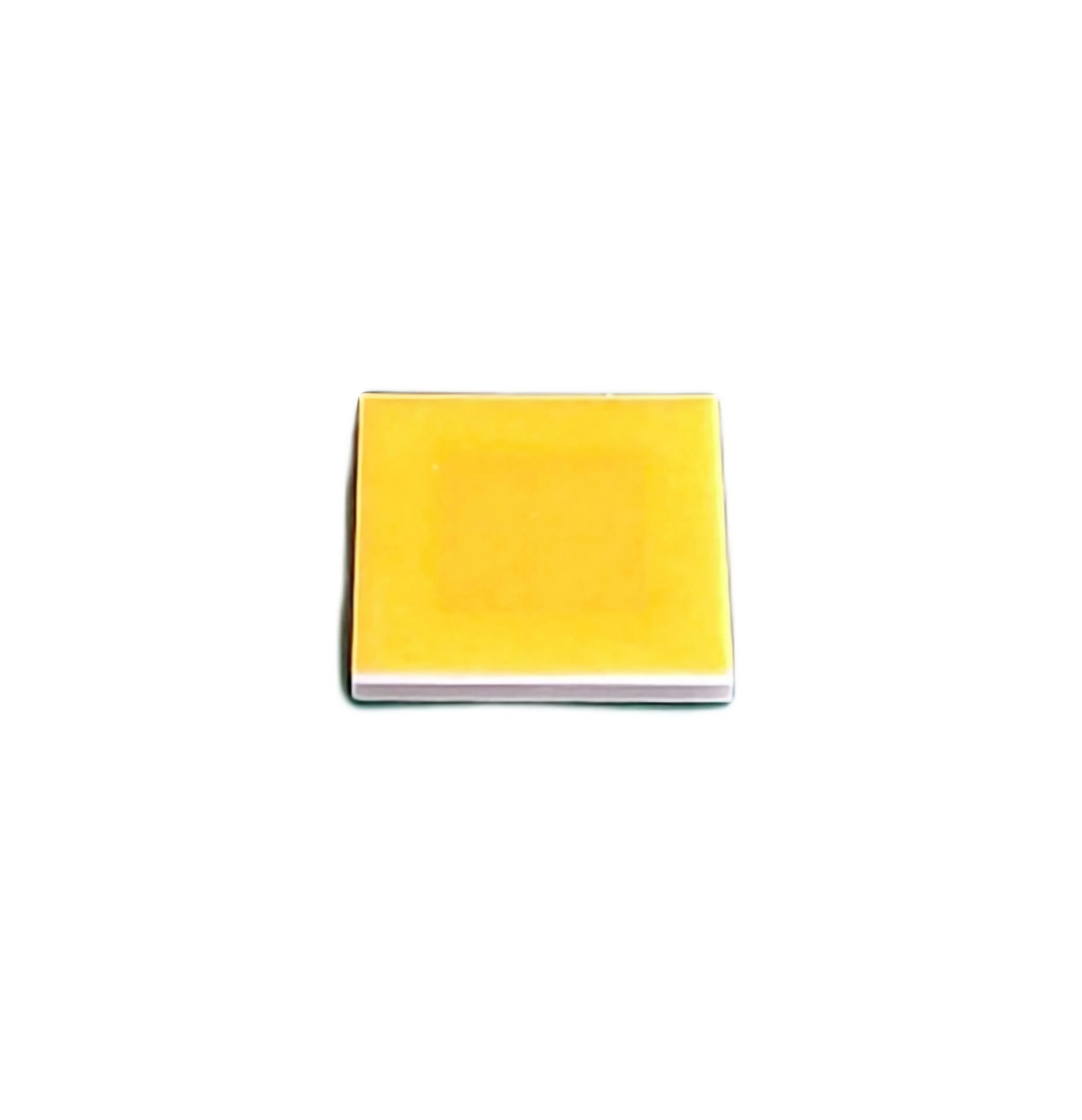

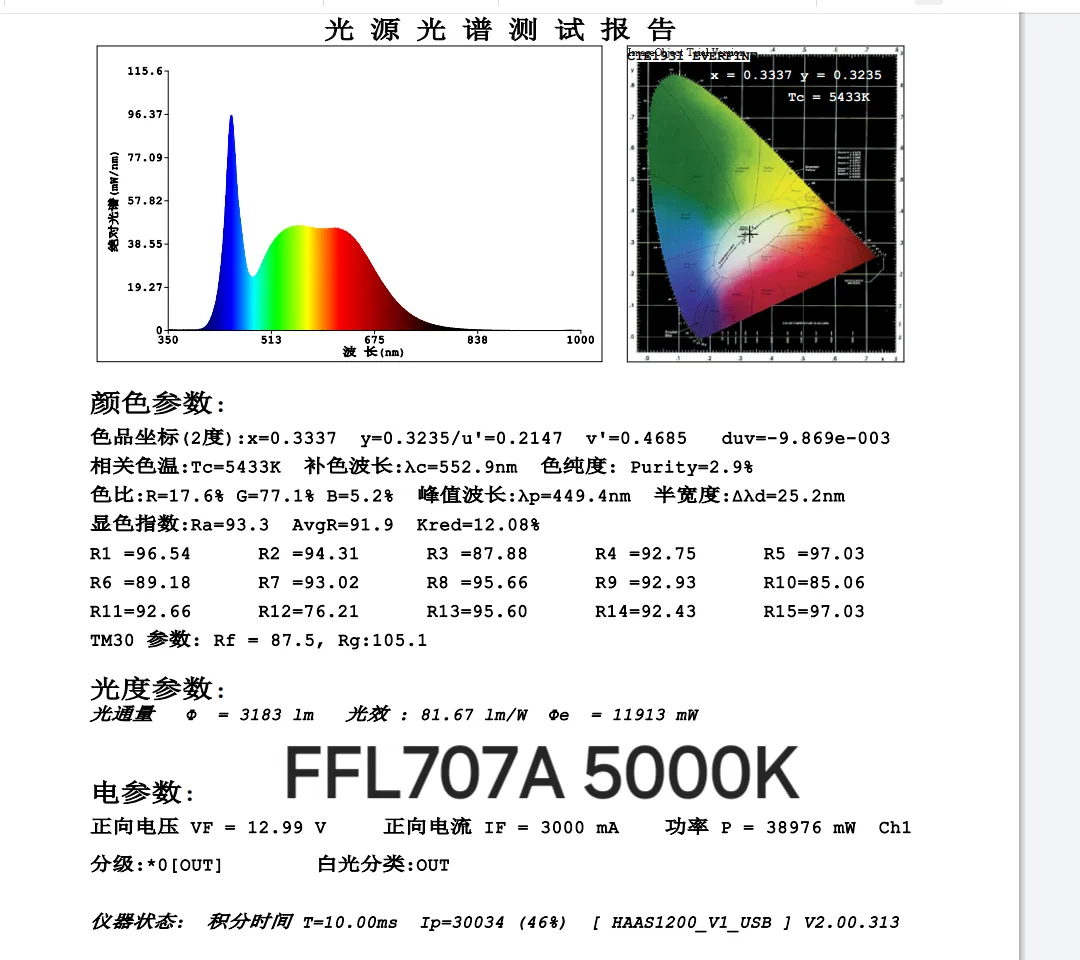

FFL707A SPECS:

7070SMD

7MM X 7MM

40W

6V

6.5A

8A MAX

6500K 70CRI @ 4200LM

5000K 95CRI @ 3200LM

4000K @ 95CRI @ 3000LM (ROSY BIN)

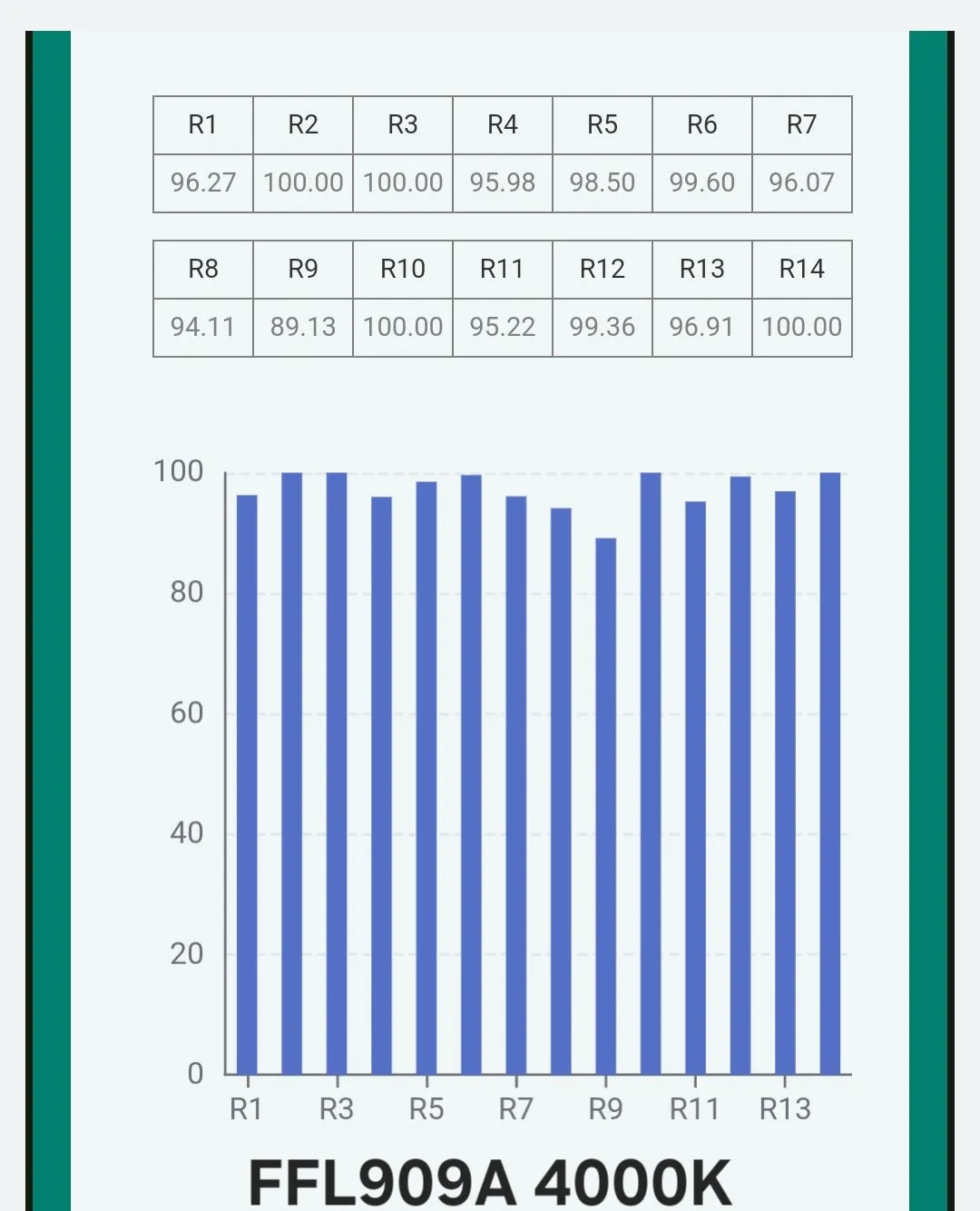

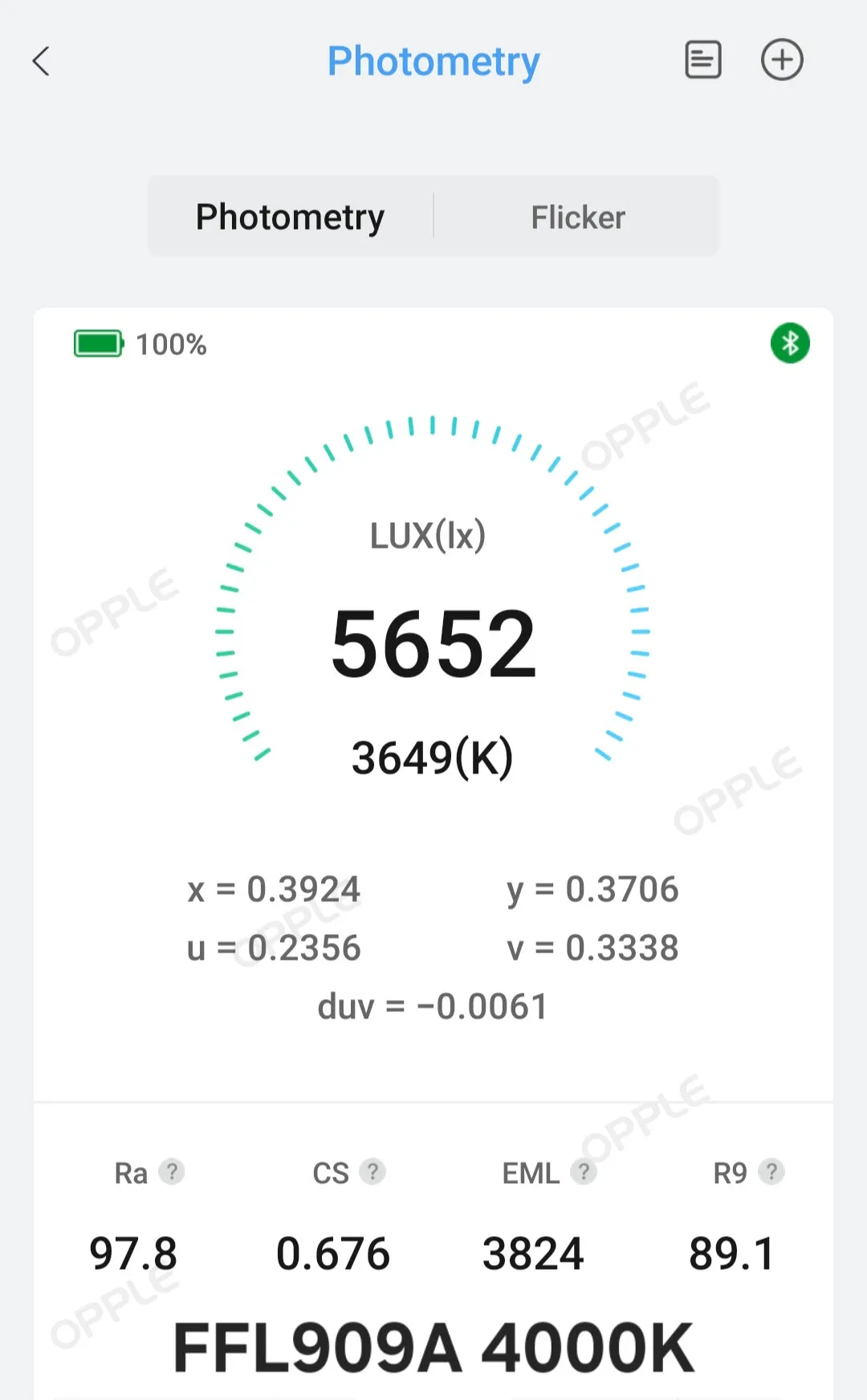

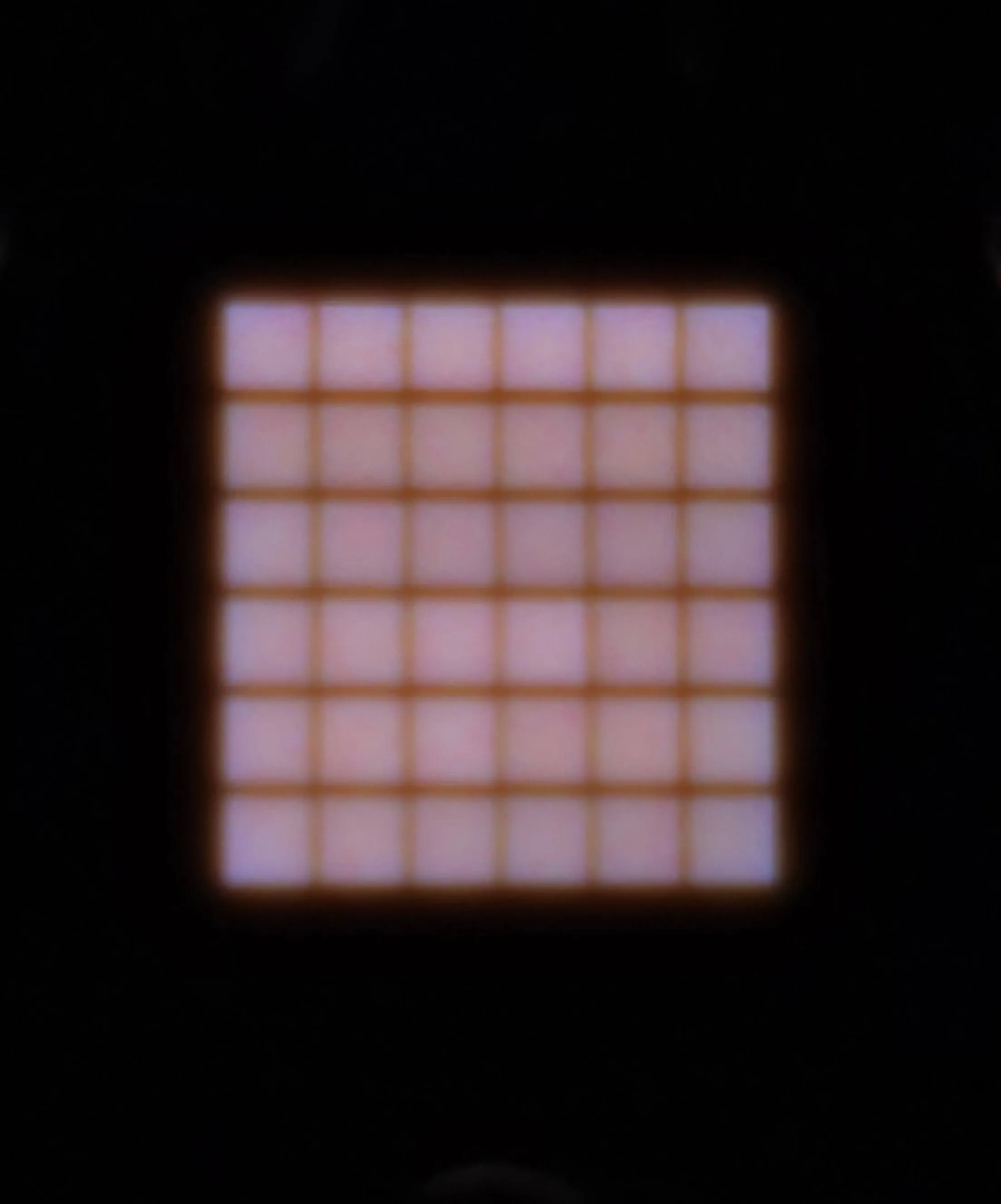

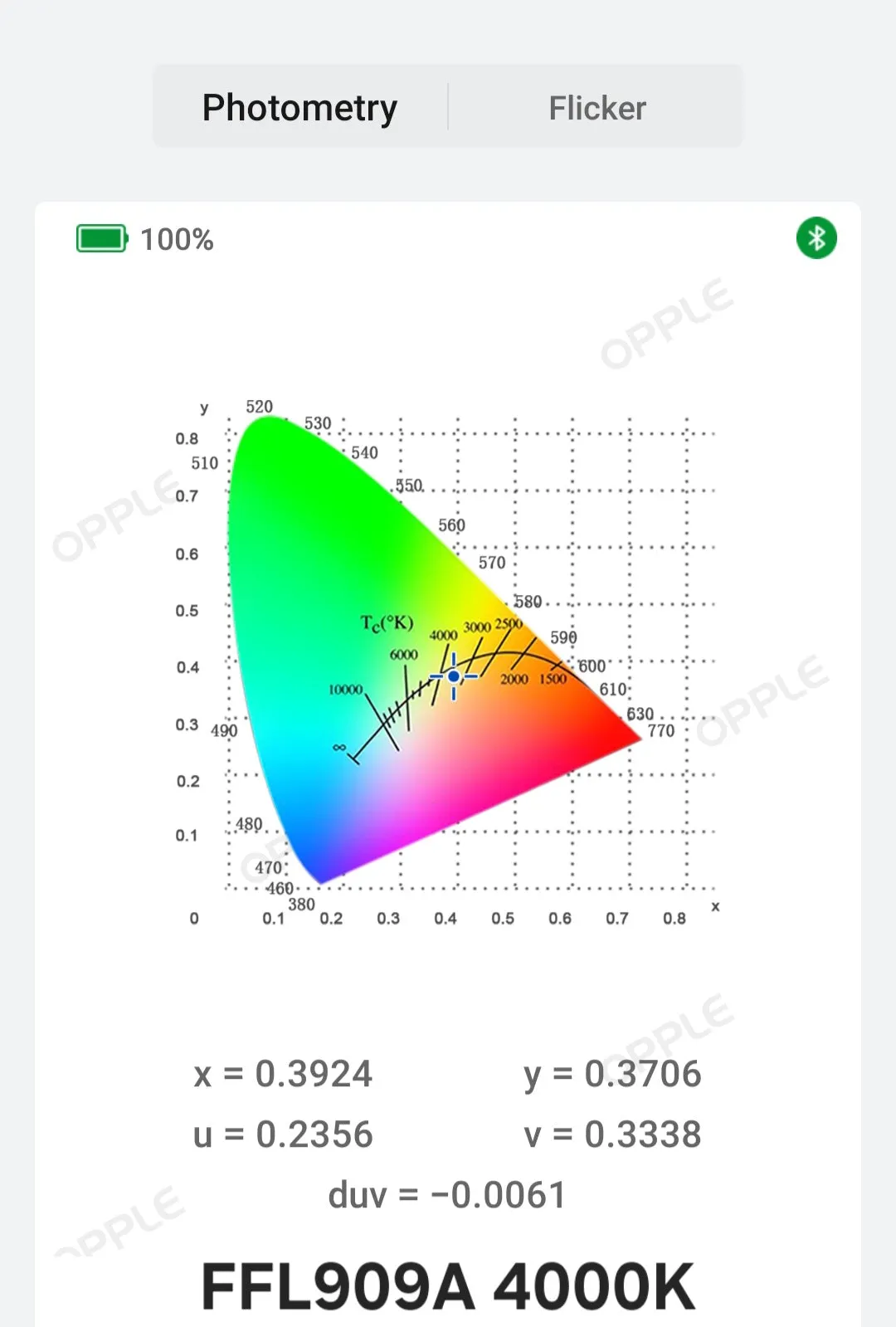

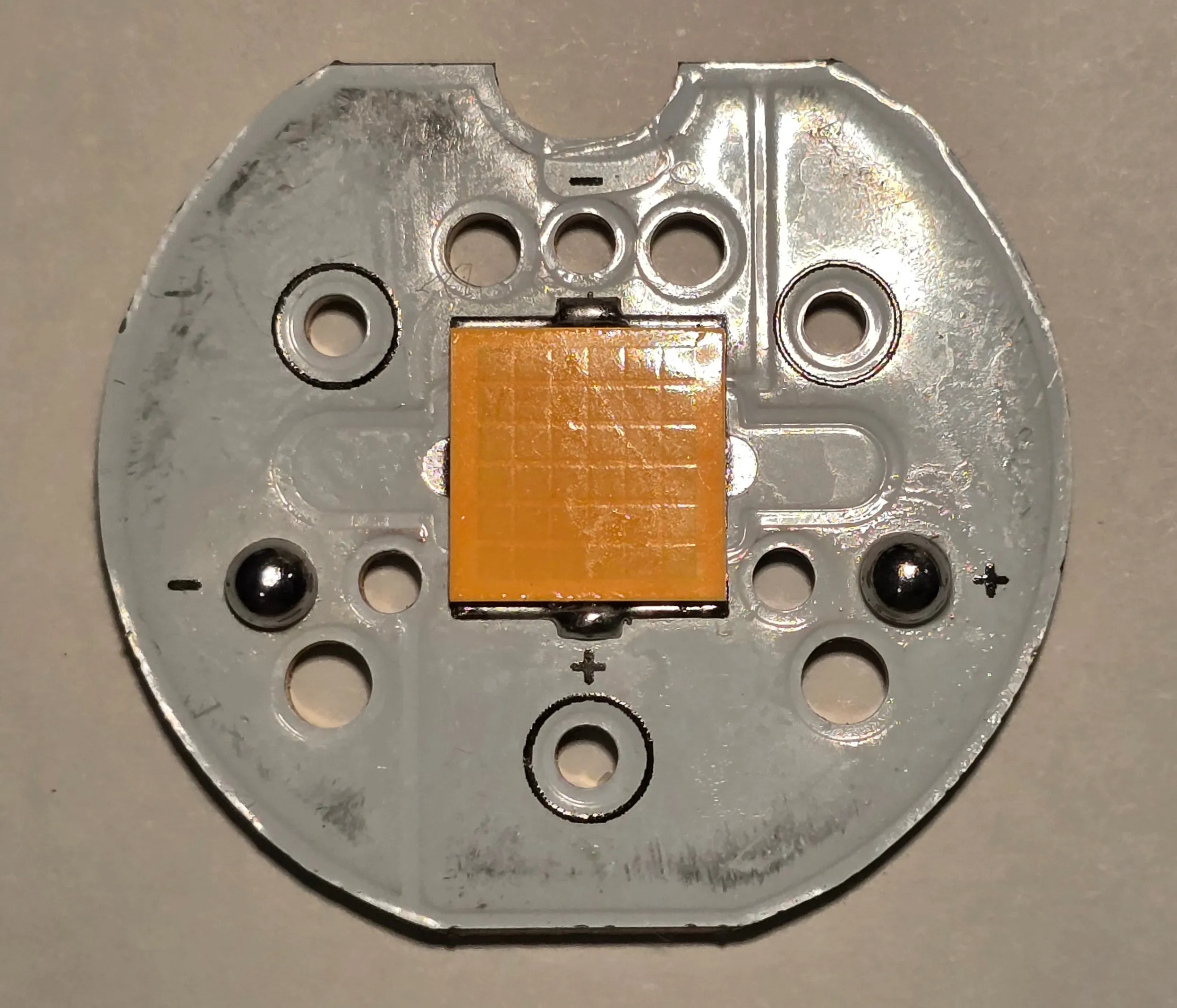

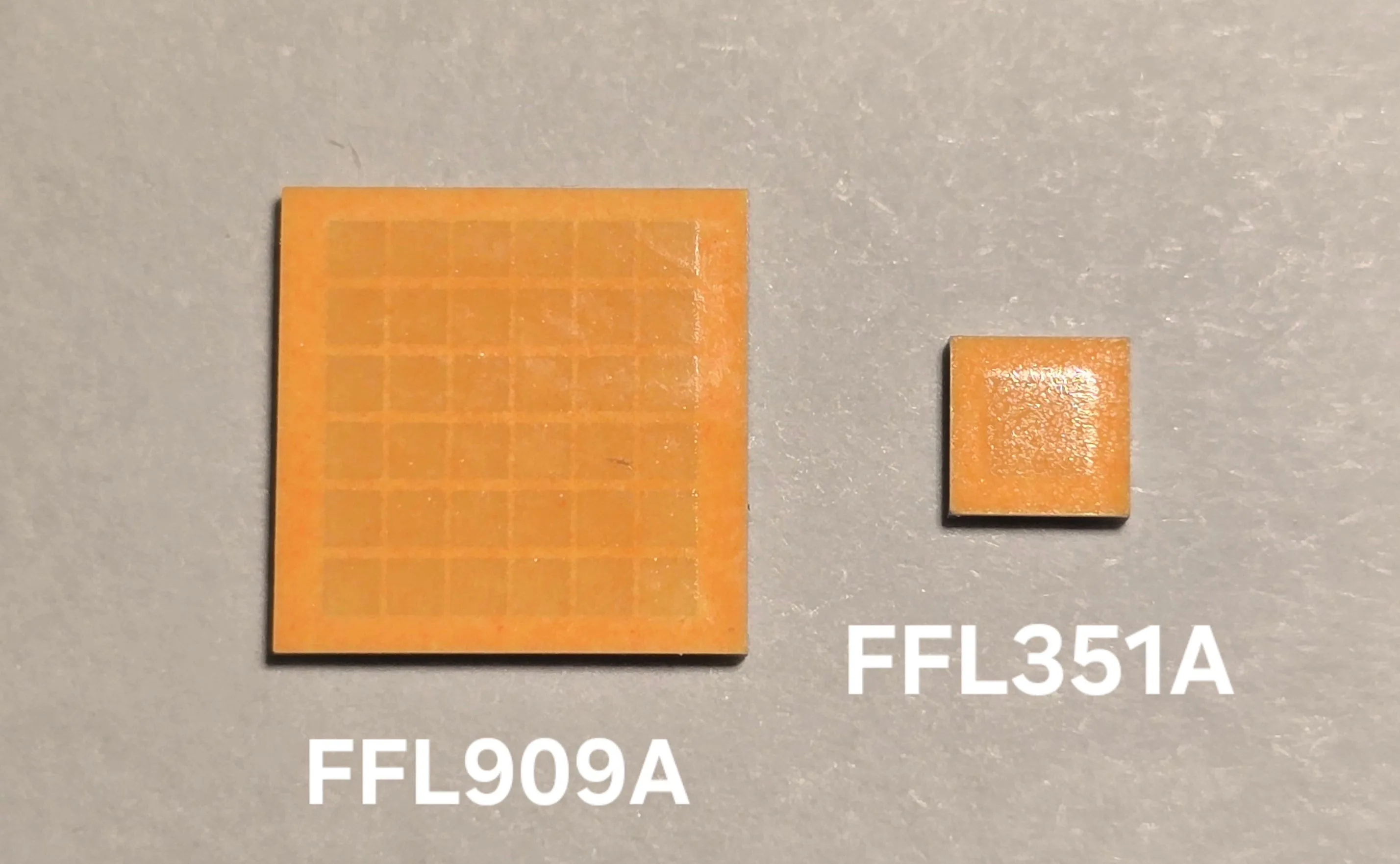

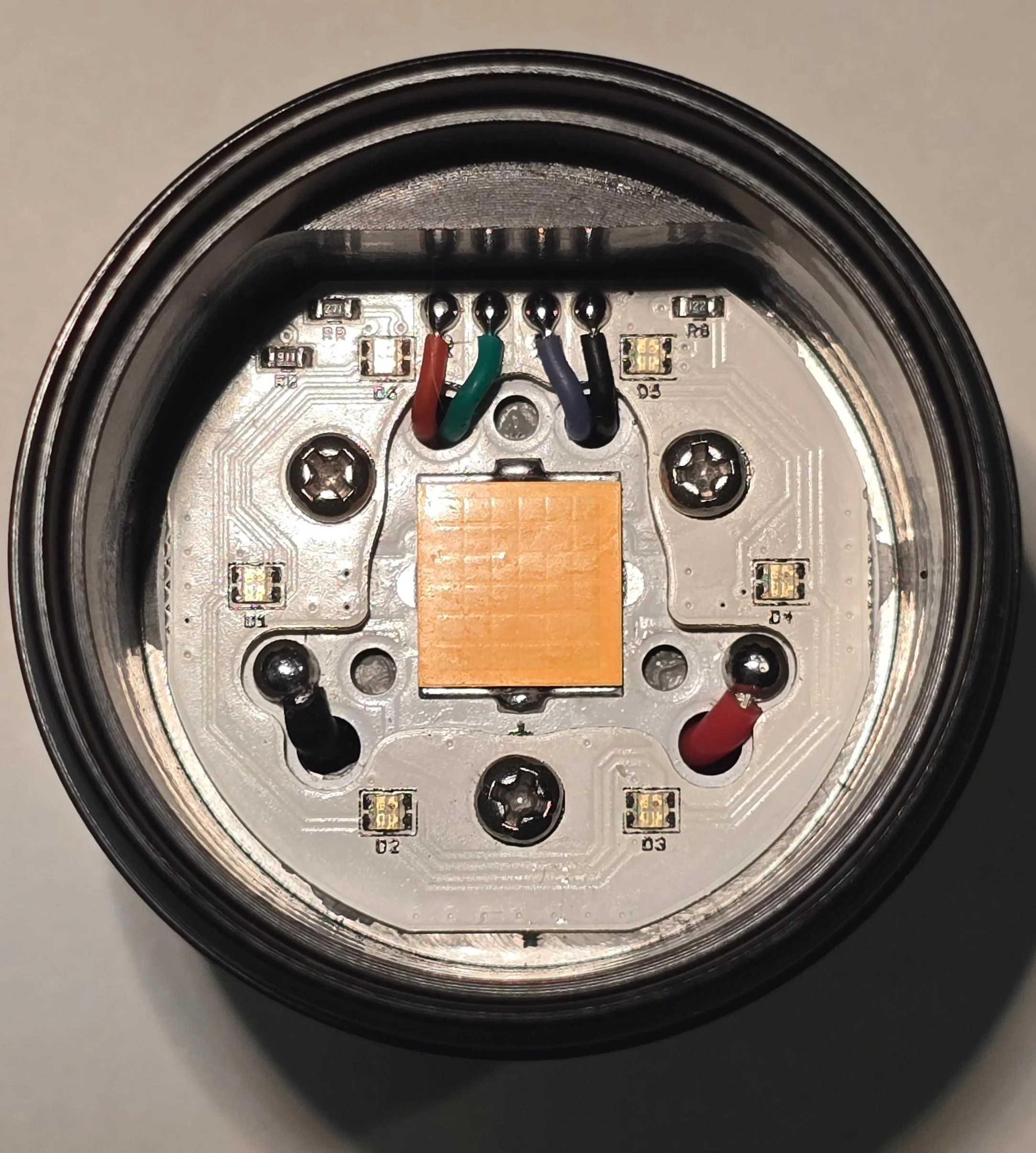

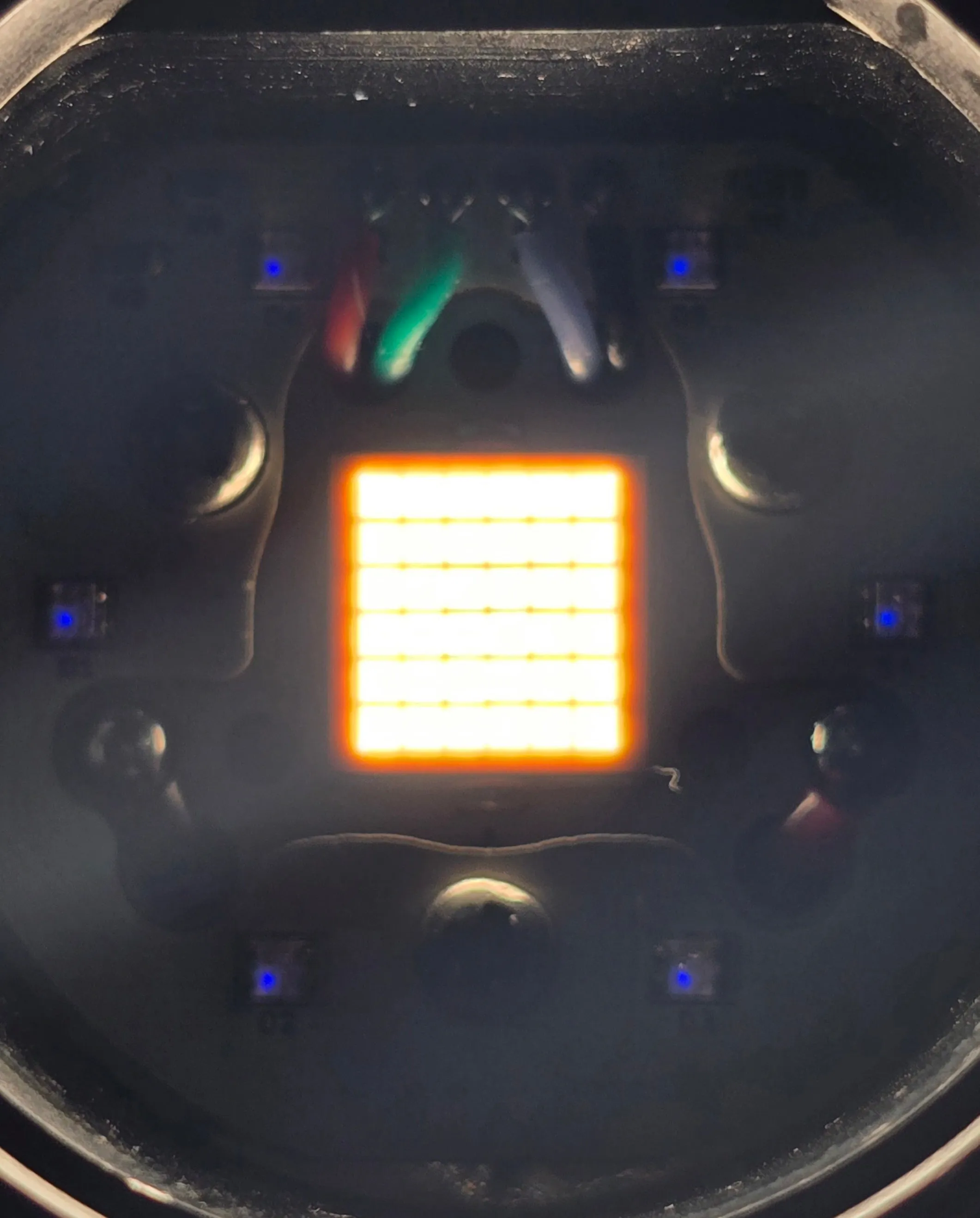

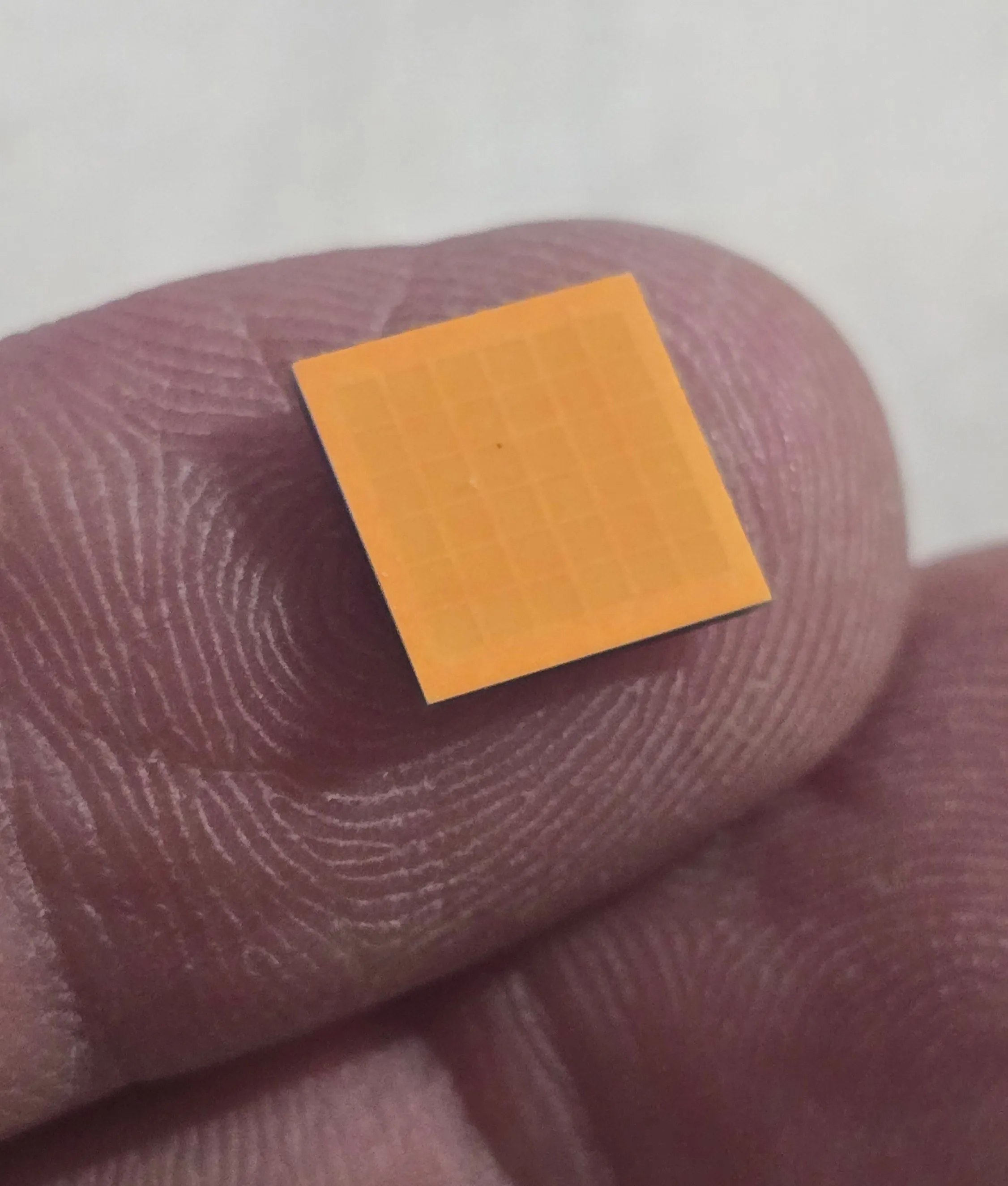

FFL909A SPECS:

9090SMD

9MM X 9MM

VF 2.78V

40A MAX CURRENT

100W

1800K 90CRI 247LM @ 1A 170LM PER WATT

4000K 92 CRI ROSY BIN 313LM @ 1A 113LM PER WATT

5000K 70CRI 475LM @ 1A 170LM PER WATT
