| Product Attribute | Attribute Value |
|---|---|
| Color | Black |
| Diameter, Base | 70 mm |
| Family Name | Harmony XVB Family |
| For Use With | XVE Beacon and Indicator Banks |
| Height | 3.15" (80mm) |
| IP Rating | IP65 |
| Material | Aluminum |

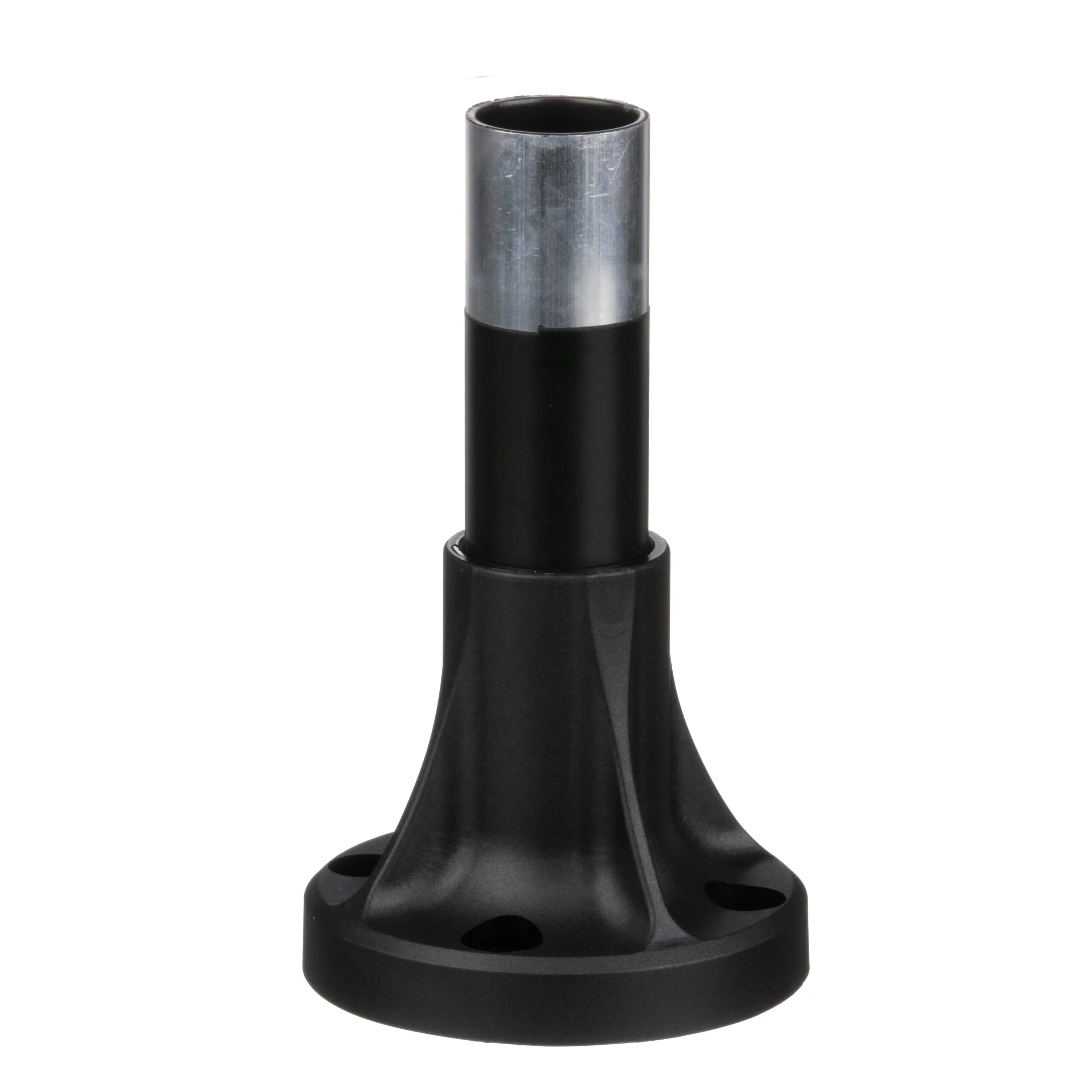

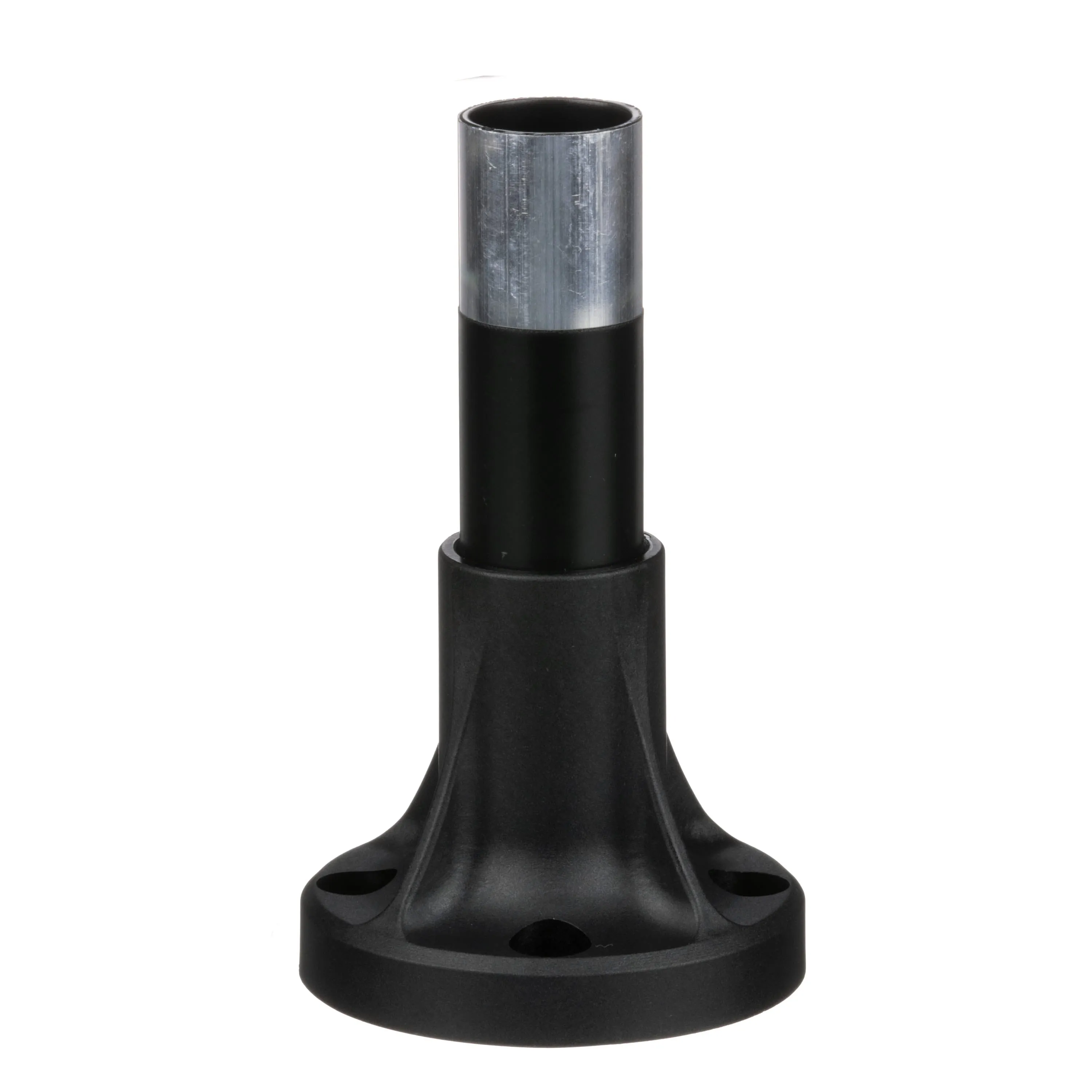

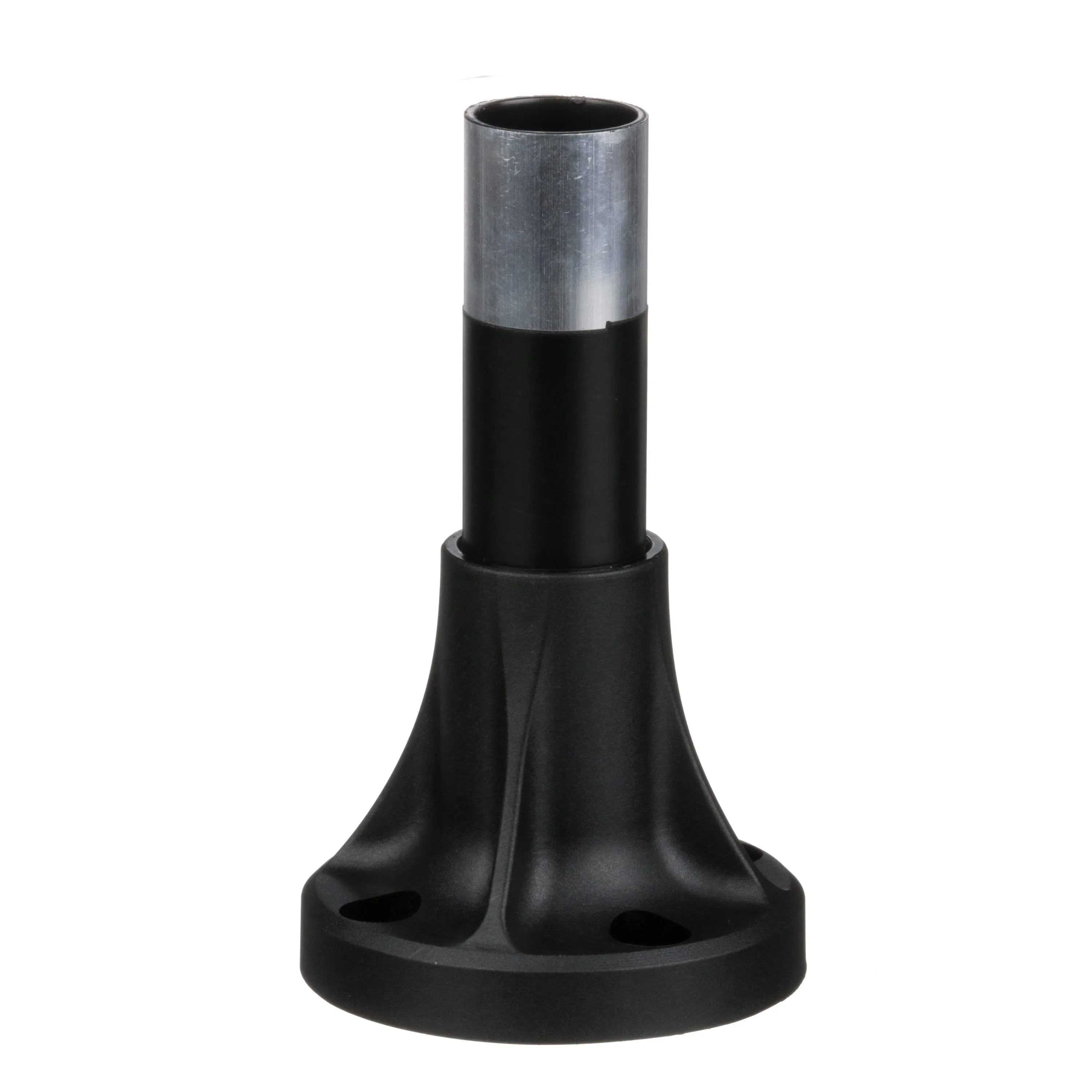

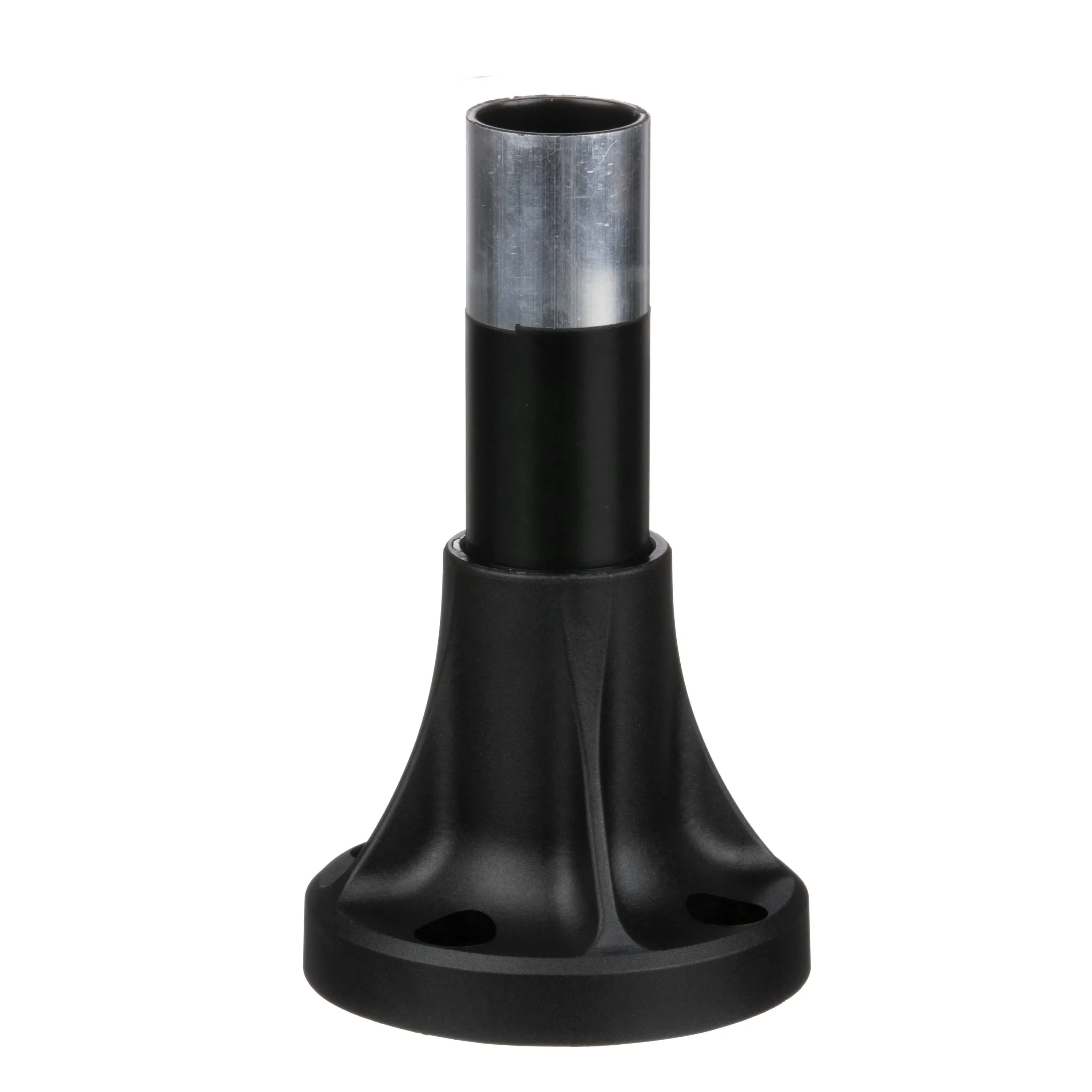

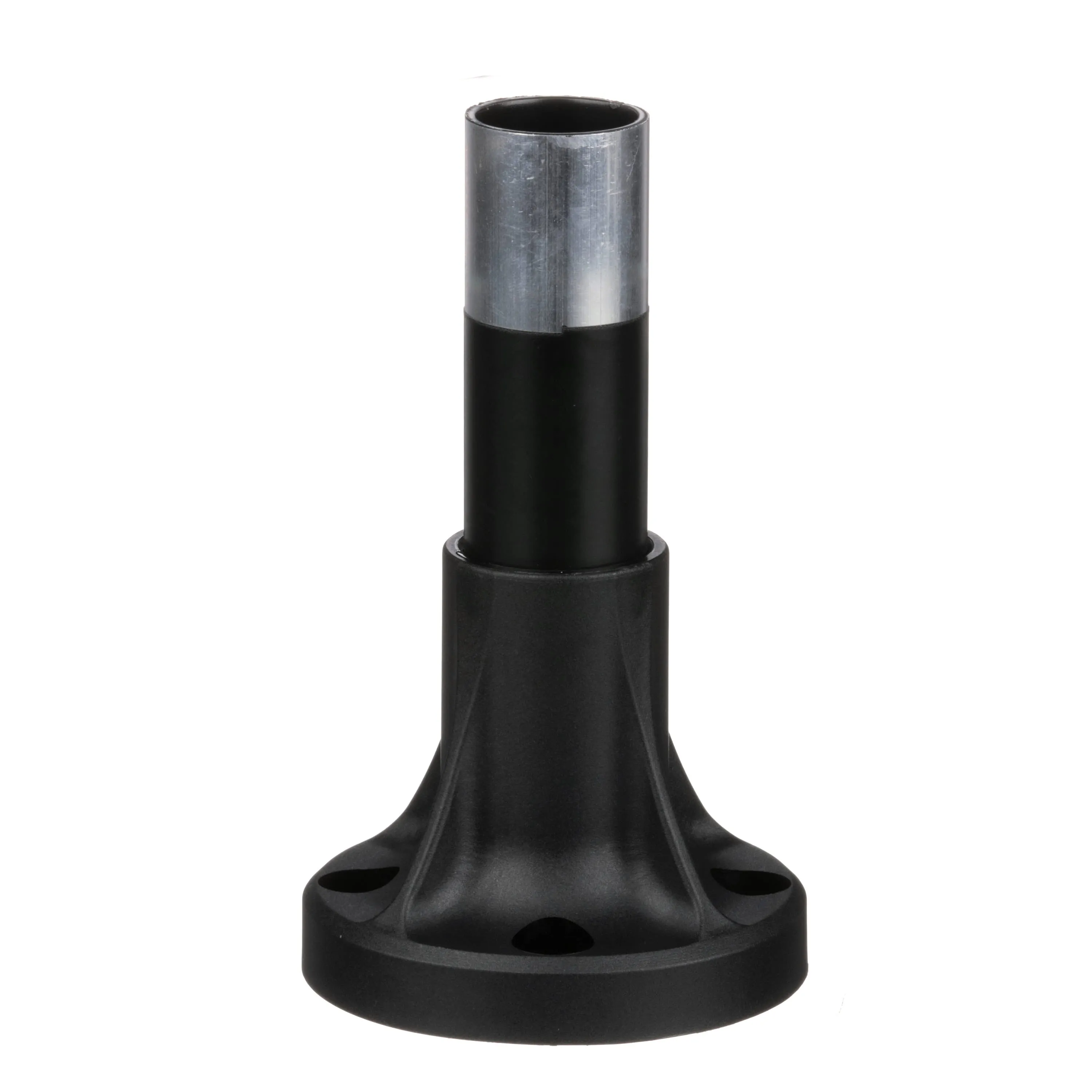

| Primary Type | Mounting Base |
| Series | |
| UPC Code | 785901673576 |
Overview
Schneider Harmony® XVB Series — Light Towers | 70 mm modular beacons and tower lights, with steady or flashing lights, and with incandescent or LED illumination:
The beacons and tower lights of the Harmony® XVB range are visual or audible signaling units used for indicating, throughout 360° and at a distance, the various states or operation sequences of a machine or installation. Examples: start, stop machine, no material, call technical staff, fault signaling, etc.
Complete illuminated beacon XVBL readily assembled 1 with a single illuminated signaling unit:
— Steady light (with incandescent bulb or LED)
— Flashing light (with incandescent bulb or LED)
— Or “flash" (with discharge tube)
The XVBL beacons comprise:
— A base unit with a removable terminal block and a bottom or side cable entry
— One colored illuminated unit (green, red, orange, blue, clear or yellow)
Features:
Applications:
