Product Details
＋
Description

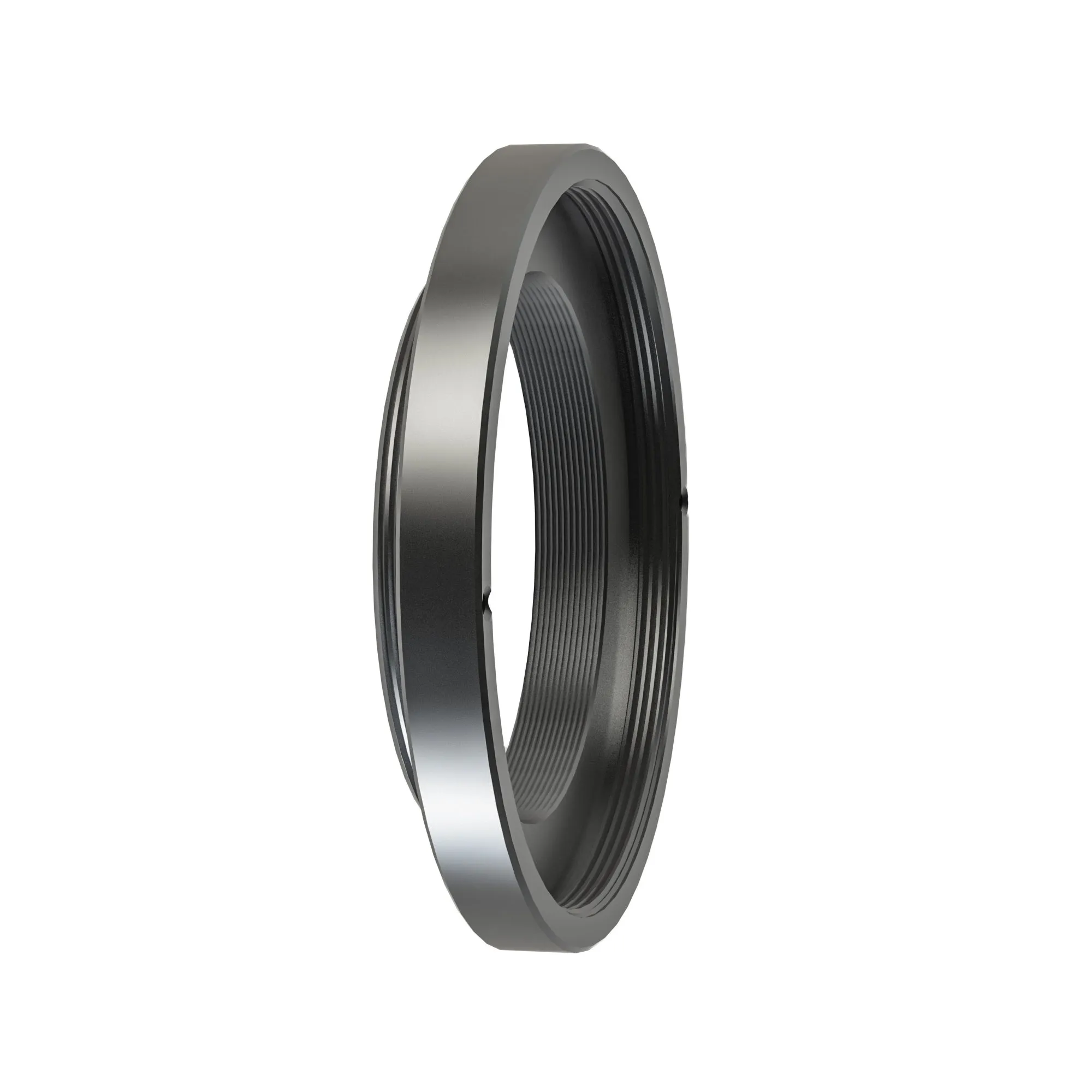

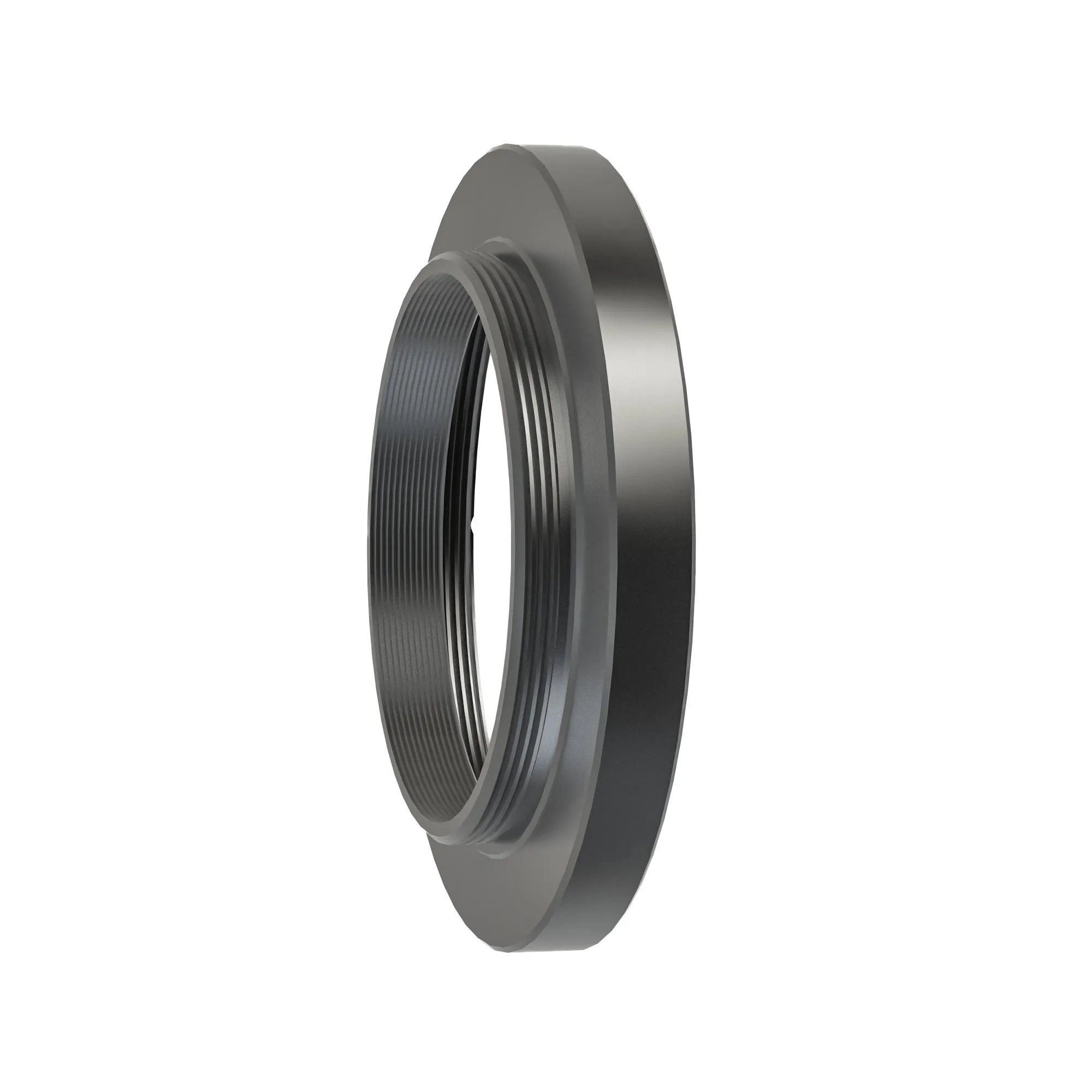

Expansion Ring M55ext to M68int

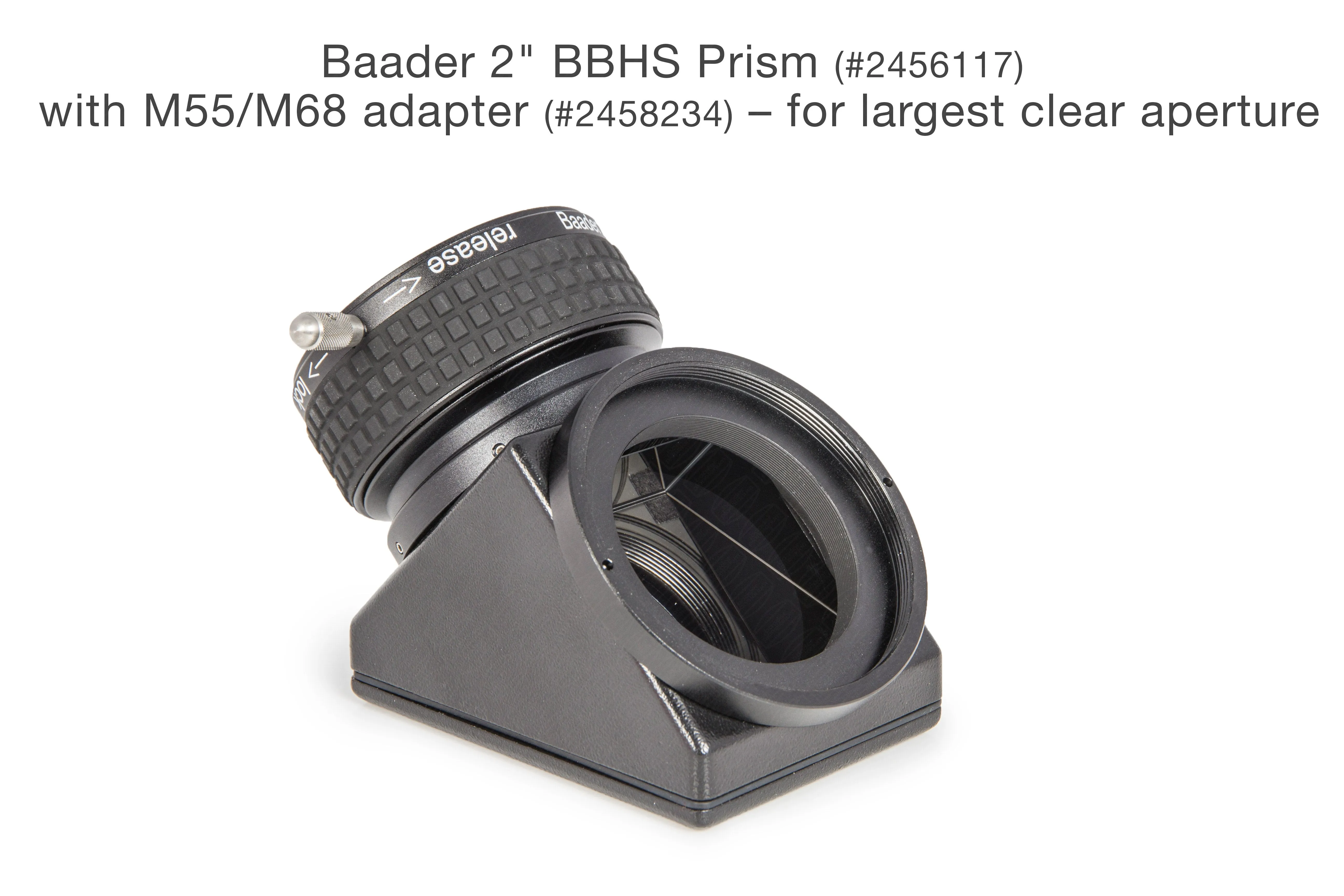

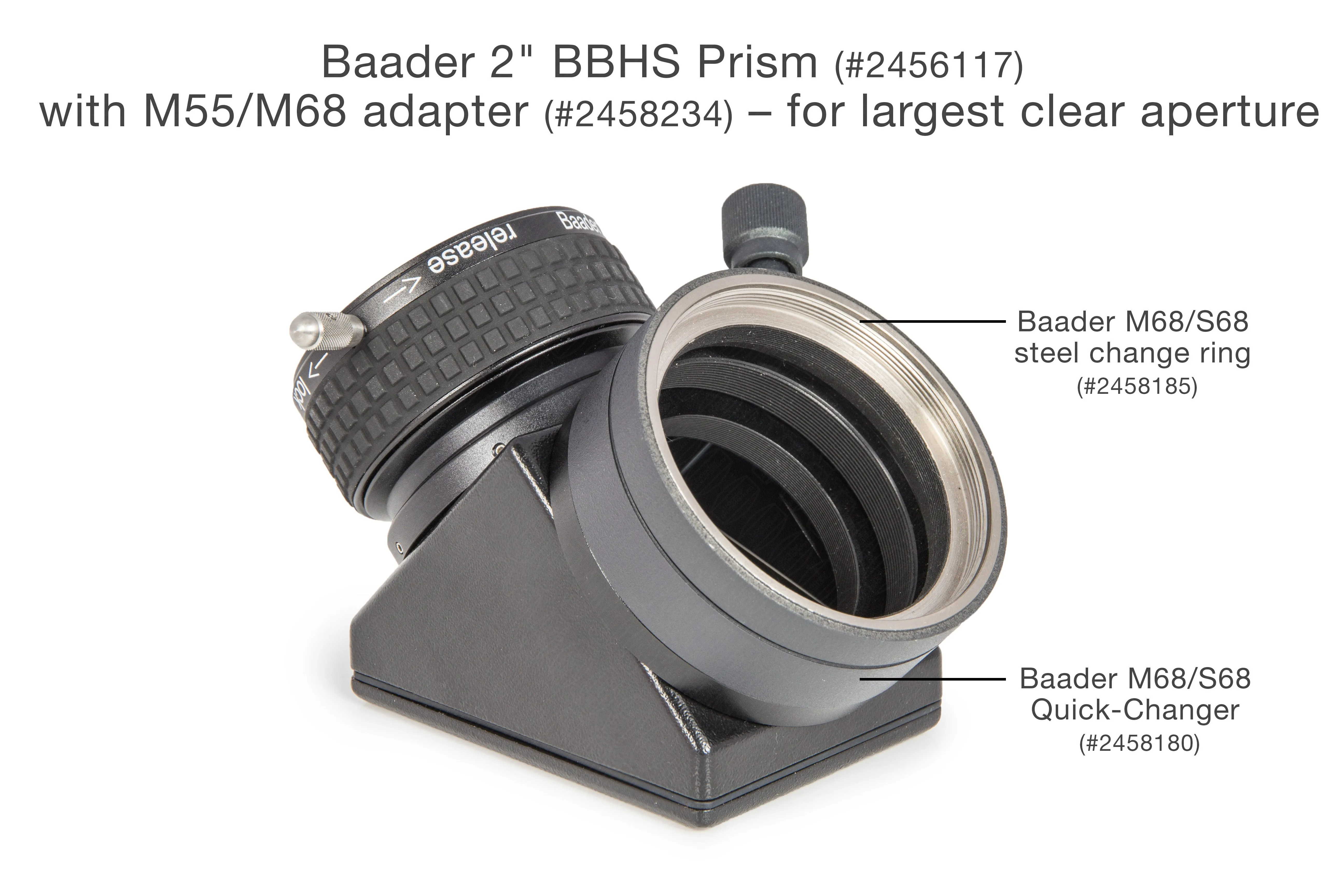

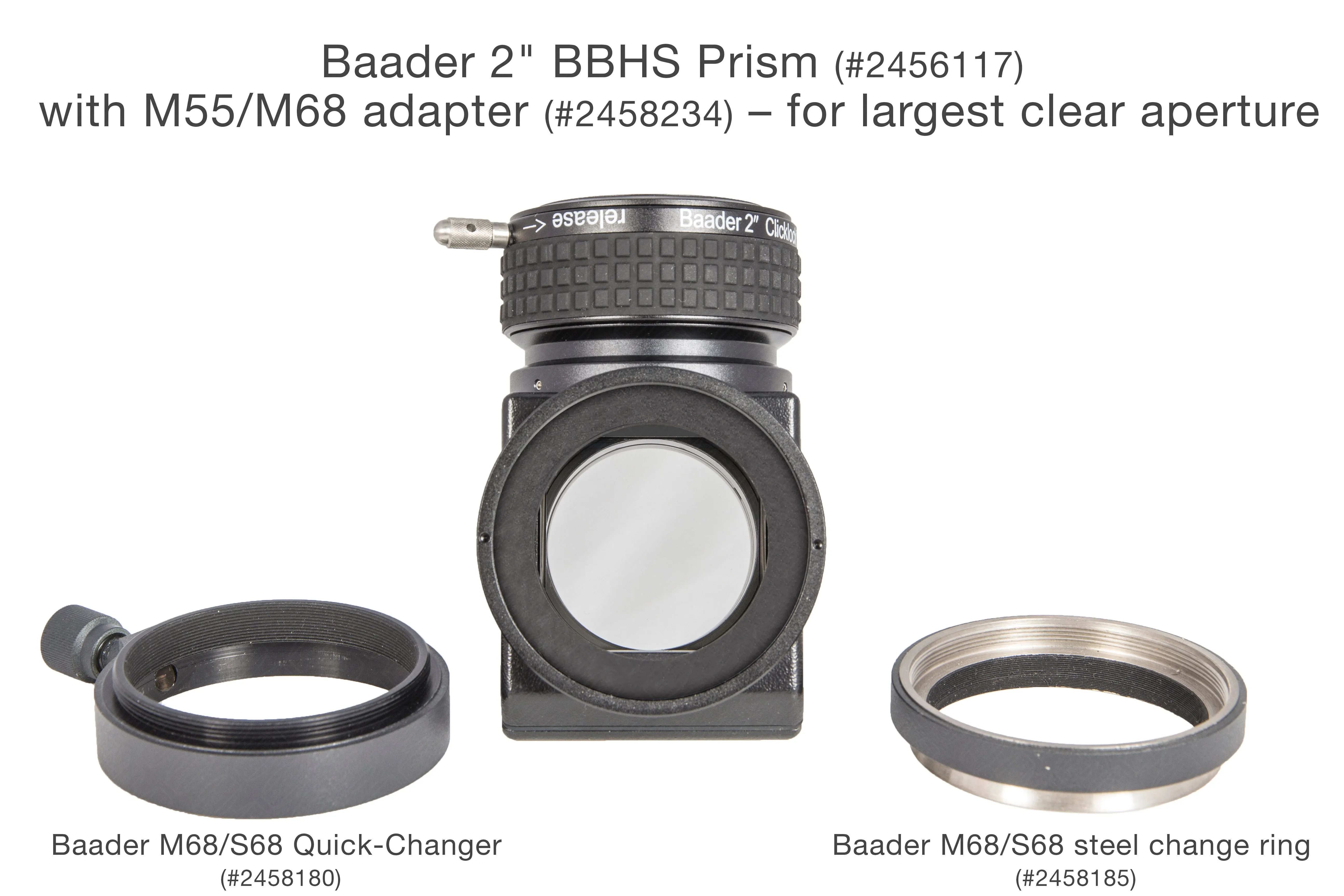

This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 internal thread (# 2456120) to M68 internal thread. This allows you to integrate the diagonal into a larger 68mm light path without choking down the aperture.
To attach the adapter to your mirror you must first remove the 2" nosepiec and the M55 / 2" UNC threaded ring from the housing of the diagonal. We recommend using spanner wrench # 2450062.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2458234 |
| EAN CODE | 4047825039187 |
| OPTICAL LENGTH (MM) | 8 |
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 |
| WEIGHT (KG) | 0.030 |
| OUTER CONNECTION (LENS SIDED) | Thread, M55 |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M68 x 1 |
| COMPATIBLE BRANDS | Baader Planetarium |
| TYPE OF ADAPTER | Reducing piece |
